Pinpoint Test E: The Instrument Panel Illumination Does Not Dim

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. E1 RETRIEVE DTCS FROM THE INSTRUMENT CLUSTER
    • Use the recorded results from the instrument cluster self-test.
    • Are any DTCs retrieved?
      1. Yes  : If DTC B1246, GO to  E3.

        If DTC B1342, GO to  E6.

      2. No  : GO to E2.
  2. E2 CHECK THE INSTRUMENT PANEL DIMMER SWITCH - MONITOR THE INSTRUMENT CLUSTER PID
    • Connect the diagnostic tool.
    • Key in ON position.
    • Enter the following diagnostic mode on the diagnostic tool: Instrument Cluster PID
    • Turn the headlamps on.
    • Select and monitor the instrument cluster PID DSWSTAT while rotating the instrument panel dimmer switch from the lowest position to the highest position.
    • Does the PID value agree with the instrument panel dimmer switch position?
      1. Yes  : GO to  E7.
      2. No  : GO to E3.
  3. E3 CHECK CIRCUIT 8-LE10 (WH/BK) FOR AN OPEN OR A SHORT TO GROUND
    • Key in OFF position.
    • Turn the headlamps off.
    • Disconnect: Instrument Panel Dimmer Switch C206.
    • Disconnect: Instrument Cluster C220c.
    • Measure the resistance between the instrument cluster C220c-16, circuit 8-LE10 (WH/BK), harness side and the instrument panel dimmer switch C206-6, circuit 8-LE10 (WH/BK), harness side and; and between the instrument cluster C220c-16, circuit 8-LE10 (WH/BK), harness side and ground.

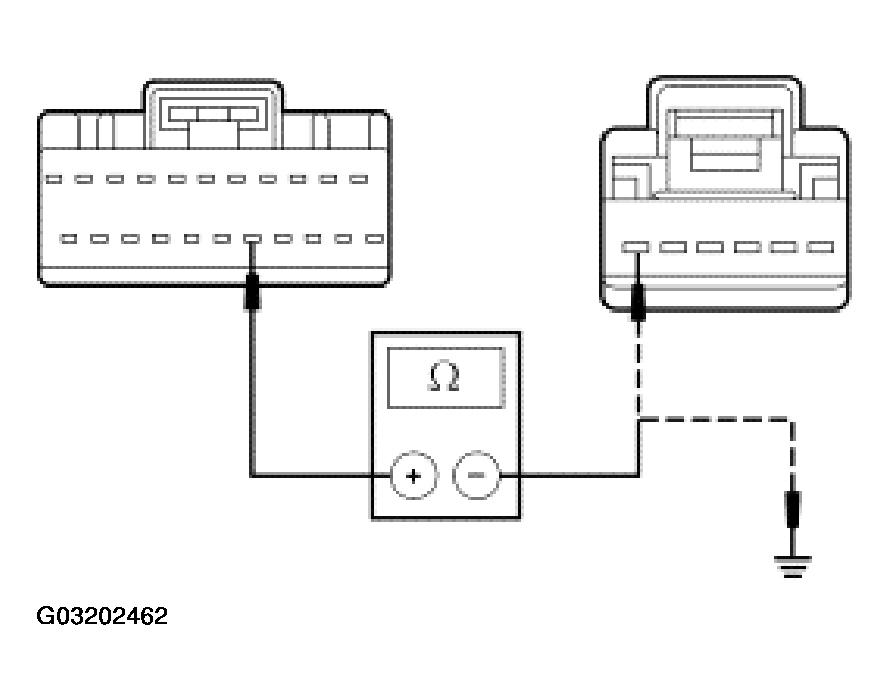

      Fig 1: Measuring Resistance Between Instrument Cluster C220C-16, Circuit 8-LE10 (WH/BK), Harness Side
      G03202462Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms between the instrument panel dimmer switch and instrument cluster; and greater than 10,000 ohms between the instrument panel dimmer switch and ground?
      1. Yes  : GO to E4.
      2. No  : REPAIR the circuit. TEST the system for normal operation.
  4. E4 CHECK CIRCUIT 9-LE10 (BN/YE) FOR AN OPEN OR SHORT TO GROUND
    • Measure the resistance between the instrument panel dimmer switch C206-4, circuit 9-LE10 (BN/YE), harness side and the instrument cluster C220c-4, circuit 9-LE10 (BN/YE), harness side; and between the instrument panel dimmer switch C206-4, circuit 9-LE10 (BN/YE), harness side and ground.

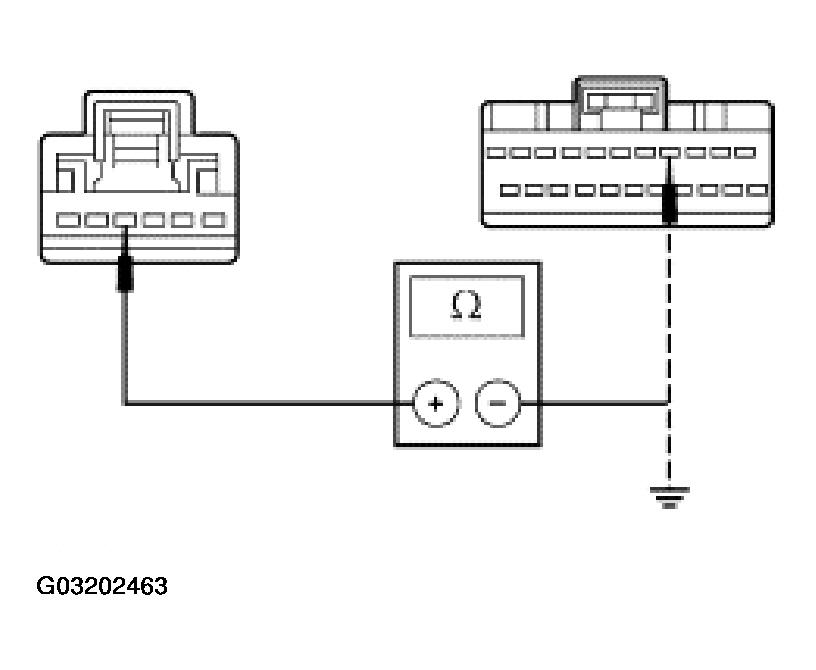

      Fig 2: Measuring Resistance Between Instrument Panel Dimmer Switch C206-4, Circuit 9-LE10 (BN/YE), Harness Side
      G03202463Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms between the instrument panel dimmer switch and instrument cluster; and greater than 10,000 ohms between the instrument panel dimmer switch and ground?
      1. Yes  : GO to E5.
      2. No  : REPAIR the circuit. TEST the system for normal operation.
  5. E5 CHECK CIRCUITS 8-LE10 (WH/BK) AND 9-LE10 (BN/YE) FOR A SHORT TO POWER
    • Key in ON position.
    • Measure the voltage between the instrument panel dimmer switch C206-6, circuit 8-LE10 (WH/BK), harness side and ground; and between the instrument panel dimmer switch C206-4, circuit 9-LE10 (BN/YE), harness side and ground.

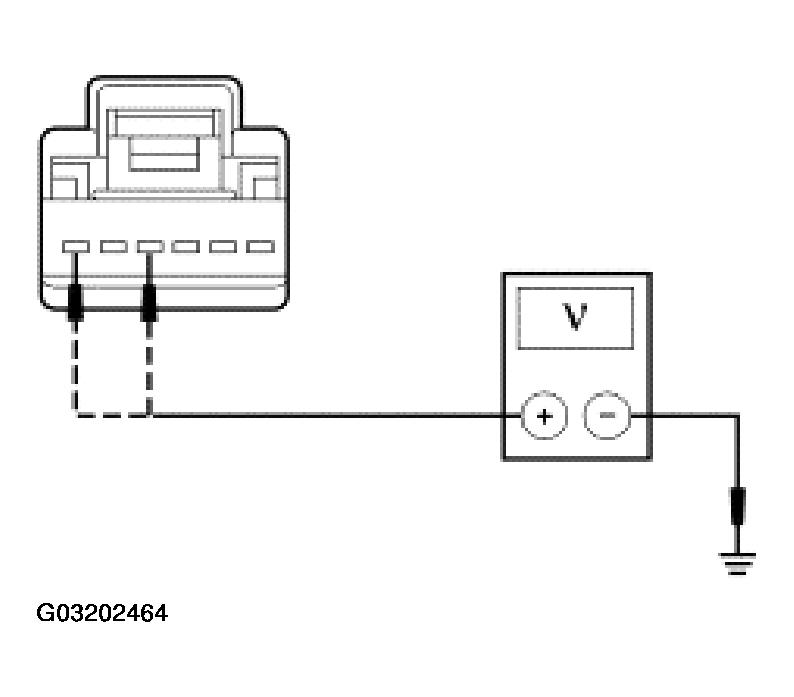

      Fig 3: Measuring Voltage Between Instrument Panel Dimmer Switch C206-6, Circuit 8-LE10 (WH/BK), Harness Side And Ground
      G03202464Courtesy of FORD MOTOR CO.
    • Is any voltage indicated?
      1. Yes  : REPAIR the circuit(s) in question. TEST the system for normal operation
      2. No  : GO to E6.
  6. E6 CHECK THE INSTRUMENT PANEL DIMMER SWITCH
    • Key in OFF position.
    • Measure the resistance between the instrument panel dimmer switch C206-4, circuit 9-LE10 (BN/YE), component side and the instrument panel dimmer switch C206-6, circuit 8-LE10 (WH/BK), component side.

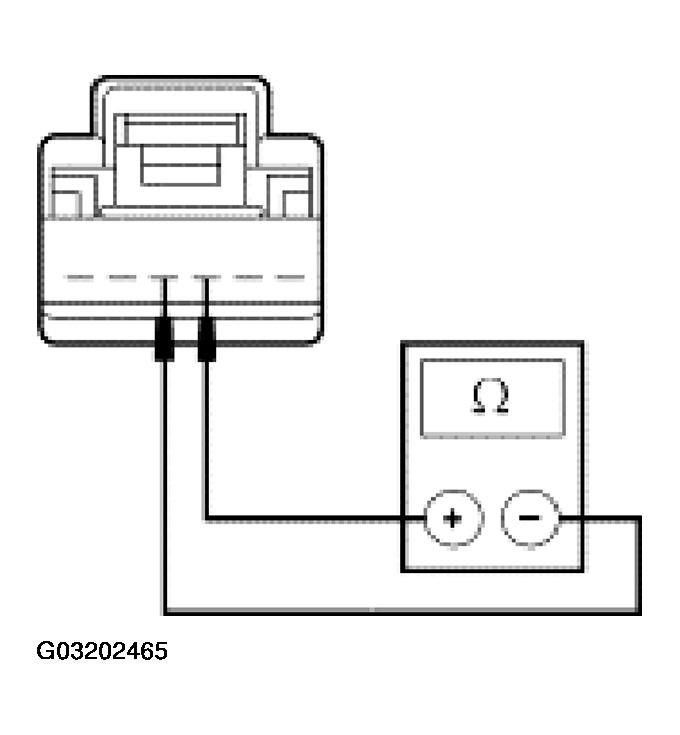

      Fig 4: Measuring Resistance Between Instrument Panel Dimmer Switch C206-4, Circuit 9-LE10 (BN/YE), Component Side
      G03202465Courtesy of FORD MOTOR CO.
    • Rotate the instrument panel dimmer switch from the minimum brightness level to the maximum brightness level.
    • Does the resistance begin at approximately 1k ohm at the minimum brightness level and move to approximately 10,000k ohms at the maximum brightness level?
      1. Yes  : GO to  E8.
      2. No  : INSTALL a new instrument panel dimmer switch. REFER to INSTRUMENT CLUSTER AND PANEL ILLUMINATION . TEST the system for normal operation.
  7. E7 CHECK FOR CORRECT FEM OPERATION
    • Disconnect all the FEM connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all the FEM connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
      1. Yes  : INSTALL a new FEM. REFER to MODULE COMMUNICATIONS NETWORK . TEST the system for normal operation.
      2. No  : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
  8. E8 CHECK FOR CORRECT INSTRUMENT CLUSTER OPERATION
    • Disconnect all the instrument cluster connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all the instrument cluster connectors and make sure they seat correctly.
    • Is the concern still present?
      1. Yes  : INSTALL a new instrument cluster. REFER to INSTRUMENT CLUSTER . TEST the system for normal operation.
      2. No  : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. CLEAR the DTC's. REPEAT the self-test.
