Pinpoint Test B: The Control Illumination Is Inoperative

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. B1 CHECK CIRCUIT 64S-LH5 (BU/RD) FOR POWER
    • Disconnect: Interior Auxiliary Junction Box C283a.
    • Turn the headlamps on.
    • Place the dimmer switch in the maximum brightness position.
    • Measure the voltage between the interior auxiliary junction box C283a-9, circuit 64S-LH5 (BU/RD), harness side and ground.

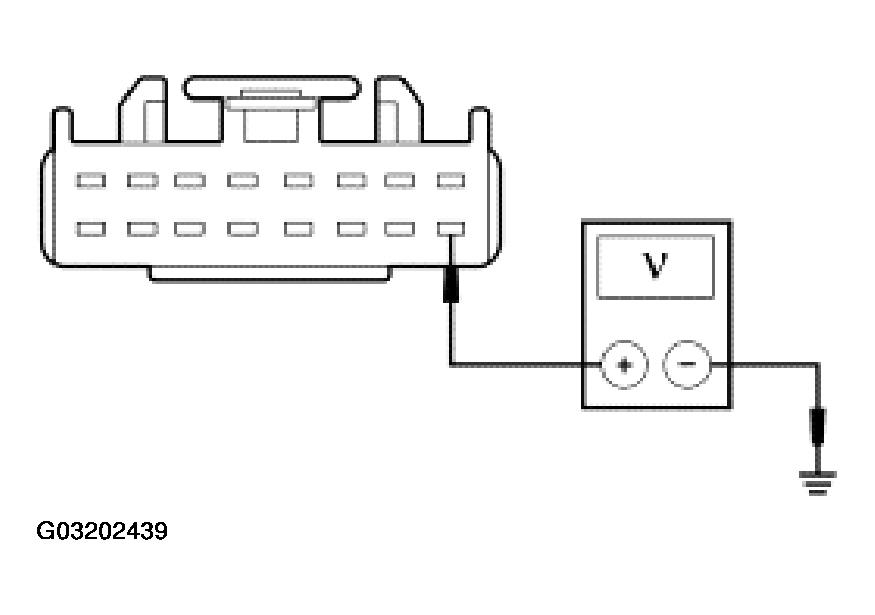

      Fig 1: Measuring Voltage Between Interior Auxiliary Junction Box C283A-9, Circuit 64S-LH5 (BU/RD), Harness Side And Ground
      G03202439Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
      1. Yes  : GO to B2.
      2. No  : GO to  B12.
  2. B2 CHECK THE INTERIOR AUXILIARY JUNCTION BOX FOR OPEN OR SHORT TO GROUND
    • Turn the headlamps off.
    • Disconnect: Interior Auxiliary Junction Box C283b.
    • Disconnect: Interior Auxiliary Junction Box C283d.
    • Measure the resistance between the interior auxiliary junction box C283a-9, circuit 64S-LH5 (BU/RD), component side and the interior auxiliary junction box C283b-9, circuit 64S-LH4 (BU/RD), component side; and between the interior auxiliary junction box C283a-9, circuit 64S-LH5 (BU/RD), component side and ground.

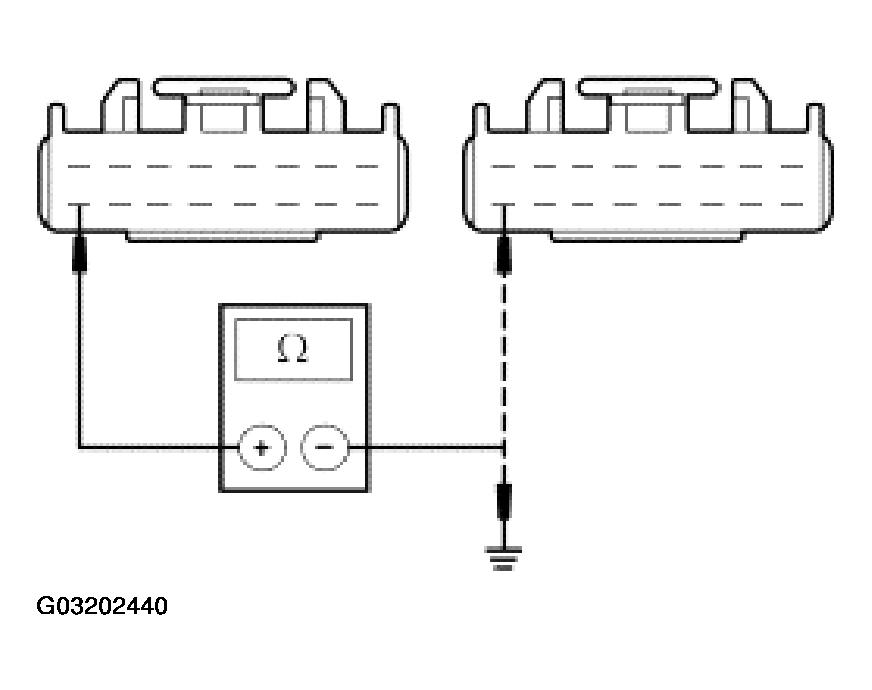

      Fig 2: Measuring Resistance Between Interior Auxiliary Junction Box C283A-9, Circuit 64S-LH5 (BU/RD), Component Side
      G03202440Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms between the interior auxiliary junction box pins; and greater than 10,000 ohms between the interior auxiliary junction box and ground?
      1. Yes  : GO to B3.
      2. No  : REPAIR or INSTALL a new interior auxiliary junction box. TEST the system for normal operation.
  3. B3 CHECK CIRCUIT 64S-LH4 (BU/RD) FOR SHORT TO GROUND
    • Measure the resistance between the interior auxiliary junction box C283b-9, circuit 64S-LH4 (BU/RD), harness side and ground.

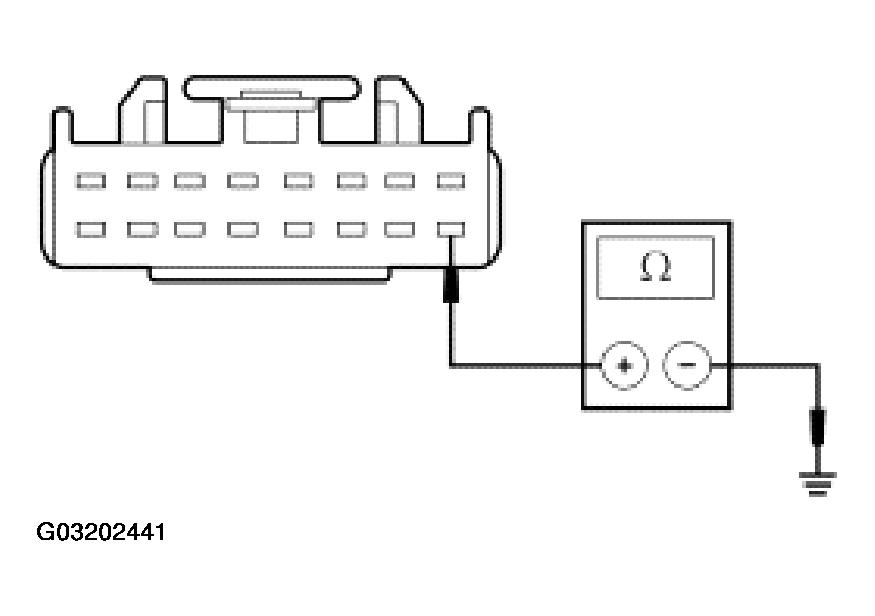

      Fig 3: Measuring Resistance Between Interior Auxiliary Junction Box C283B-9, Circuit 64S-LH4 (BU/RD), Harness Side And Ground
      G03202441Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?
      1. Yes  : GO to B4.
      2. No  : REPAIR the circuit. TEST the system for normal operation.
  4. B4 CHECK THE INTERIOR AUXILIARY JUNCTION BOX FOR SHORT TO GROUND
    • Measure the resistance between the interior auxiliary junction box C283a-13, circuit 64S-LH4 (BU/RD), component side and ground

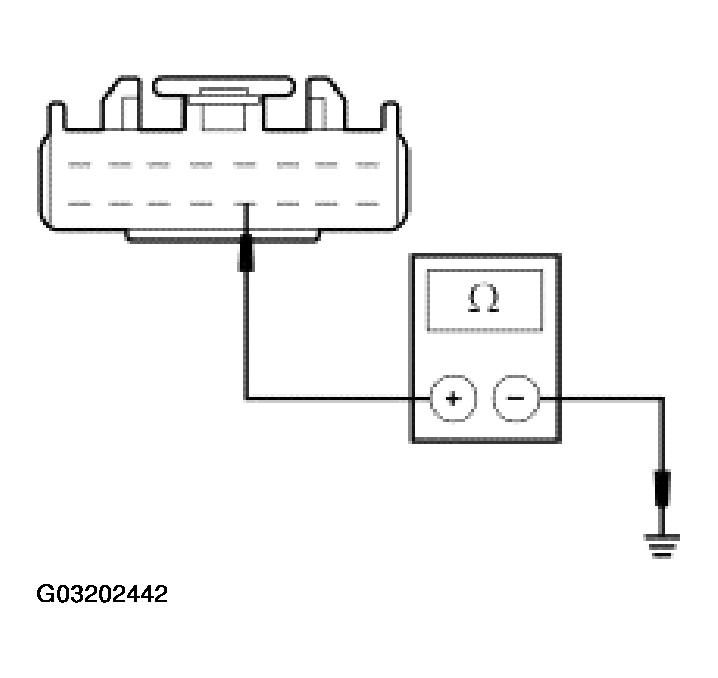

      Fig 4: Measuring Resistance Between Interior Auxiliary Junction Box C283A-13, Circuit 64S-LH4 (BU/RD), Component Side And Ground
      G03202442Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?
      1. Yes  : GO to B5.
      2. No  : REPAIR or INSTALL a new interior auxiliary junction box. TEST the system for normal operation.
  5. B5 CHECK CIRCUIT 64S-LK9 (BU/RD) FOR SHORT TO GROUND
    • Connect a fused (5A) jumper wire between the interior auxiliary junction box C283a-9, circuit 64S-LH4 (BU/RD), harness side and interior auxiliary junction box C283a-5, circuit 64S-LK9 (BU/RD), harness side.

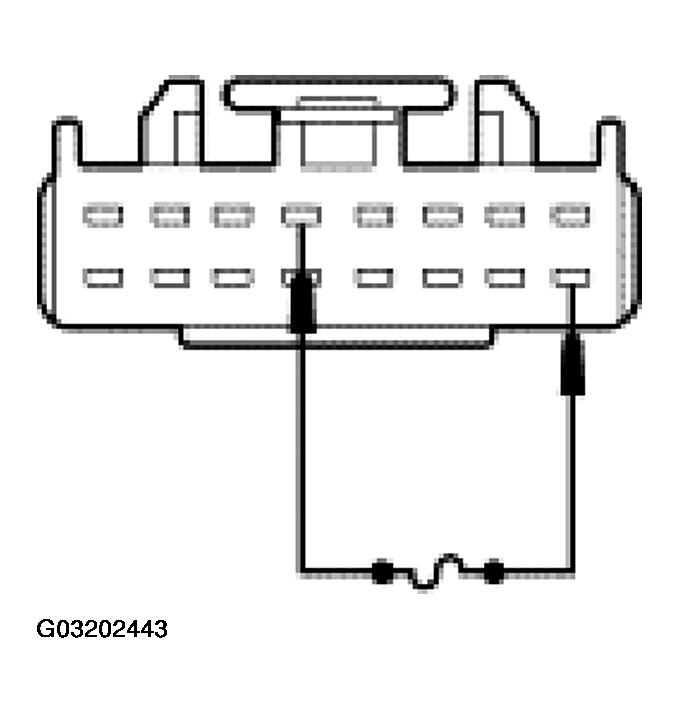

      Fig 5: Connecting Fused (5A) Jumper Wire Between Interior Auxiliary Junction Box C283A-9, Circuit 64S-LH4 (BU/RD), Harness Side
      G03202443Courtesy of FORD MOTOR CO.
    • Turn the headlamps on.
    • Place the dimmer switch in the maximum brightness position.
    • Monitor the cigar lighter, transmission selector lever, traction control (TC) switch, electronic park brake release switch and parking aid switch.
    • Does the cigar lighter, transmission selector lever, TC switch, electronic park brake release switch and parking aid switch illuminate?
      1. Yes  : GO to B6.
      2. No  : REPAIR the followings circuit (s): 64S-LK11 (BU), 64S-LK21 (BU/BK), 64S-LH3 (BU/WH), 64S-LH45 (BU/OG), 64S-CG15 (BU/WH), 64S-LH49 (BU/BK), or 64S-LK9 (BU/RD) for short to ground. TEST the system for normal operation.
  6. B6 CHECK THE ILLUMINATION POWER SUPPLY FOR A SHORT TO GROUND
    • Turn the headlamps off.
    • Connect a fused (5A) jumper wire between the interior auxiliary junction box C283a-9, circuit 64S-LH4 (BU/RD), harness side and interior auxiliary junction boxC283d-13, circuit 64S-LK1 (BU/RD), harness side.

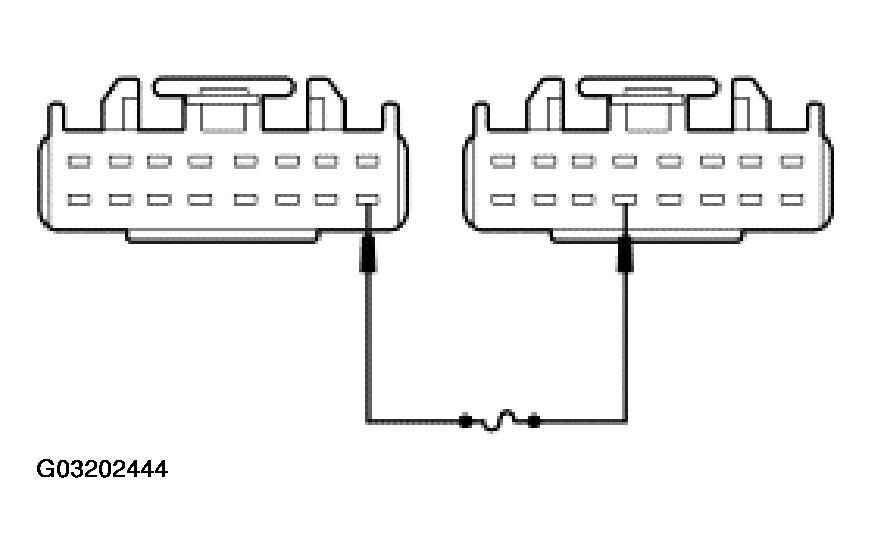

      Fig 6: Connecting Fused (5A) Jumper Wire Between Interior Auxiliary Junction Box C283A-9, Circuit 64S-LH4 (BU/RD), Harness Side
      G03202444Courtesy of FORD MOTOR CO.
    • Turn the headlamps on.
    • Place the dimmer switch in the maximum brightness position.
    • Monitor the adjustable pedal switch, navigation audio unit, instrument cluster, message center, headlamp switch, instrument panel dimmer switch and the steering wheel controls.
    • Does the adjustable pedal switch, navigation audio unit, instrument cluster, message center, headlamp switch, instrument panel dimmer switch and the steering wheel controls illuminate?
      1. Yes  : GO to B7.
      2. No  : REPAIR the following circuit (s): 64S-LK1 (BU/RD), 64S-AL19(BU/BK), 64S-LK34 (BU/BK), 64S-LK29 (BU/RD), 64S-GG25 (BU/OG), 64S-LH26 (BU/BK), 64S-LE10 (BU/YE), or 64-LK18 (BU/RD) for short to ground. TEST the system for normal operation.
  7. B7 CHECK CIRCUIT 64S-AD2 (BU/RD) FOR SHORT TO GROUND
    • Turn the headlamps off.
    • Disconnect: Central Junction Box (CJB) C270d.
    • Measure the resistance between the interior auxiliary junction box C283b-11, circuit 64S-AD2 (BU/RD), harness side and ground.

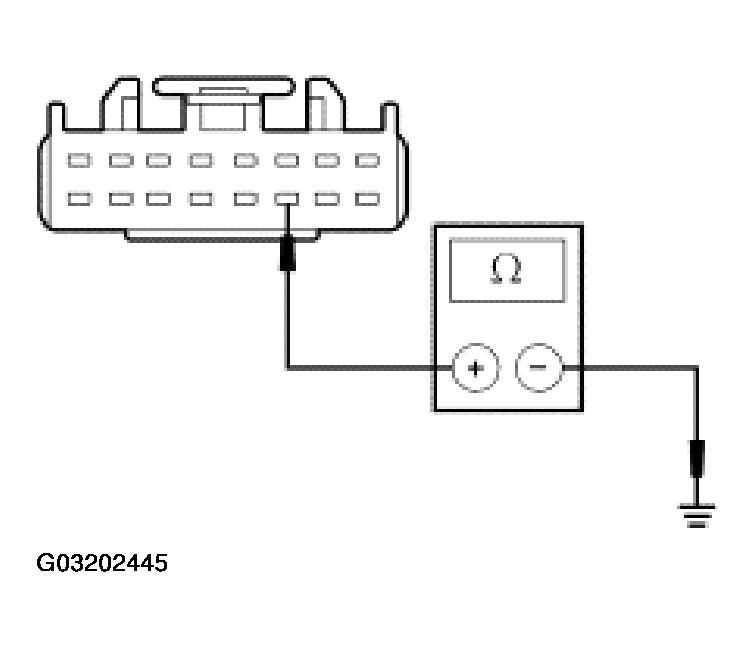

      Fig 7: Measuring Resistance Between Interior Auxiliary Junction Box C283B-11, Circuit 64S-AD2 (BU/RD), Harness Side And Ground
      G03202445Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?
      1. Yes  : GO to B8.
      2. No  : REPAIR the circuit. TEST the system for normal operation.
  8. B8 CHECK THE LR HEATED SEAT SWITCH AND LR WINDOW CONTROL SWITCH ILLUMINATION
    • Connect: CJB 270d.
    • Connect a fused (5A) jumper wire between the interior auxiliary junction box C283a-9, circuit 64S-LH5 (BU/RD), harness side and the interior auxiliary junction box C283b-10, circuit 64S-LH16 (BU/WH), harness side.

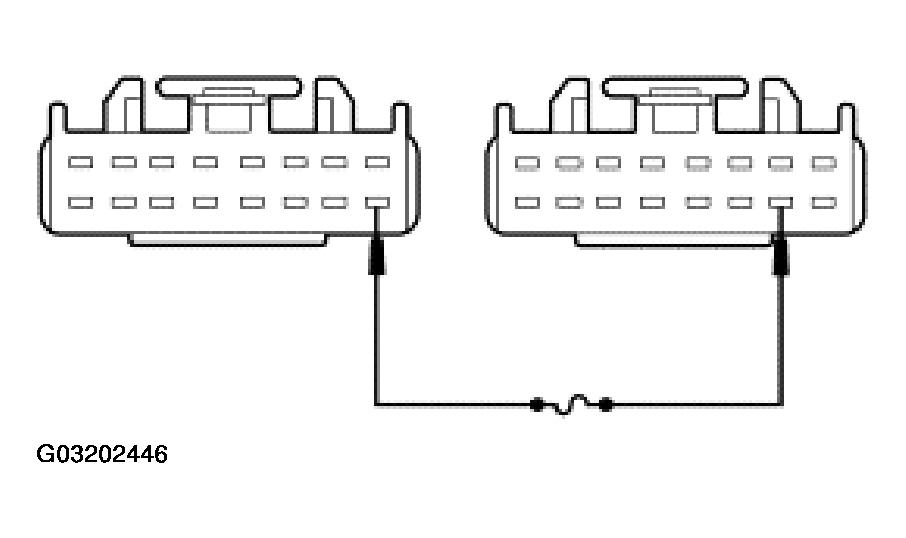

      Fig 8: Connecting Fused (5A) Jumper Wire Between Interior Auxiliary Junction Box C283A-9, Circuit 64S-LH5 (BU/RD), Harness Side
      G03202446Courtesy of FORD MOTOR CO.
    • Turn the headlamps on.
    • Place the dimmer switch in the maximum brightness position.
    • Monitor the LR heated seat switch and LR window control switch illumination.
    • Does the LR heated seat switch and the LR window control switch illumination operate?
      1. Yes  : GO to B9.
      2. No  : REPAIR the following circuit (s) :64S-LH16(BU/WH), 64S-LH16A (BU/WH) or 64S-LH15(BU) for short to ground. TEST the system for normal operation.
  9. B9 CHECK THE LF SWITCH ILLUMINATION
    • Turn the headlamps off.
    • Connect a fused (5A) jumper wire between the interior auxiliary junction box C283a-9, circuit 64S-LH5 (BU/RD), harness side and the interior auxiliary junction box C283b-1, circuit 64S-LH1 (BU/RD), harness side.

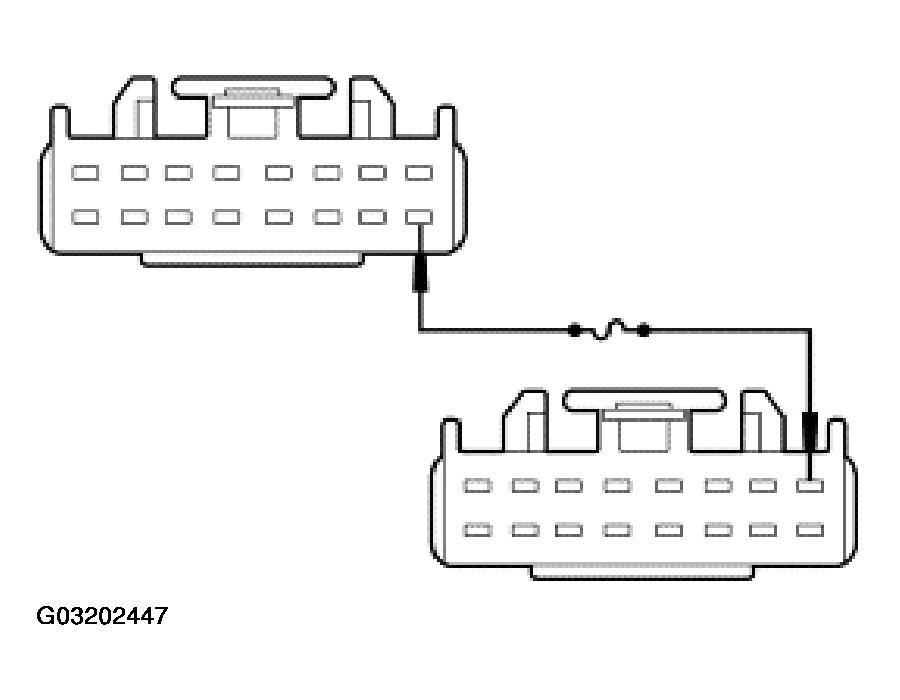

      Fig 9: Connecting Fused (5A) Jumper Wire Between Interior Auxiliary Junction Box C283A-9, Circuit 64S-LH5 (BU/RD), Harness Side
      G03202447Courtesy of FORD MOTOR CO.
    • Turn the headlamps on.
    • Place the dimmer switch in the maximum brightness position.
    • Monitor the LF door window control switch, LF door lock control switch, memory set switch and exterior mirror control switch illumination.
    • Does the LF door window control switch, LF door lock control switch, memory set switch and exterior mirror control switch illumination operate?
      1. Yes  : GO to B10.
      2. No  : REPAIR the following circuit (s): 64S-LH1 (BU/RD), 64S-LH14(BU), 64S-AH27 (BU), 64S-LH28(BU), or64S-LH50(BU/YE) for short to ground. TEST the system for normal operation.
  10. B10 CHECK THE RF LOCK SWITCH AND RF WINDOW CONTROL SWITCH ILLUMINATION
    • Turn the headlamps off.
    • Reconnect: CJB C270d.
    • Disconnect: RF Door C611.
    • Connect a fused (5A) jumper wire between the interior auxiliary junction box C283a-9, circuit 64S-LH5 (BU/RD), harness side and the interior auxiliary junction box C283b-11, circuit 64S-AD2 (BU/RD), harness side.

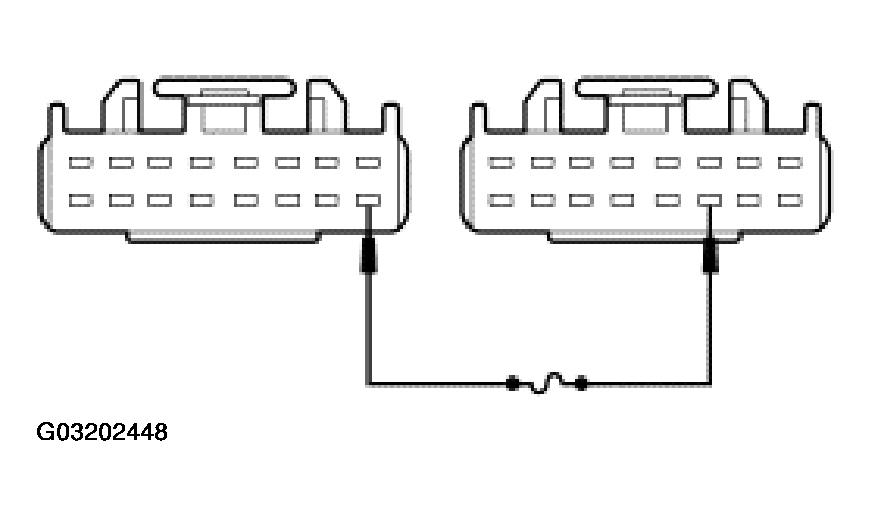

      Fig 10: Connecting Fused (5A) Jumper Wire Between Interior Auxiliary Junction Box C283A-9, Circuit 64S-LH5 (BU/RD), Harness Side
      G03202448Courtesy of FORD MOTOR CO.
    • Turn the headlamps on.
    • Place the dimmer switch in the maximum brightness position.
    • Monitor the passenger window switch and passenger door lock switch illumination.
    • Does the passenger window switch and passenger door lock switch illumination operate?
      1. Yes  : REPAIR the following circuit (s): 64S-LH2 (BU/RD), 64S-LH31 (BU/RD), or 64S-LH42 (BU/RD) for a short to ground. TEST the system for normal operation.
      2. No  : GO to B11.
  11. B11 CHECK THE CENTRAL JUNCTION BOX (CJB) FOR SHORT TO GROUND
    • Turn the headlamps off.
    • Disconnect: CJB C270d.
    • Measure the resistance between the CJB C270d-24, circuit 64S-AD2 (BU/RD), component side and ground.

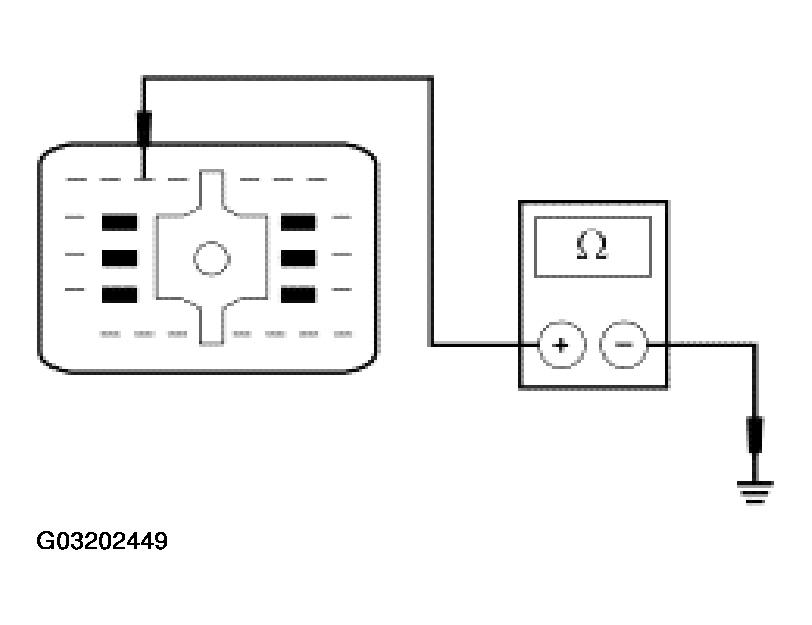

      Fig 11: Measuring Resistance Between CJB C270d-24, Circuit 64S-AD2 (BU/RD), Component Side And Ground
      G03202449Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?
      1. Yes  : REPAIR the following circuit (s): 64S-LH33(BU/BK),64S-LH33A (BU/BK), 64S-LH32 (BU/RD) for short to ground. TEST the system for normal operation.
      2. No  : REPAIR or INSTALL a new CJB. TEST the system for normal operation.
  12. B12 CHECK CIRCUIT 29S-DK22 (OG/YE) FOR POWER
    • Turn the headlamps off.
    • Disconnect: Front Electronic Module (FEM) C201f.
    • Measure the voltage between the FEM C201f-1, circuit 29S-DK22 (OG/YE), harness side and ground.

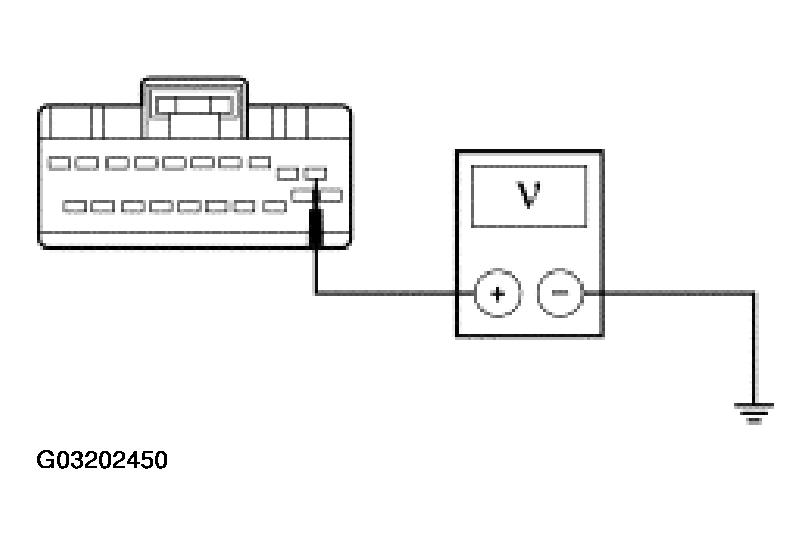

      Fig 12: Measuring Voltage Between FEM C201F-1, Circuit 29S-DK22 (OG/YE), Harness Side And Ground
      G03202450Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
      1. Yes  : GO to B13.
      2. No  : REPAIR the circuit. TEST the system for normal operation.
  13. B13 CHECK CIRCUIT 64S-LH5 (BU/RD) FOR OPEN OR SHORT TO GROUND
    • Measure the resistance between the interior auxiliary junction box C283a-9, circuit 64S-LH5 (BU/RD), harness side and the FEM C201f-11, circuit 64S-LH5 (BU/RD), harness side; and between the interior auxiliary junction box C283a-9, circuit 64S-LH5 (BU/RD), harness side and ground.

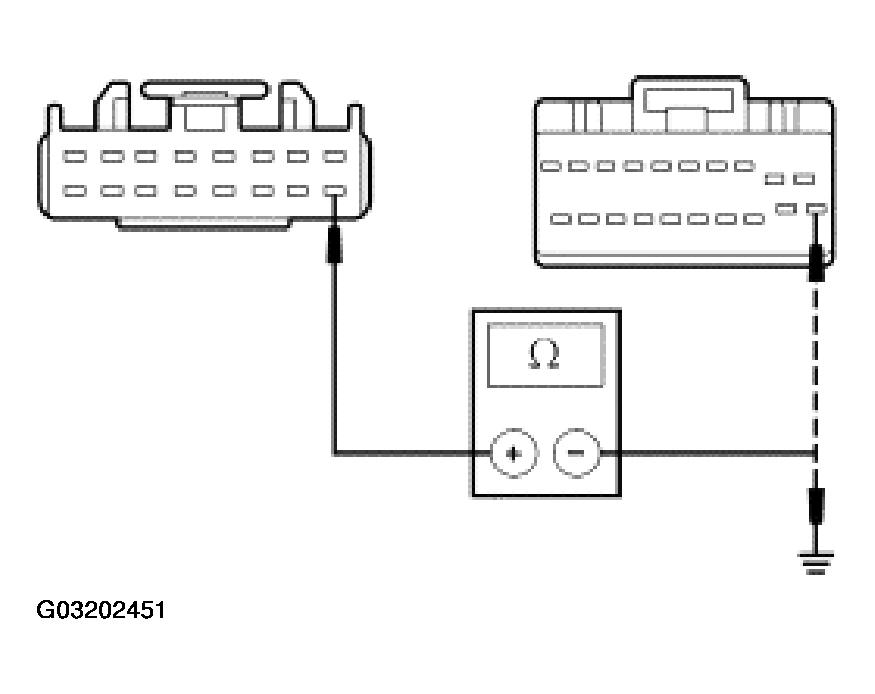

      Fig 13: Measuring Resistance Between Interior Auxiliary Junction Box C283A-9, Circuit 64S-LH5 (BU/RD), Harness Side
      G03202451Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms between the interior auxiliary junction box and the FEM; and greater than 10,000 ohms between the interior auxiliary junction box and ground?
      1. Yes  : GO to B14.
      2. No  : REPAIR the circuit. TEST the system for normal operation.
  14. B14 CHECK FOR CORRECT FEM OPERATION
    • Disconnect all the FEM connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all the FEM connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
      1. Yes  : INSTALL a new FEM. REFER to MODULE COMMUNICATIONS NETWORK . TEST the system for normal operation. If the control illumination is still inoperative, GO to B15.
      2. No  : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
  15. B15 CHECK FOR CORRECT INSTRUMENT CLUSTER OPERATION
    • Disconnect all the instrument cluster connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all the instrument cluster connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
      1. Yes  : INSTALL a new instrument cluster. REFER to INSTRUMENT CLUSTER . TEST the system for normal operation.
      2. No  : The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
