Removal & Installation: Gauges: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Illumination bulbs are pressurized and may shatter if improperly handled. Wear eye protection when replacing illumination bulbs

CAUTION: If gauges are being removed from the cluster assembly, do not remove the gauge pointers. Magnetic gauges cannot be recalibrated.

NOTE: Gauges are replaced as assemblies. They are not available individually.

NOTE: Do not reuse instrument gauge clips.

Remove the instrument cluster, refer to INSTRUMENT CLUSTER .
Remove the instrument cluster gauge amplifier (10E849).

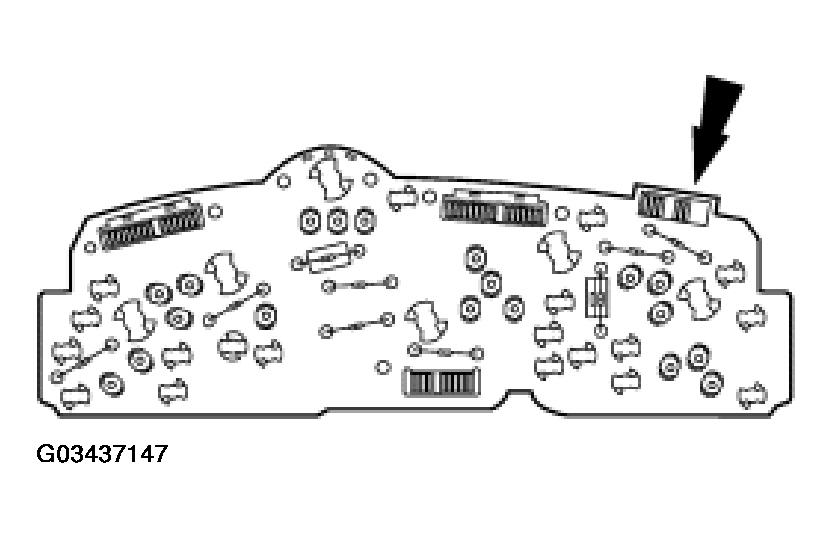

Fig 1: Removing Instrument Cluster Gauge Amplifier
Courtesy of FORD MOTOR CO.
Remove the instrument cluster lens and mask assembly.
1. Remove the seven screws.
2. Remove the instrument cluster lens and mask assembly.

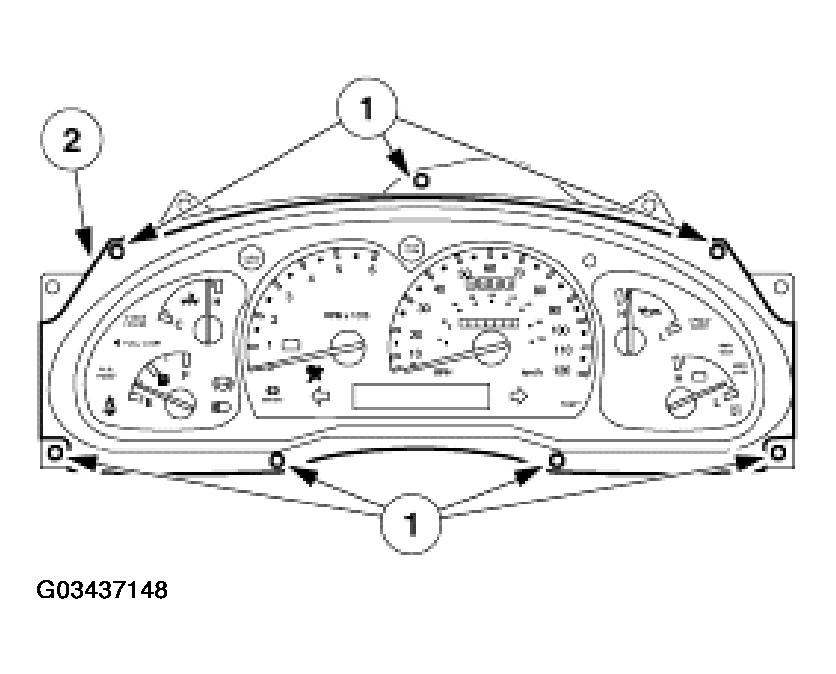

Fig 2: Removing Instrument Cluster Lens & Mask Assembly
Courtesy of FORD MOTOR CO.

NOTE: The side gauge assemblies must be removed before removing the center assembly.

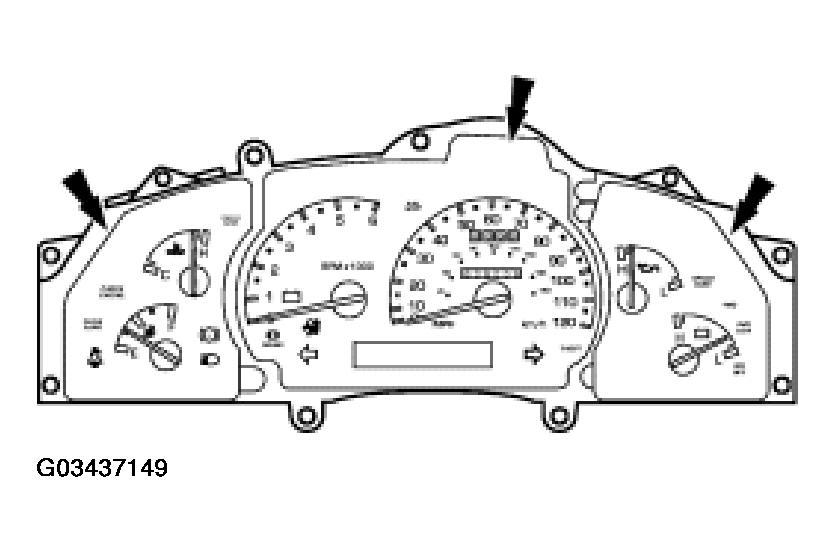

Fig 3: Removing Gauge Assemblies

Courtesy of FORD MOTOR CO.

Gently remove the gauge assemblies.
