Instrument Cluster

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

The instrument cluster consists of the following components:

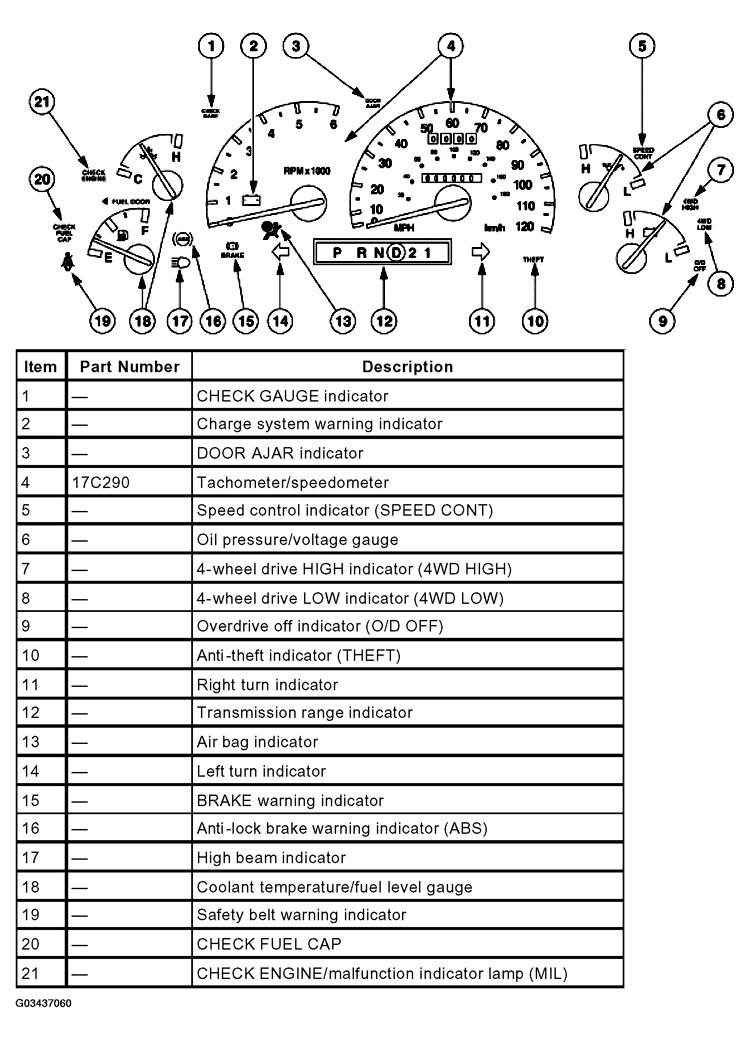

Fig 1: Identifying Instrument Cluster Components
G03437060Courtesy of FORD MOTOR CO.
