Inspection & Verification - Electronic Shift
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

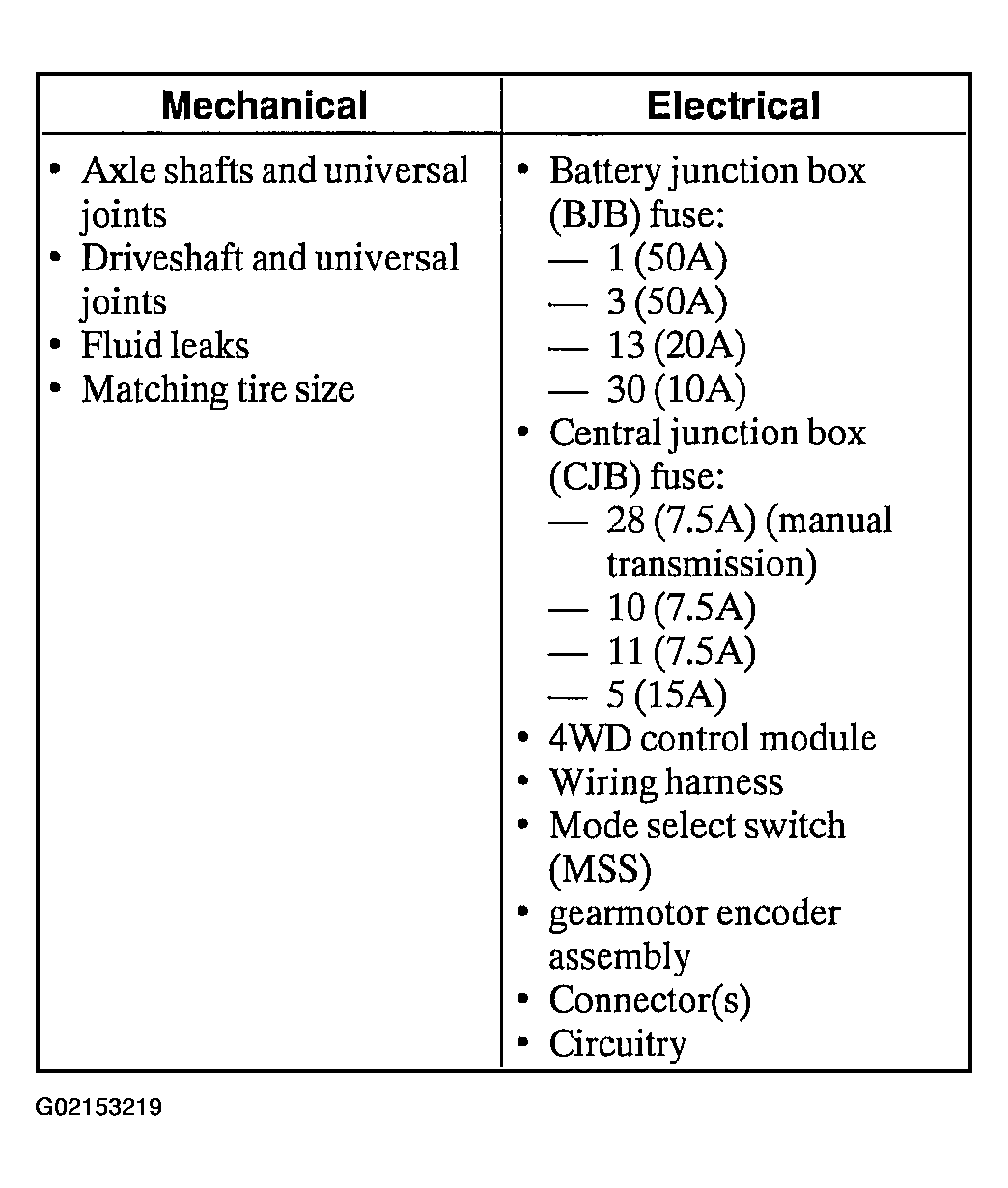

- Visually inspect the following for obvious signs of mechanical and electrical damage.
- If the concern remains after the inspection, connect the diagnostic tool to the Data Link Connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
- check that the program card is correctly installed.
- check the connections to the vehicle.
- check the ignition switch position.
- If the diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool manual .
- Carry out the DATA LINK DIAGNOSTICS test. If the diagnostic tool responds with:
- CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to MODULE COMMUNICATIONS NETWORK .
- NO RESP/NOT EQUIP for 4WD control module, GO to PINPOINT TEST D: NO COMMUNICATION WITH THE FOUR-WHEEL DRIVE (4WD) CONTROL MODULE .
- SYSTEM PASSED, retrieve and record the continuous Diagnostic Trouble Codes (DTCs), erase the continuous DTCs and carry out the 4WD control module self-test.

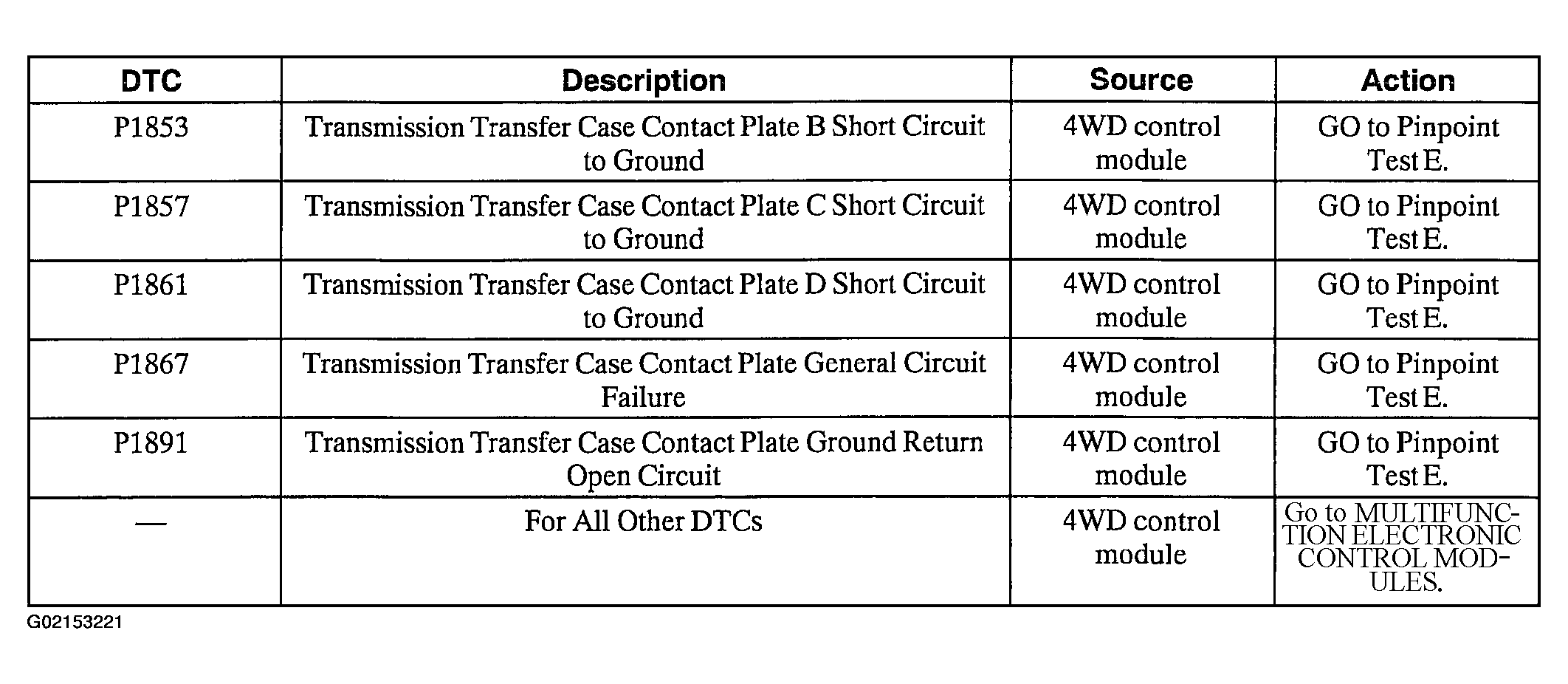

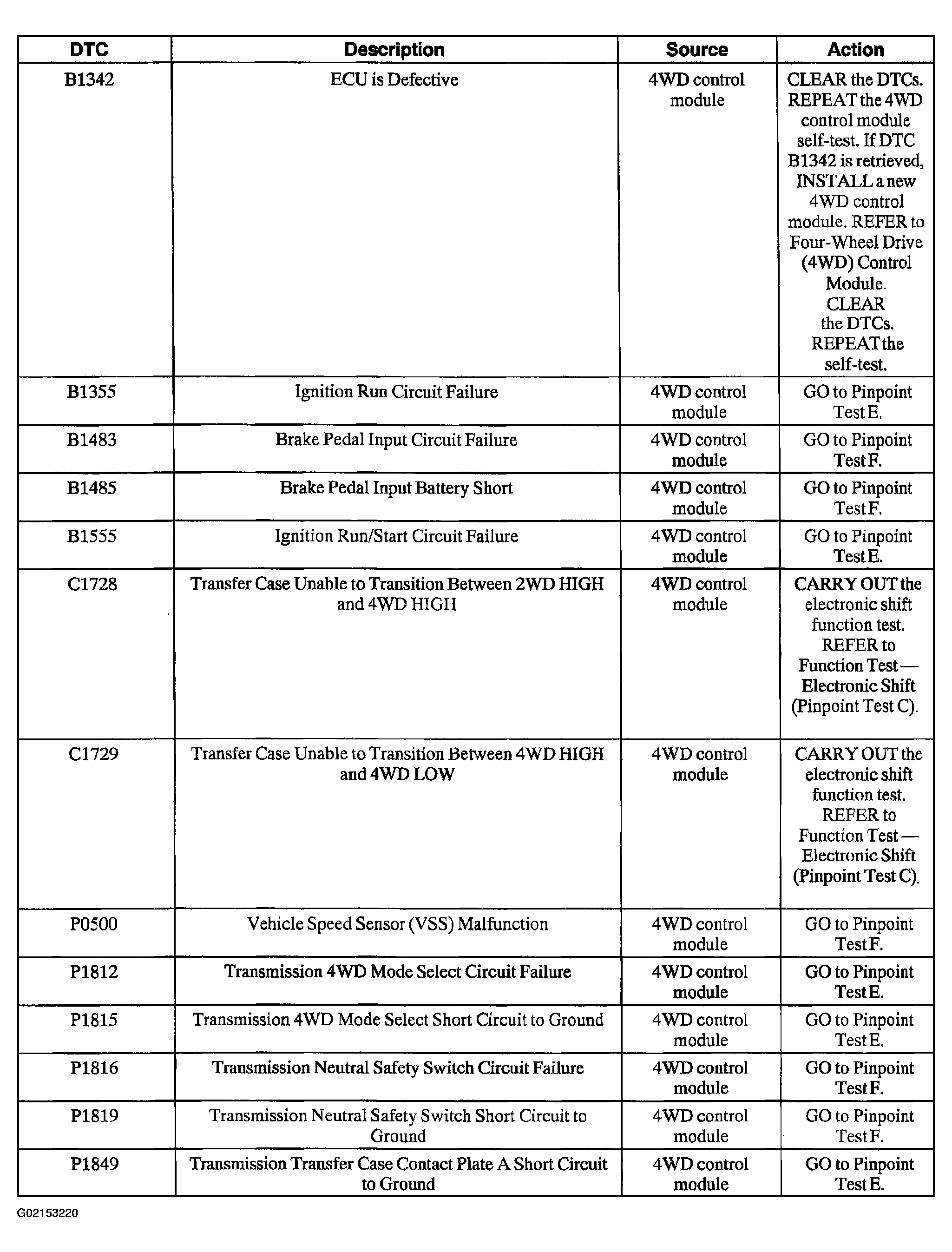

- If the DTCs retrieved are related to the concern, go to the 4WD Control Module Diagnostic Trouble Code (DTC) Index to continue diagnostics. See Fig 2.
- If no DTCs related to the concern are retrieved, carry out the Electronic Shift Function Test. Refer to PINPOINT TEST C: ELECTRONIC SHIFT FUNCTIONAL TEST .
