Pinpoint Test D: No Communication With The Four-Wheel Drive (4WD) Control Module

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

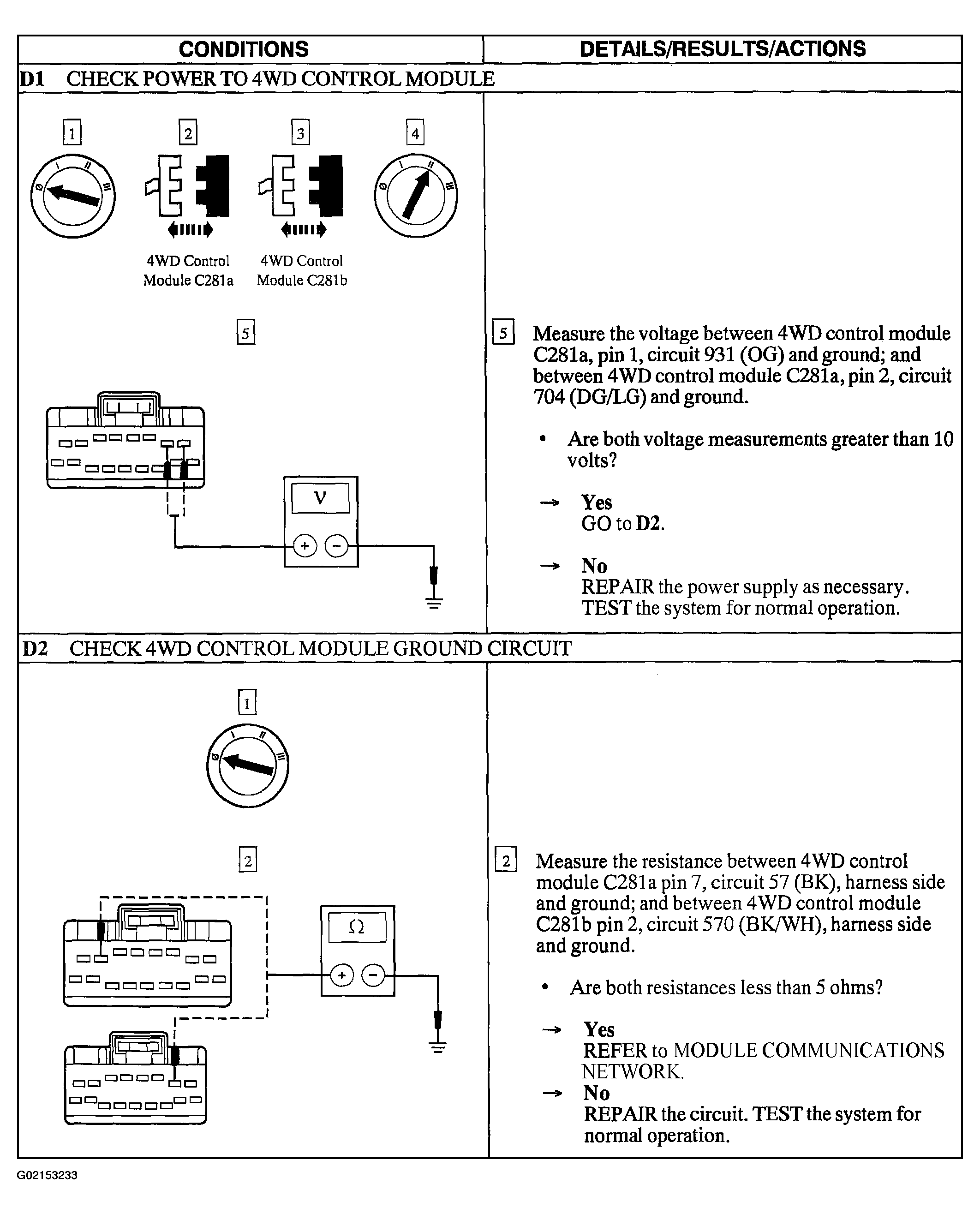

Fig 1: Pinpoint Test D: No Communication With Four-Wheel Drive (4WD) Control Module
G02153233Courtesy of FORD MOTOR CO.
