Drive Pinion Seal: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pinion flange. For additional information, refer to DRIVE PINION FLANGE  .
  2. Pry up on the metal flange of the rear axle drive pinion seal. Install gripping pliers and strike with a hammer until the rear axle drive pinion seal is removed.

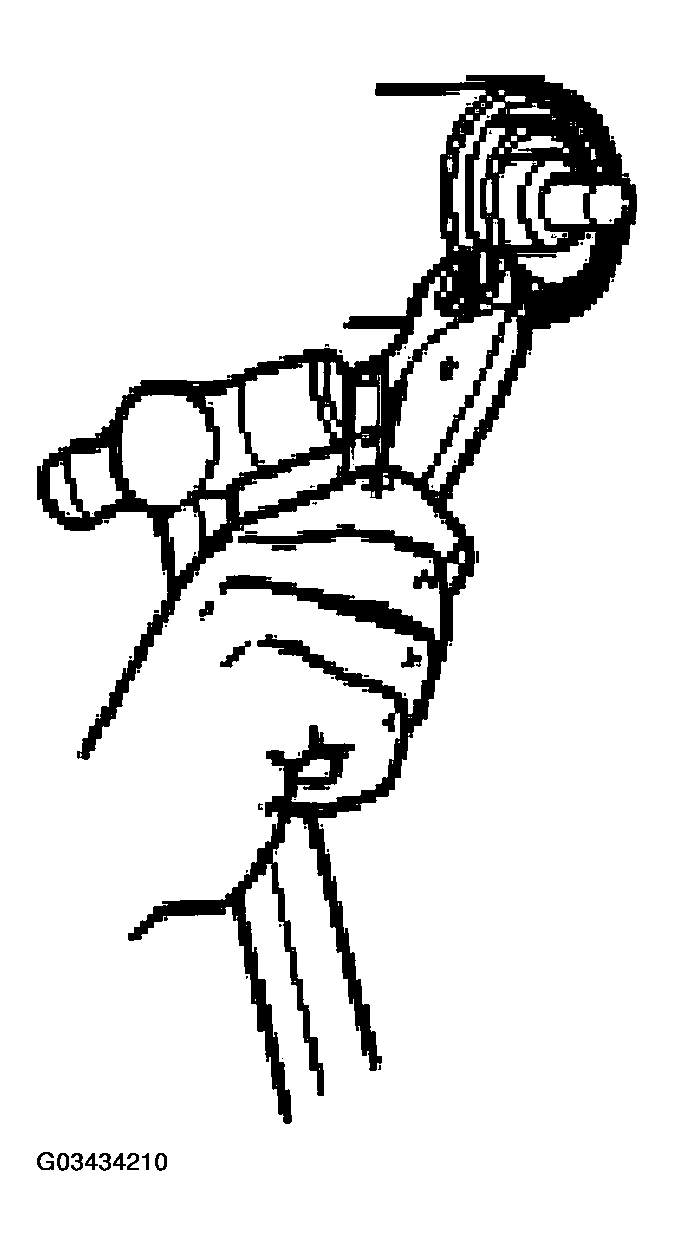

    Fig 1: Removing Rear Axle Drive Pinion Seal
    G03434210Courtesy of FORD MOTOR CO.
