Differential Ring & Pinion: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential carrier. For additional information, refer to DIFFERENTIAL CARRIER  .
  2. Remove the 10 differential ring gear bolts.

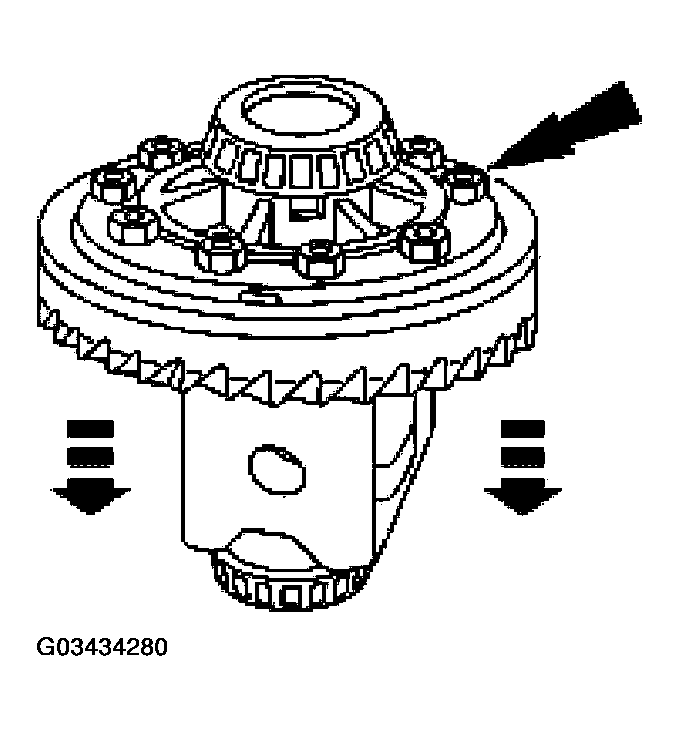

    Fig 1: Removing Differential Ring Gear Bolts
    G03434280Courtesy of FORD MOTOR CO.
  3. CAUTION: Do not damage the differential ring gear bolt hole threads.
    Fig 2: Removing Differential Ring Gear
    G03434281Courtesy of FORD MOTOR CO.
  4. Insert a punch in the differential ring gear bolt holes and drive the differential ring gear off.
  5. Using the special tools, remove the differential bearings.
    Fig 3: Removing Differential Bearings Using Special Tools
    G03434282Courtesy of FORD MOTOR CO.
  6. Index-mark the driveshaft flange and pinion flange for correct alignment during installation.

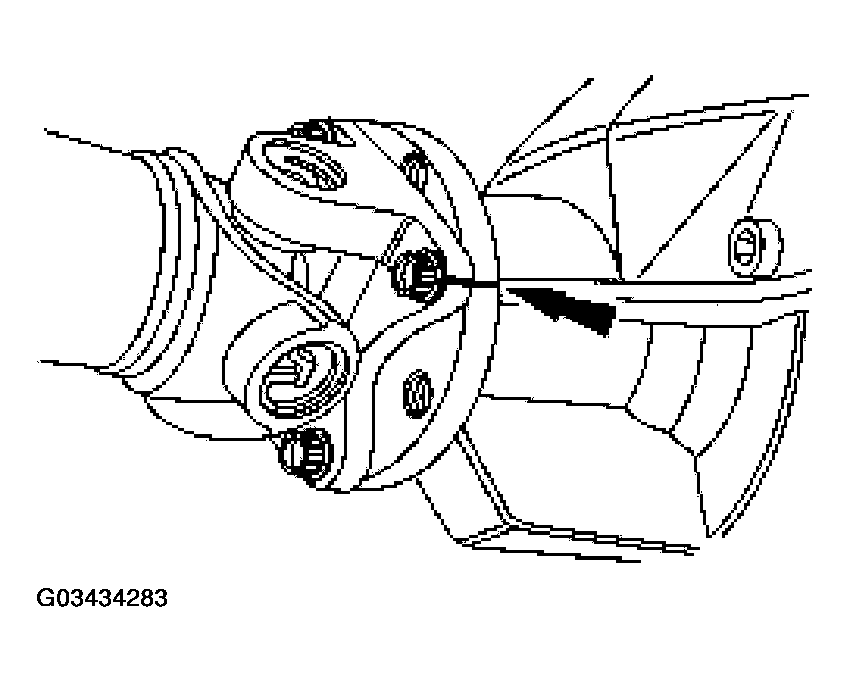

    Fig 4: Index-Marking Driveshaft Flange & Pinion Flange
    G03434283Courtesy of FORD MOTOR CO.
  7. Remove the 4 driveshaft flange bolts.

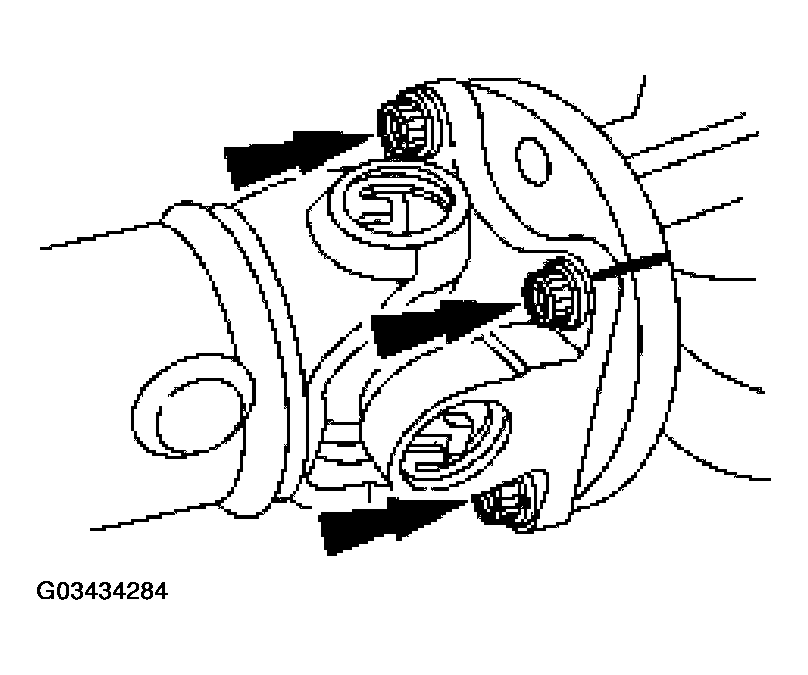

    Fig 5: Removing Driveshaft Flange Bolts
    G03434284Courtesy of FORD MOTOR CO.
  8. CAUTION: The driveshaft centering socket yoke fits tightly on the pinion flange pilot. Never hammer on the driveshaft or any of its components to disconnect the driveshaft centering socket yoke from the pinion flange. Pry only in the area shown with a suitable tool to disconnect the driveshaft centering socket yoke from the pinion flange.

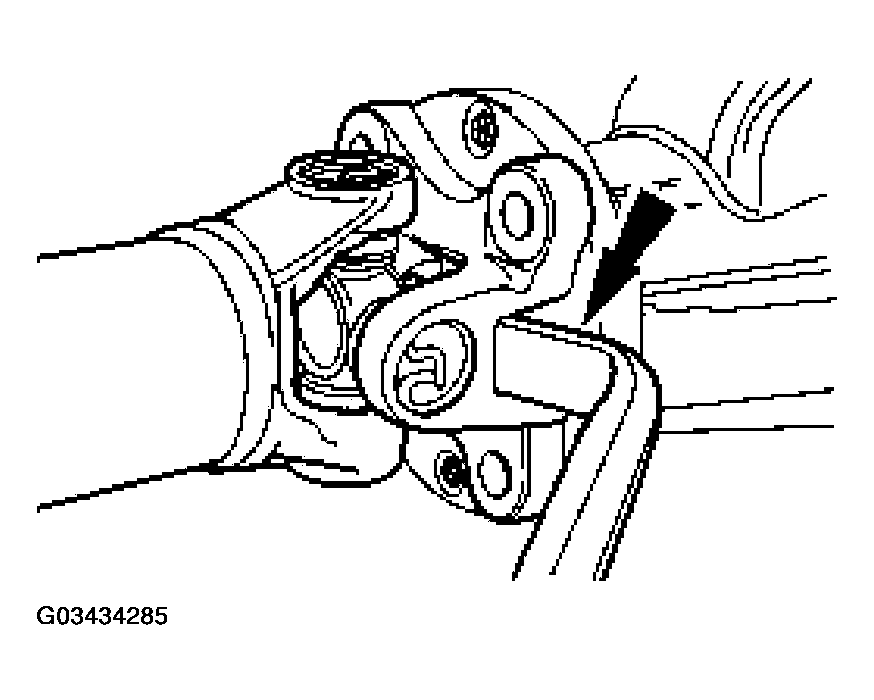

    Fig 6: Disconnecting Driveshaft Centering Socket Yoke From Pinion Flange
    G03434285Courtesy of FORD MOTOR CO.
  9. Using a suitable tool as shown, disconnect the driveshaft centering socket yoke from the pinion flange.
    • Using mechanic's wire, position the driveshaft aside.
  10. Using the special tool to hold the pinion flange, remove and discard the pinion nut.
    Fig 7: Removing Pinion Nut
    G03434286Courtesy of FORD MOTOR CO.
  11. Using the special tool, remove the pinion flange.
    Fig 8: Removing Pinion Flange
    G03434287Courtesy of FORD MOTOR CO.
  12. Force up on the metal flange of the drive pinion seal. Install gripping pliers and strike with a hammer until the drive pinion seal is removed.

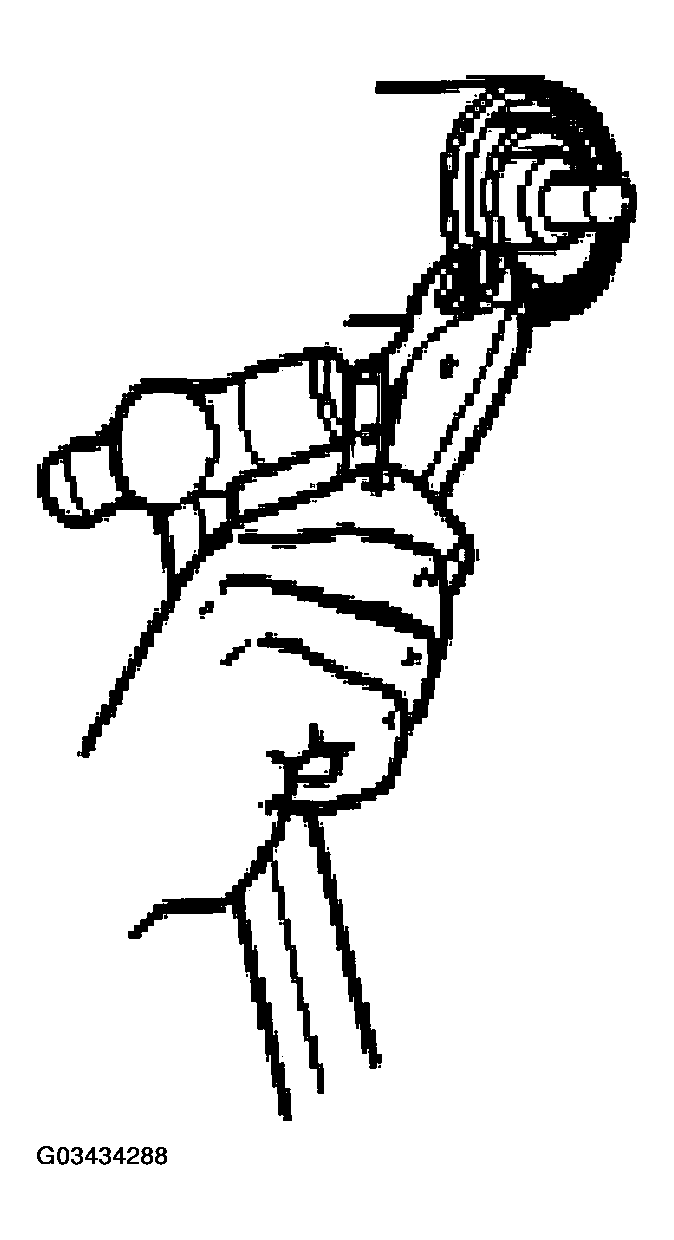

    Fig 9: Removing Drive Pinion Seal
    G03434288Courtesy of FORD MOTOR CO.
  13. Remove the drive pinion shaft oil slinger and the outer drive pinion bearing.
  14. Install the special tool. Using a soft-faced hammer, drive the pinion assembly out of the axle housing.
    Fig 10: Removing Pinion Assembly
    G03434289Courtesy of FORD MOTOR CO.
  15. Remove and discard the drive pinion collapsible spacer.

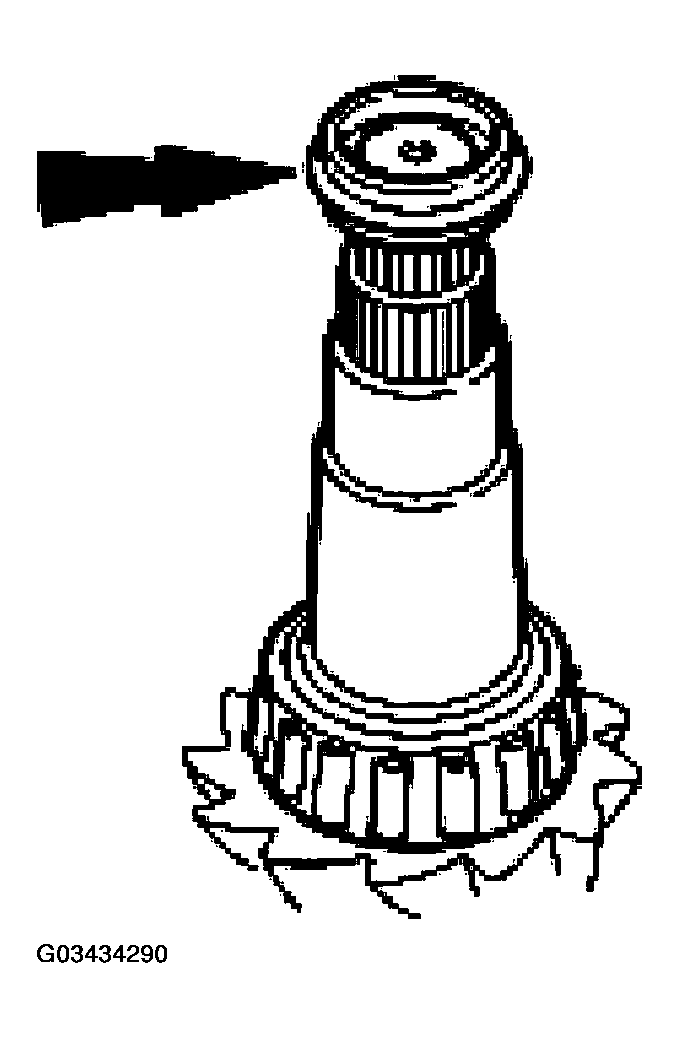

    Fig 11: Removing Drive Pinion Collapsible Spacer
    G03434290Courtesy of FORD MOTOR CO.
  16. Using a brass drift, remove the drive pinion bearing cups by tapping alternately on opposite sides of the drive pinion bearing cups.
    Fig 12: Removing Drive Pinion Bearing Cups
    G03434291Courtesy of FORD MOTOR CO.
