Differential Case & Ring Gear - Conventional: Assembly

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the differential side gear thrust washers and the differential side gear journals, and assemble the washers to the gears.
    Fig 1: Assembling Washers To Gears
    G03434392Courtesy of FORD MOTOR CO.
  2. Lubricate the differential pinion thrust washers and the differential pinion gears, and assemble the washers to the gears.
    Fig 2: Assembling Washers To Gears
    G03434393Courtesy of FORD MOTOR CO.
  3. Position the differential side gears and thrust washers into the differential case.
    Fig 3: Installing Differential Side Gears & Thrust Washers
    G03434394Courtesy of FORD MOTOR CO.
  4. Engage the differential pinion gears with the differential side gears and rotate the pinion gears to align with the differential pinion shaft bore.
    Fig 4: Engaging Differential Pinion Gears With Differential Side Gears
    G03434395Courtesy of FORD MOTOR CO.
  5. Insert the differential pinion shaft.
    • Align the hole in the differential pinion shaft with the hole in the differential case.

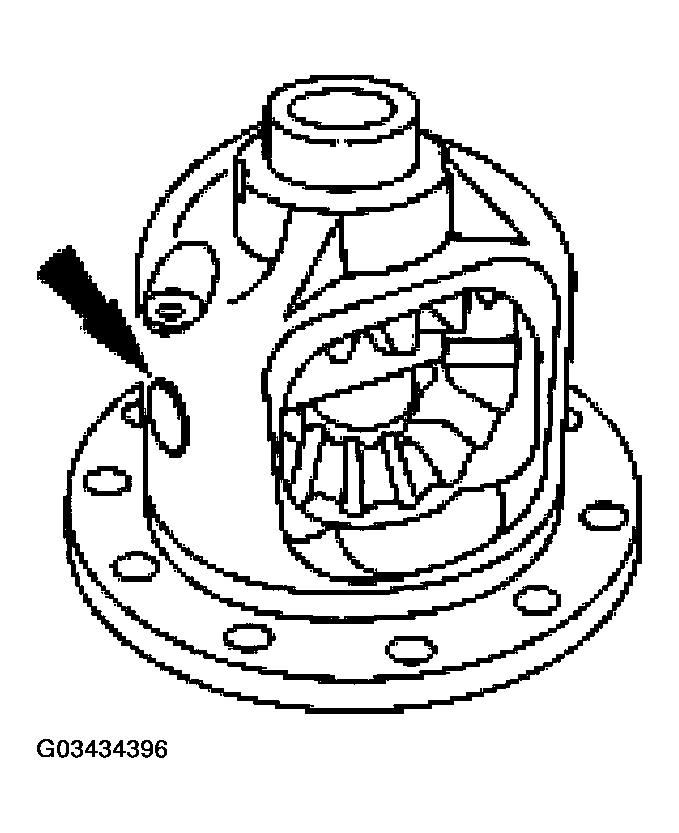

    Fig 5: Inserting Differential Pinion Shaft
    G03434396Courtesy of FORD MOTOR CO.
  6. NOTE: If a new pinion shaft lock bolt is unavailable, coat the original bolt threads with threadlock and sealer prior to installation.

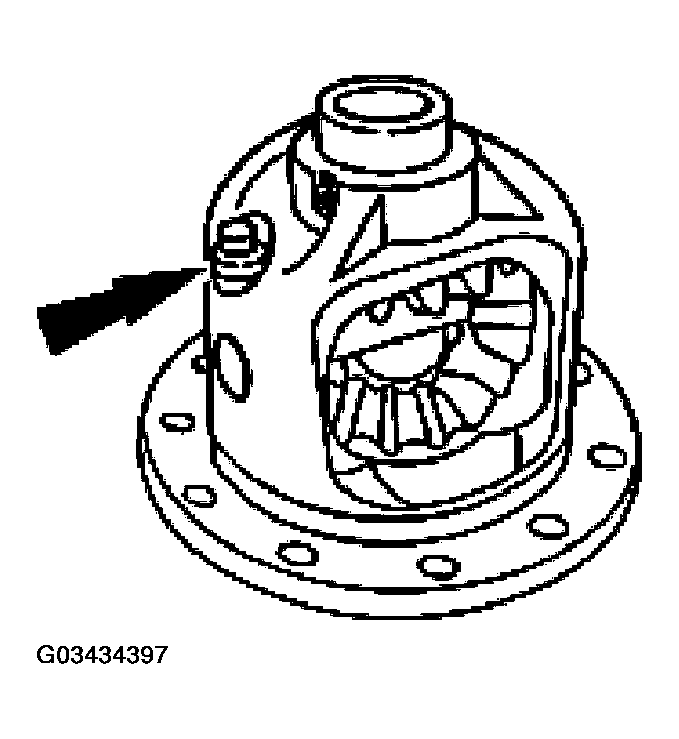

    Fig 6: Installing Differential Pinion Shaft Lock Bolt
    G03434397Courtesy of FORD MOTOR CO.
  7. Install a new differential pinion shaft lock bolt and tighten finger-tight.
  8. Using the special tool, install the new differential bearings.
    Fig 7: Installing Differential Bearings
    G03434398Courtesy of FORD MOTOR CO.
  9. CAUTION: Make sure that the notches on the case flange and the anti-lock speed sensor ring are aligned.

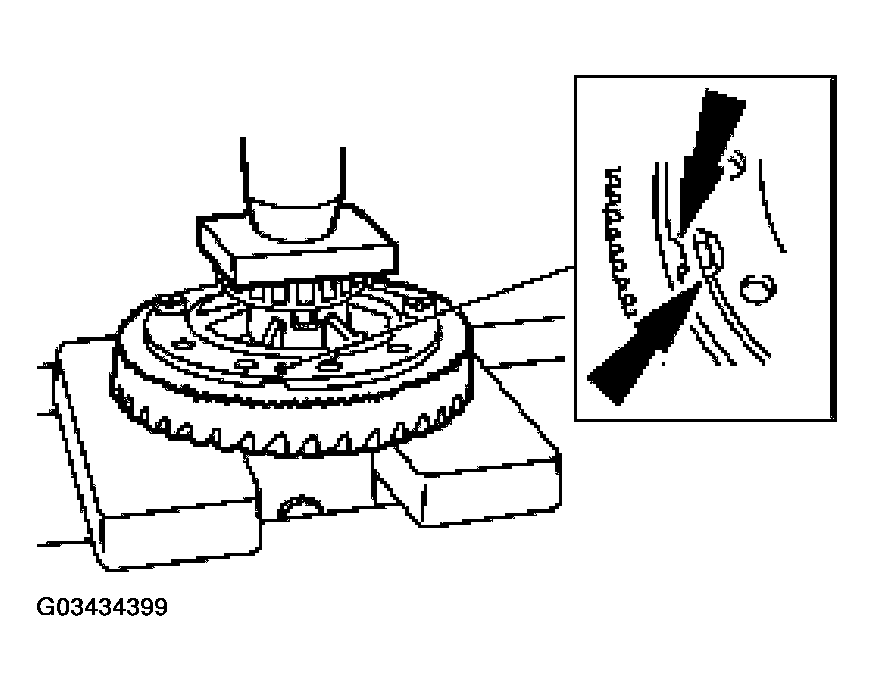

    Fig 8: Pressing Ring Gear On Differential Case
    G03434399Courtesy of FORD MOTOR CO.
  10. Press the ring gear on the differential case.
  11. NOTE: Apply stud and bearing mount to the ring gear bolt threads.
    Fig 9: Installing Ring Gear Bolts
    G03434400Courtesy of FORD MOTOR CO.
  12. Install the ring gear bolts.
  13. Install the differential case. For additional information, refer to DIFFERENTIAL CASE  .
