Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

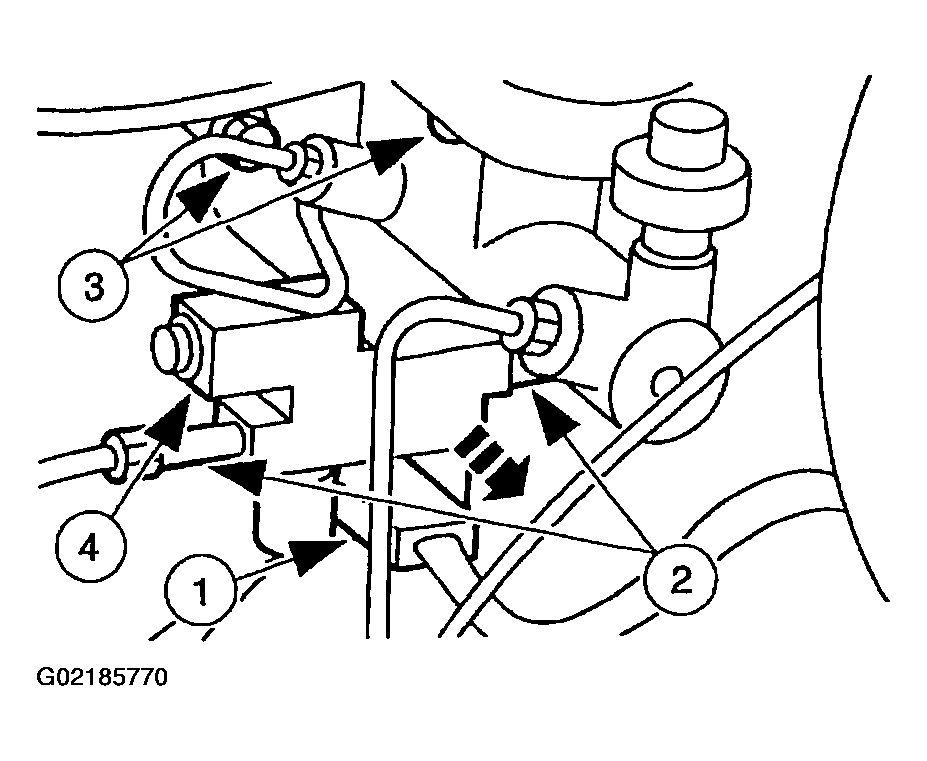

Fig 1: Removing Rear Anti-Lock Brake System (RABS) Valve

Courtesy of FORD MOTOR CO.

Remove the rear anti-lock brake system (RABS) valve.
1. Disconnect the RABS valve electrical connector.
2. Remove the two hydraulic lines and plug them.
3. Remove the two RABS valve nuts.
4. Remove the RABS valve.
To install, reverse the removal procedure.
- Bleed the brakes. Refer to BRAKE SYSTEM-GENERAL INFORMATION .

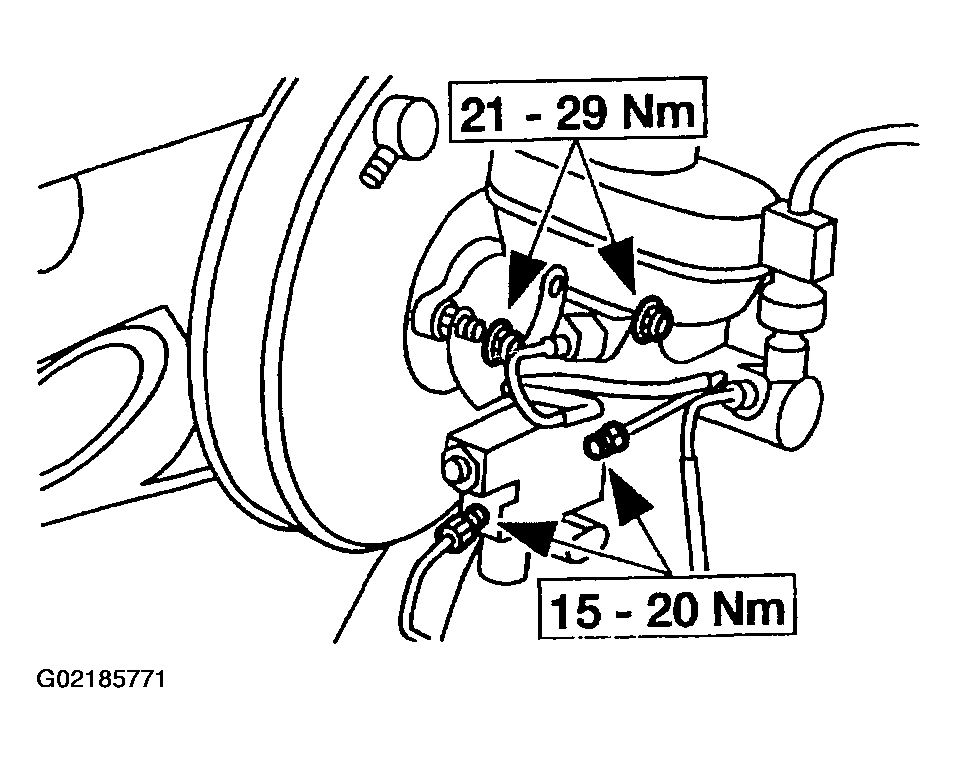

  Fig 2: Bolts With Torque Specification
  Courtesy of FORD MOTOR CO.
