Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support vehicle.

NOTE: Clean off dirt and debris that may have collected around the rear anti-lock brake sensor before removal.

Remove the rear anti-lock brake sensor.
1. Disconnect the rear anti-lock brake sensor electrical connector.
2. Remove the bolt.
3. Remove the rear anti-lock brake sensor.

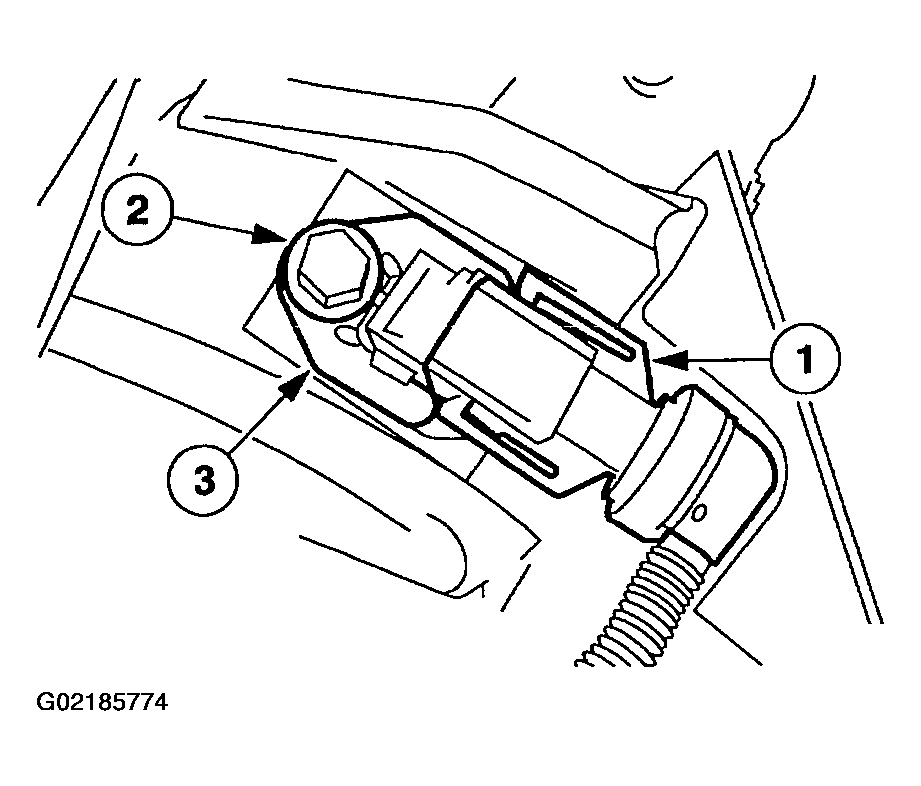

  Fig 1: Removing Rear Anti-Lock Brake Sensor
  Courtesy of FORD MOTOR CO.

NOTE: Thoroughly clean the mounting surface.

NOTE: Inspect the anti-lock brake sensor O-ring for damage; lightly lubricate the O-ring with SAE-75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.

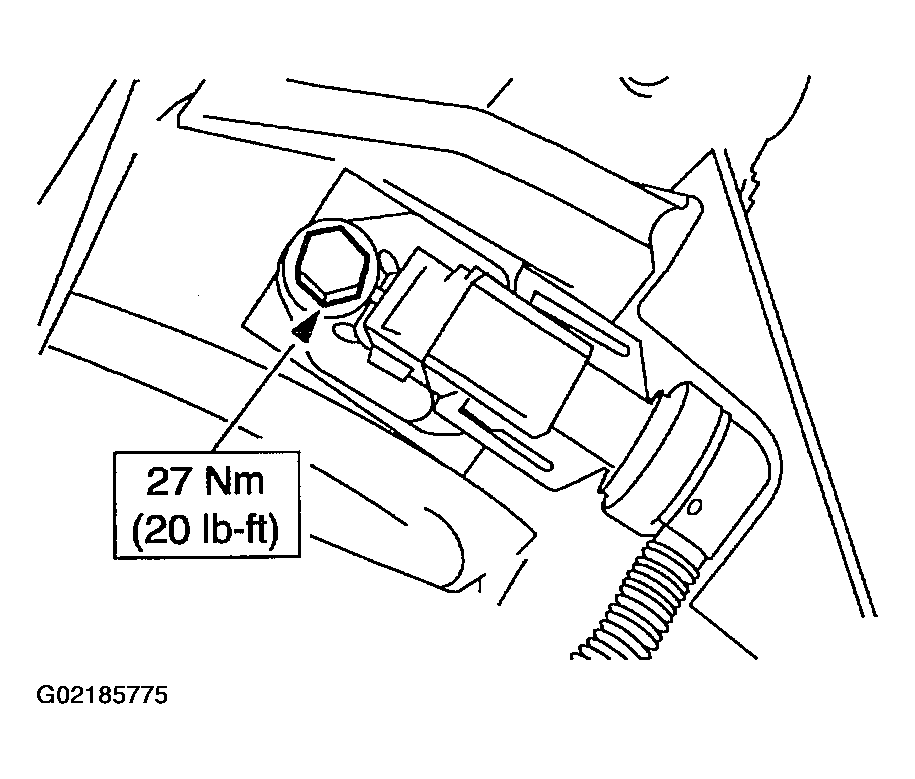

Fig 2: Installing Rear Anti-Lock Brake Sensor

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
