Pinpoint Test P: Intermittent Problem Diagnosis

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

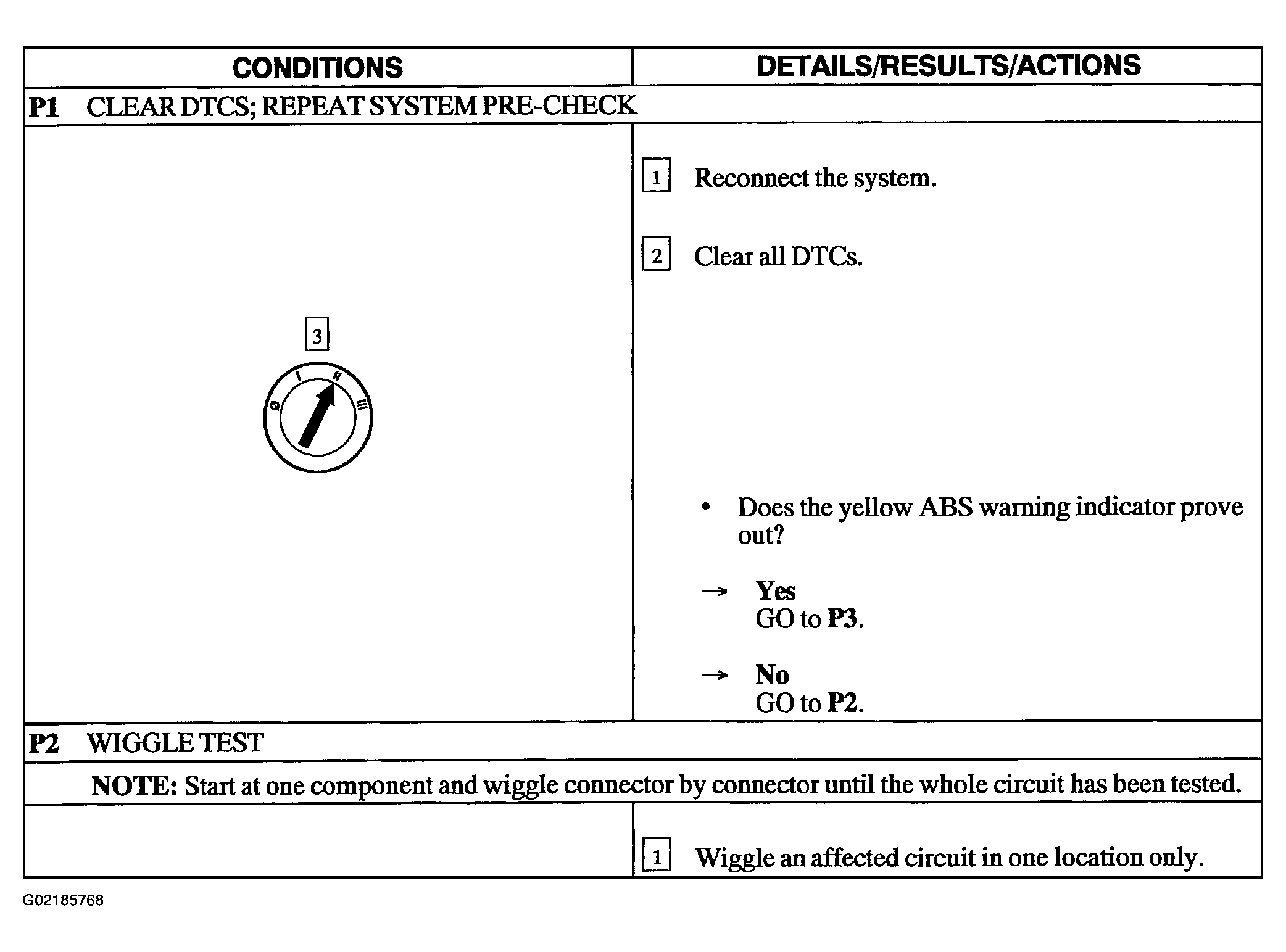

Fig 1: Pinpoint Test P: Intermittent Problem Diagnosis Chart (P1 & P2)
G02185768Courtesy of FORD MOTOR CO.

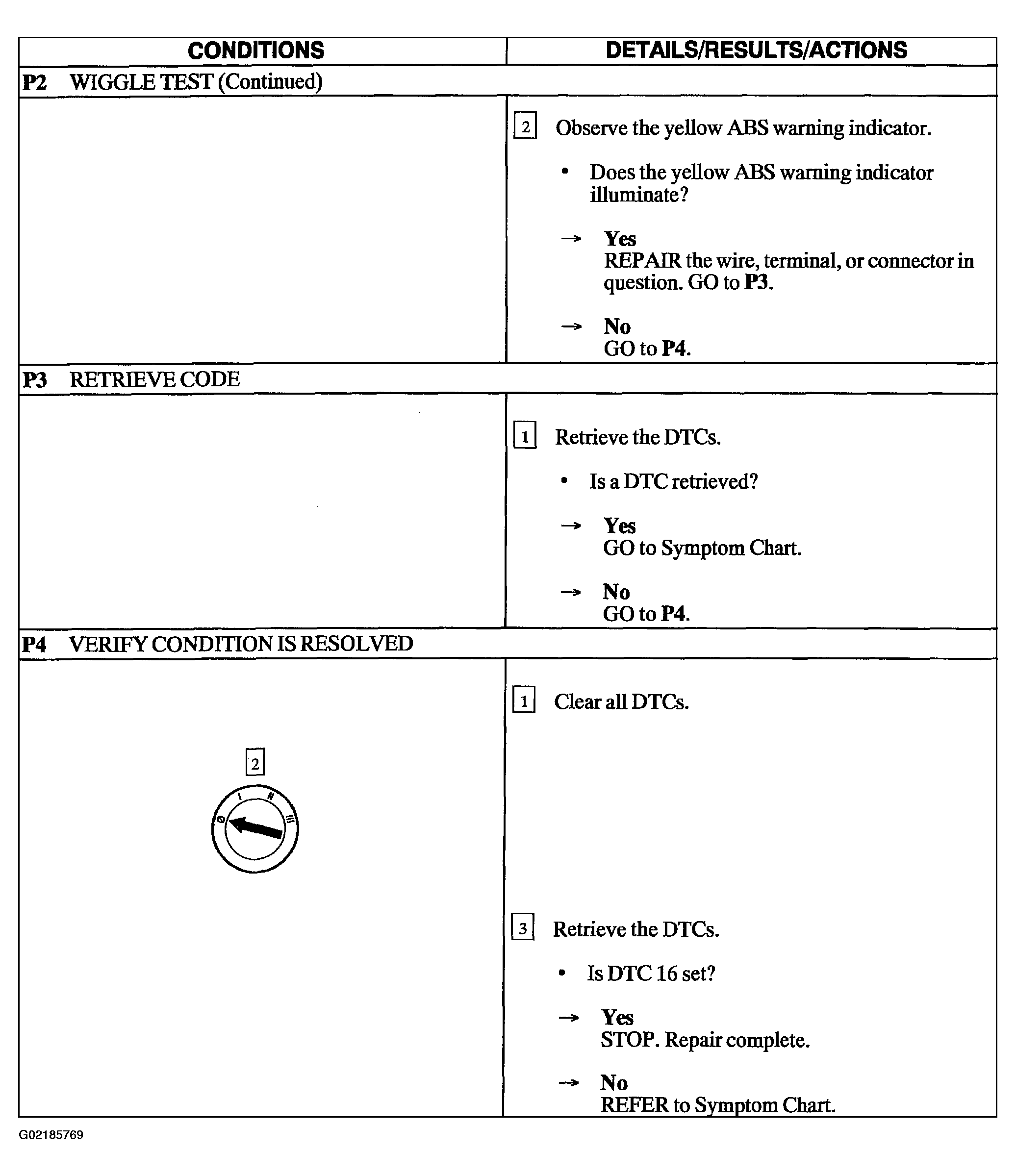

Fig 2: Pinpoint Test P: Intermittent Problem Diagnosis Chart (P2 Cont. - P4)
G02185769Courtesy of FORD MOTOR CO.
