Pinpoint Test N: Diagnostic Trouble Code (DTC) 12 - Loss Of Hydraulic Brake Fluid During An Anti-Lock Stop

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

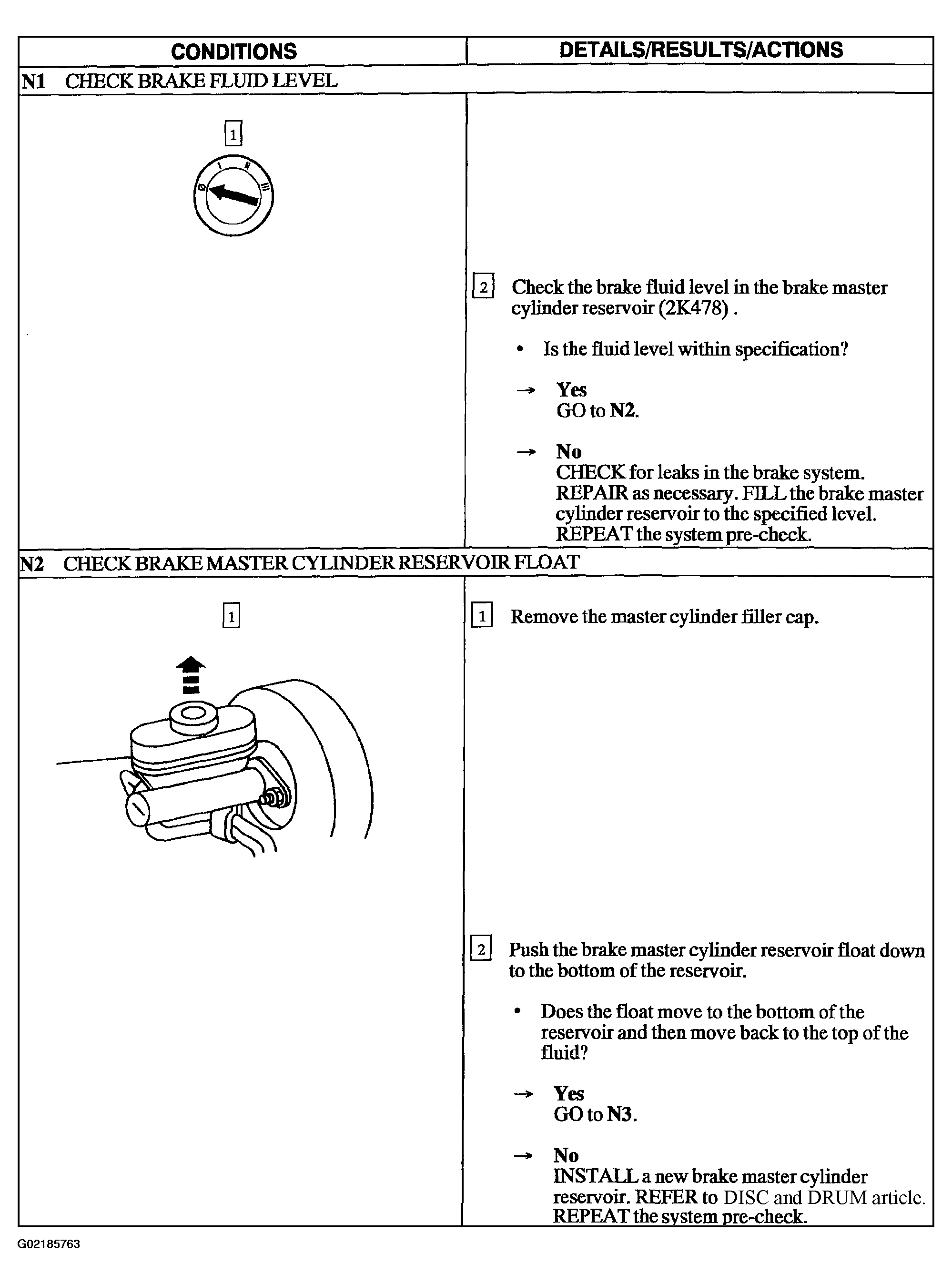

Fig 1: Pinpoint Test N: Diagnostic Trouble Code (DTC) 12 - Loss Of Hydraulic Brake Fluid During An Anti-Lock Stop Chart (N1 & N2)
G02185763Courtesy of FORD MOTOR CO.

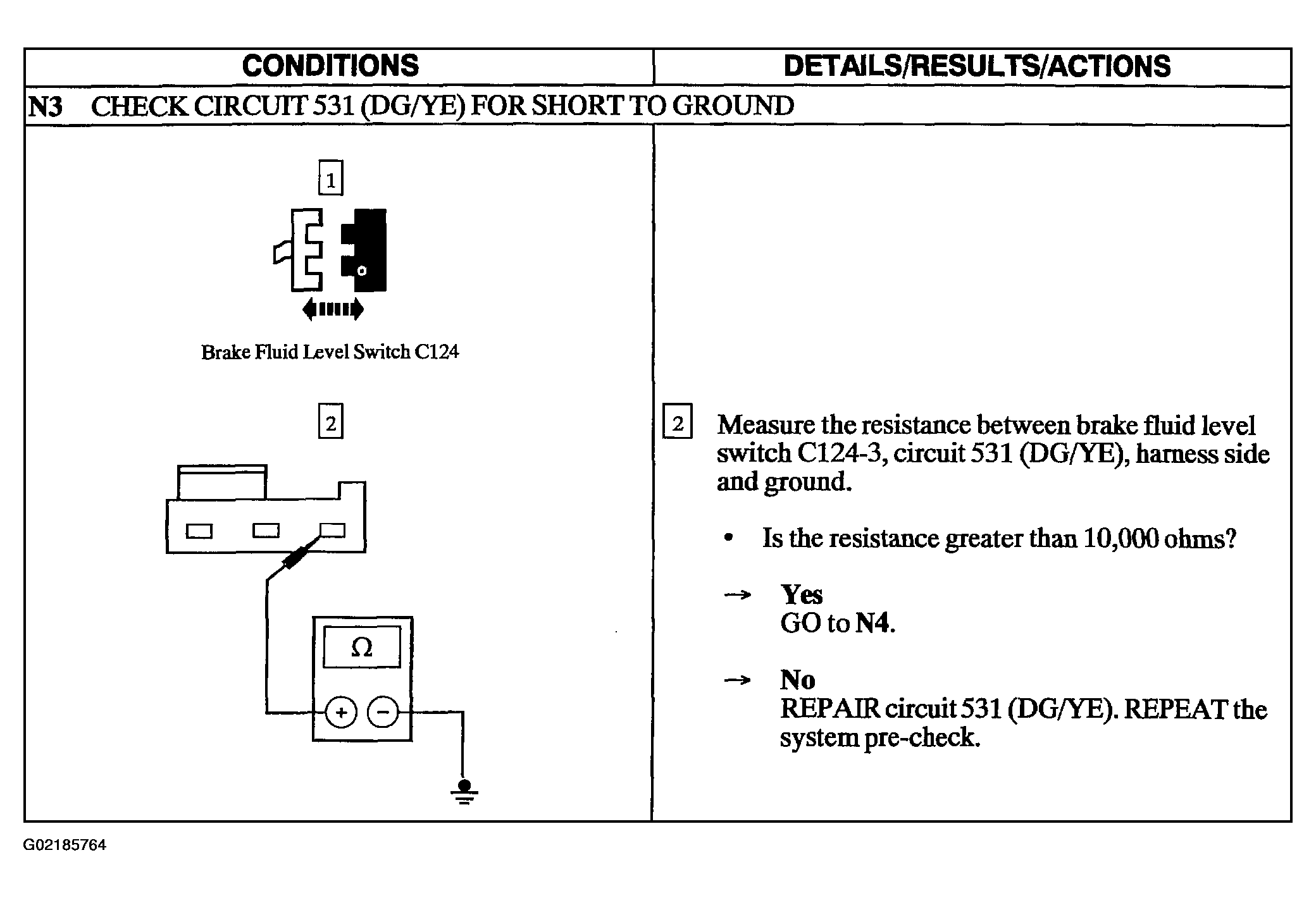

Fig 2: Pinpoint Test N: Diagnostic Trouble Code (DTC) 12 - Loss Of Hydraulic Brake Fluid During An Anti-Lock Stop Chart (N3)
G02185764Courtesy of FORD MOTOR CO.

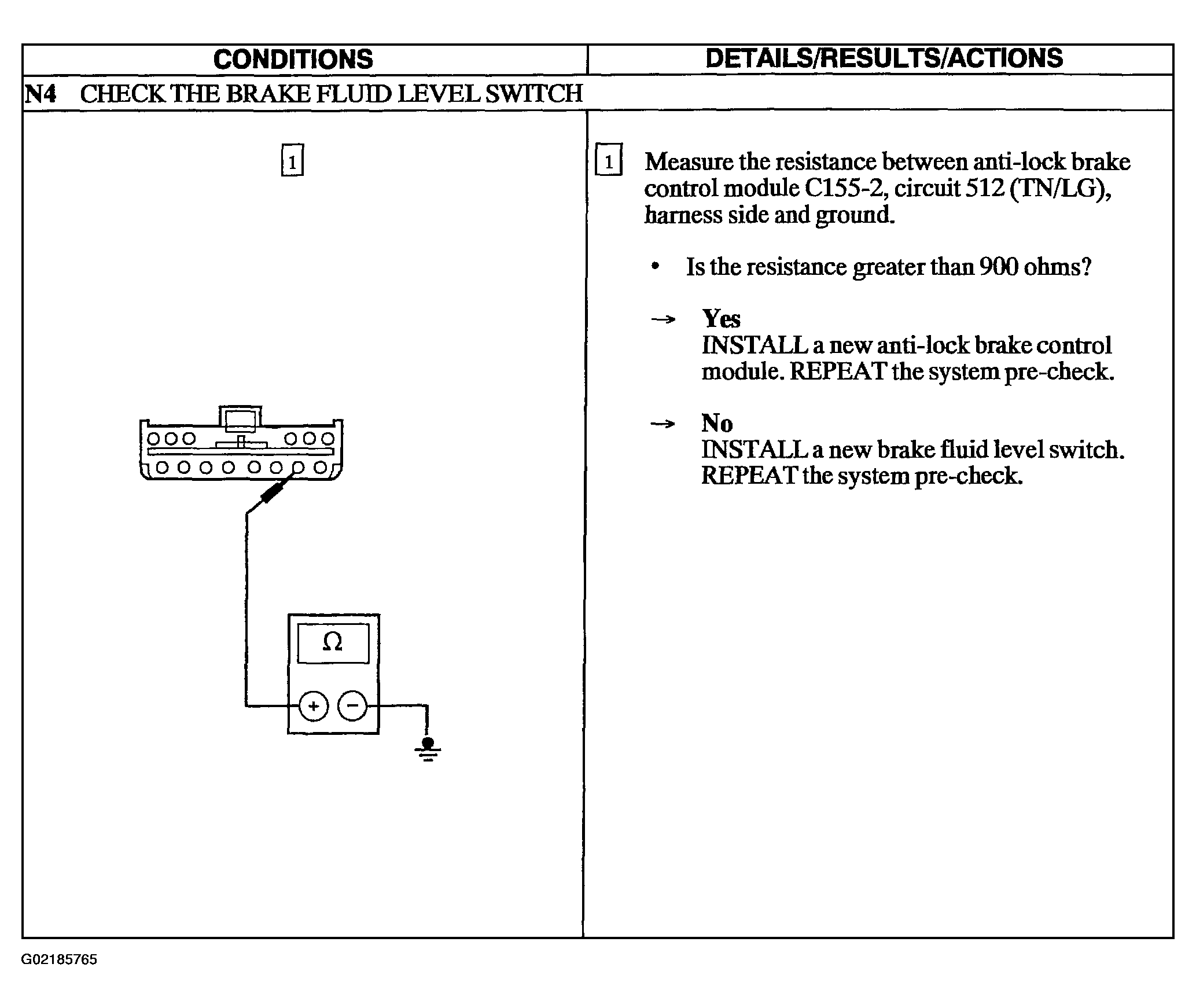

Fig 3: Pinpoint Test N: Diagnostic Trouble Code (DTC) 12 - Loss Of Hydraulic Brake Fluid During An Anti-Lock Stop Chart (N4)
G02185765Courtesy of FORD MOTOR CO.
