Pinpoint Test M: Diagnostic Trouble Code (DTC) 11 - Brake Pedal Position (BPP) Switch Always Closed

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

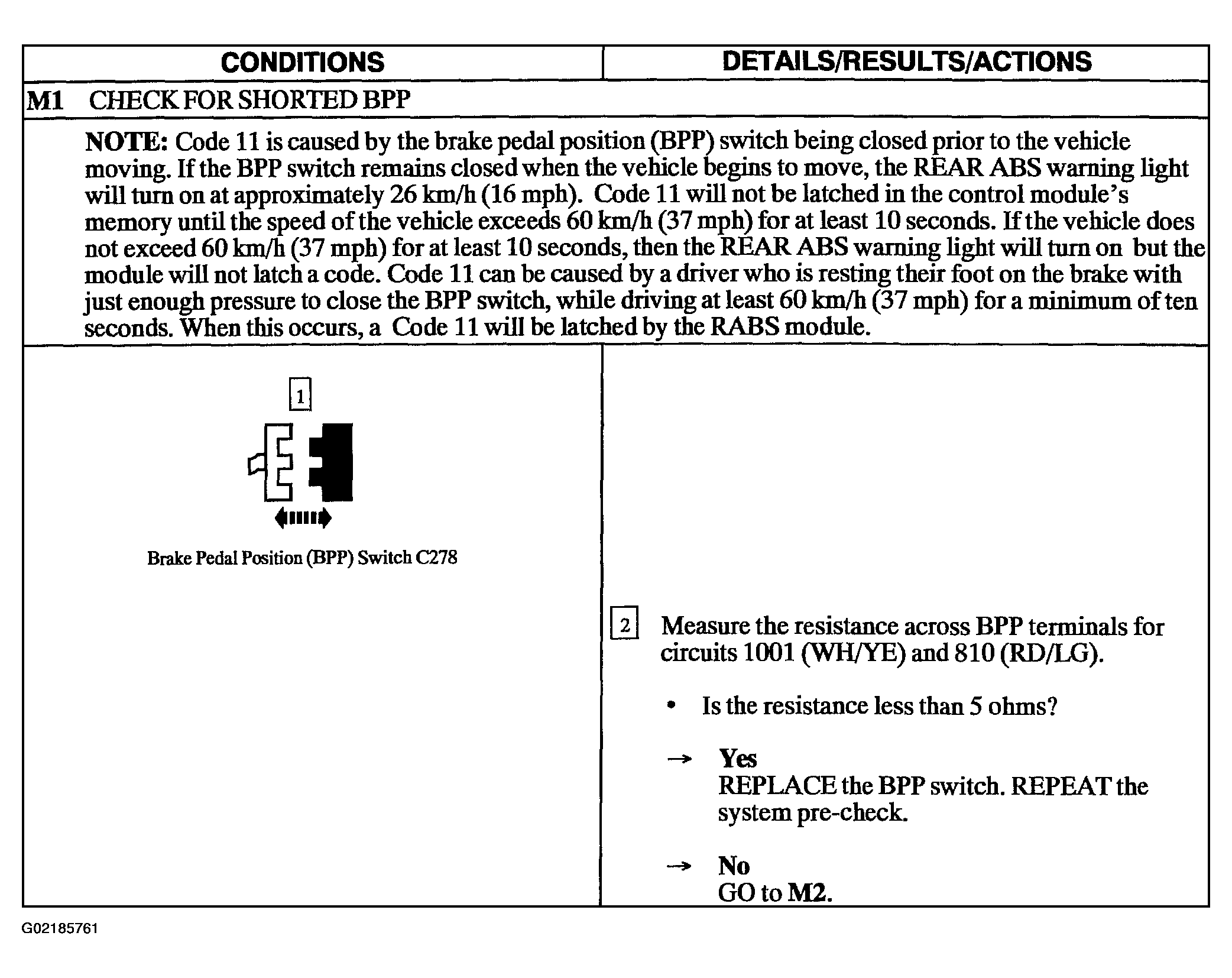

Fig 1: Pinpoint Test M: Diagnostic Trouble Code (DTC) 11 - Brake Pedal Position (BPP) Switch Always Closed Chart (M1)
G02185761Courtesy of FORD MOTOR CO.

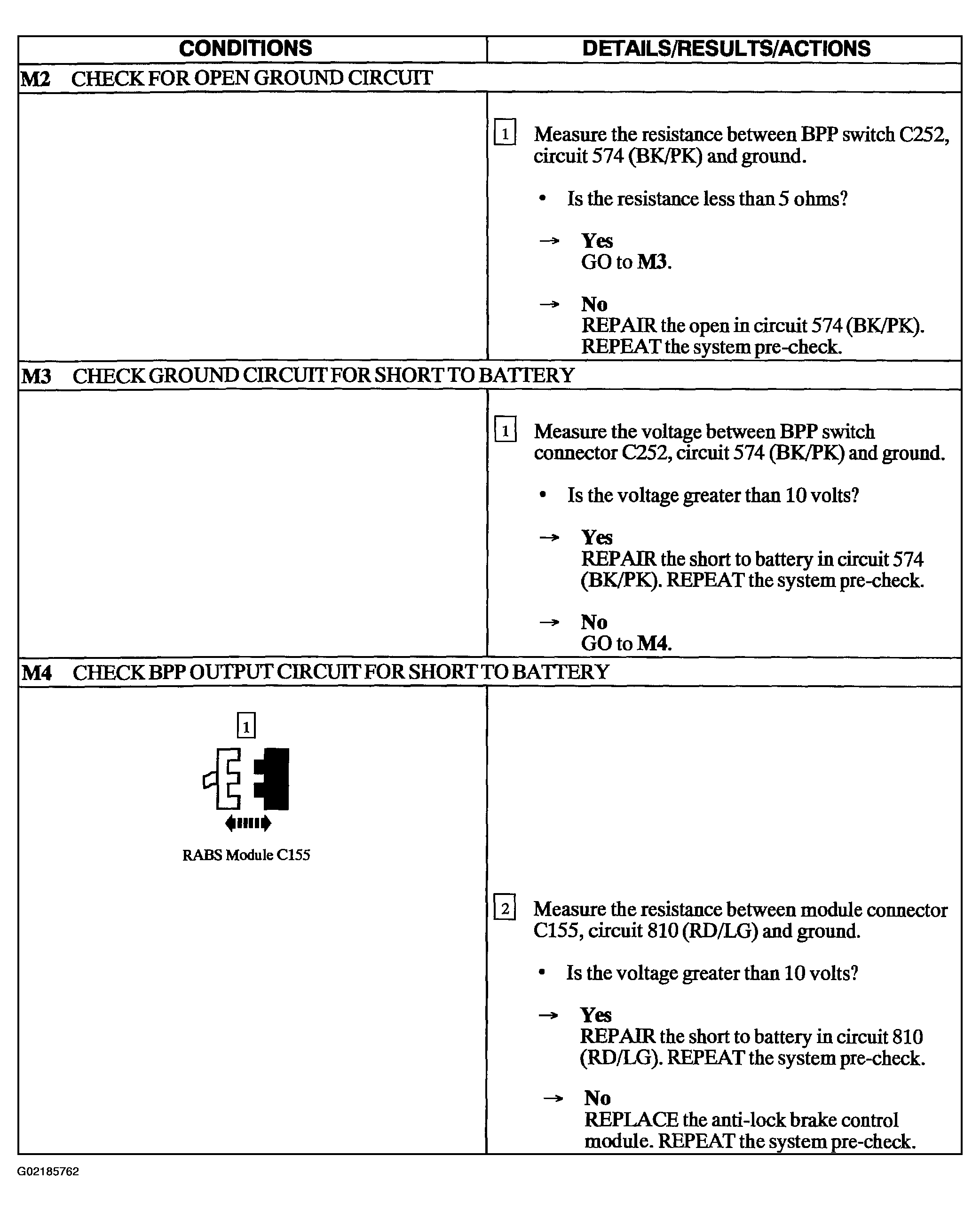

Fig 2: Pinpoint Test M: Diagnostic Trouble Code (DTC) 11 - Brake Pedal Position (BPP) Switch Always Closed Chart (M2 - M4)
G02185762Courtesy of FORD MOTOR CO.
