Pinpoint Test L: Diagnostic Trouble Code (DTC) 10 - Low Speed Sensor Resistance

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Records maintained by the manufacturer show that a module replacement rarely correct DTC 10.

Fig 1: Pinpoint Test L: Diagnostic Trouble Code (DTC) 10 - Low Speed Sensor Resistance Chart (L1)

Courtesy of FORD MOTOR CO.

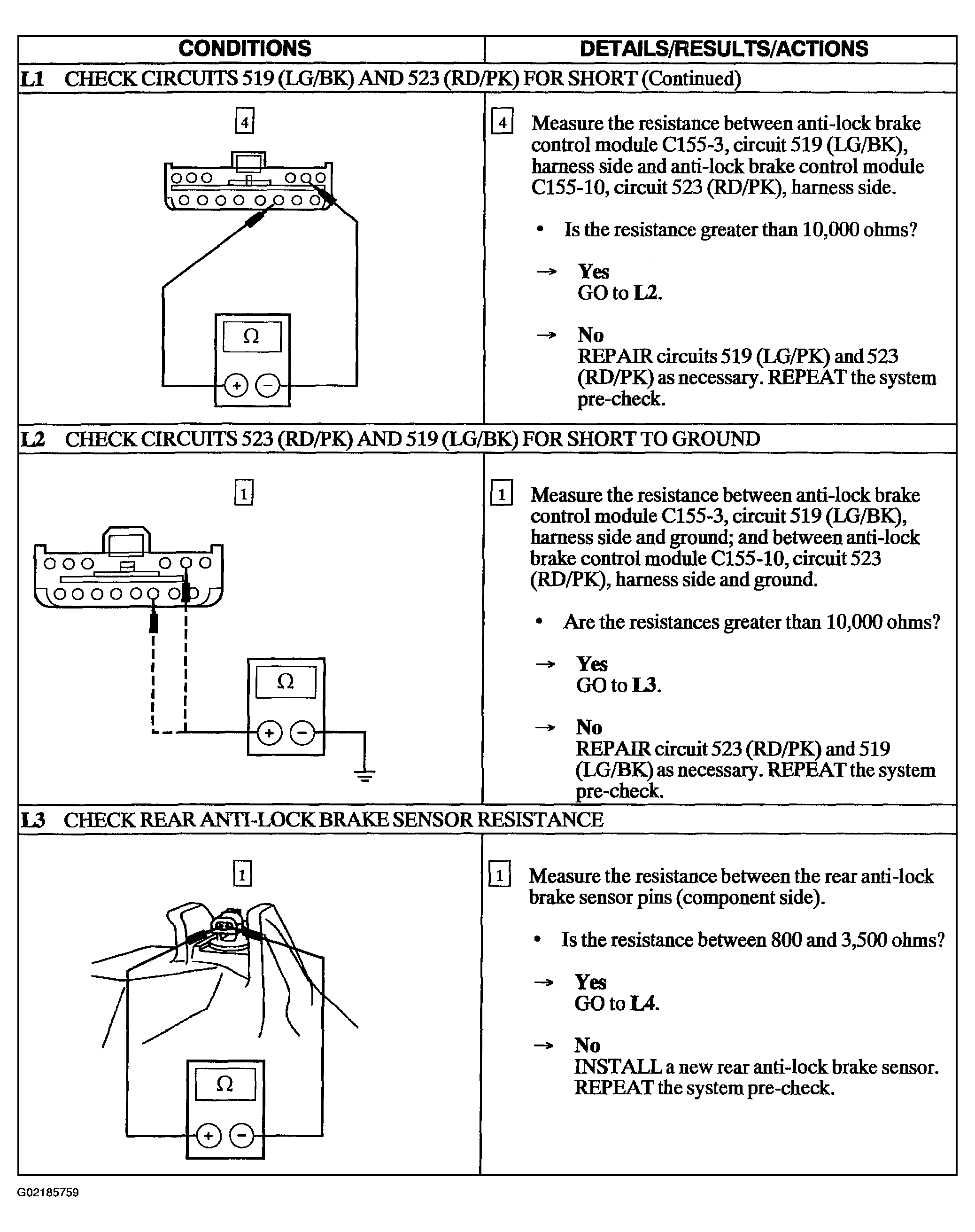

Fig 2: Pinpoint Test L: Diagnostic Trouble Code (DTC) 10 - Low Speed Sensor Resistance Chart (L1 Cont. - L3)

Courtesy of FORD MOTOR CO.

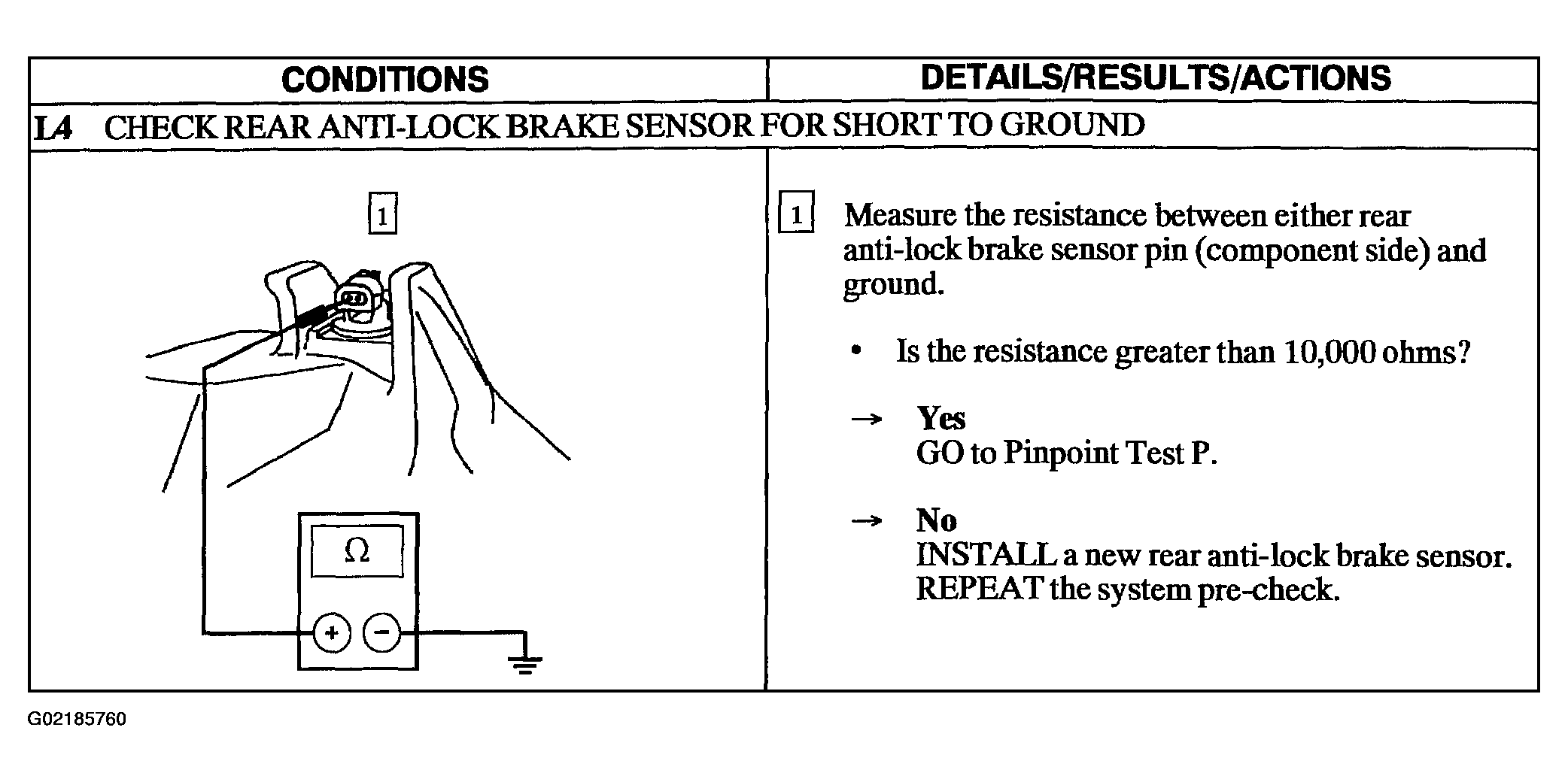

Fig 3: Pinpoint Test L: Diagnostic Trouble Code (DTC) 10 - Low Speed Sensor Resistance Chart (L4)

Courtesy of FORD MOTOR CO.
