Pinpoint Test K: Diagnostic Trouble Code (DTC) 9 - Speed Sensor High Resistance/Open Circuit

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Records maintained by the manufacturer show that a module replacement rarely correct DTC 9.

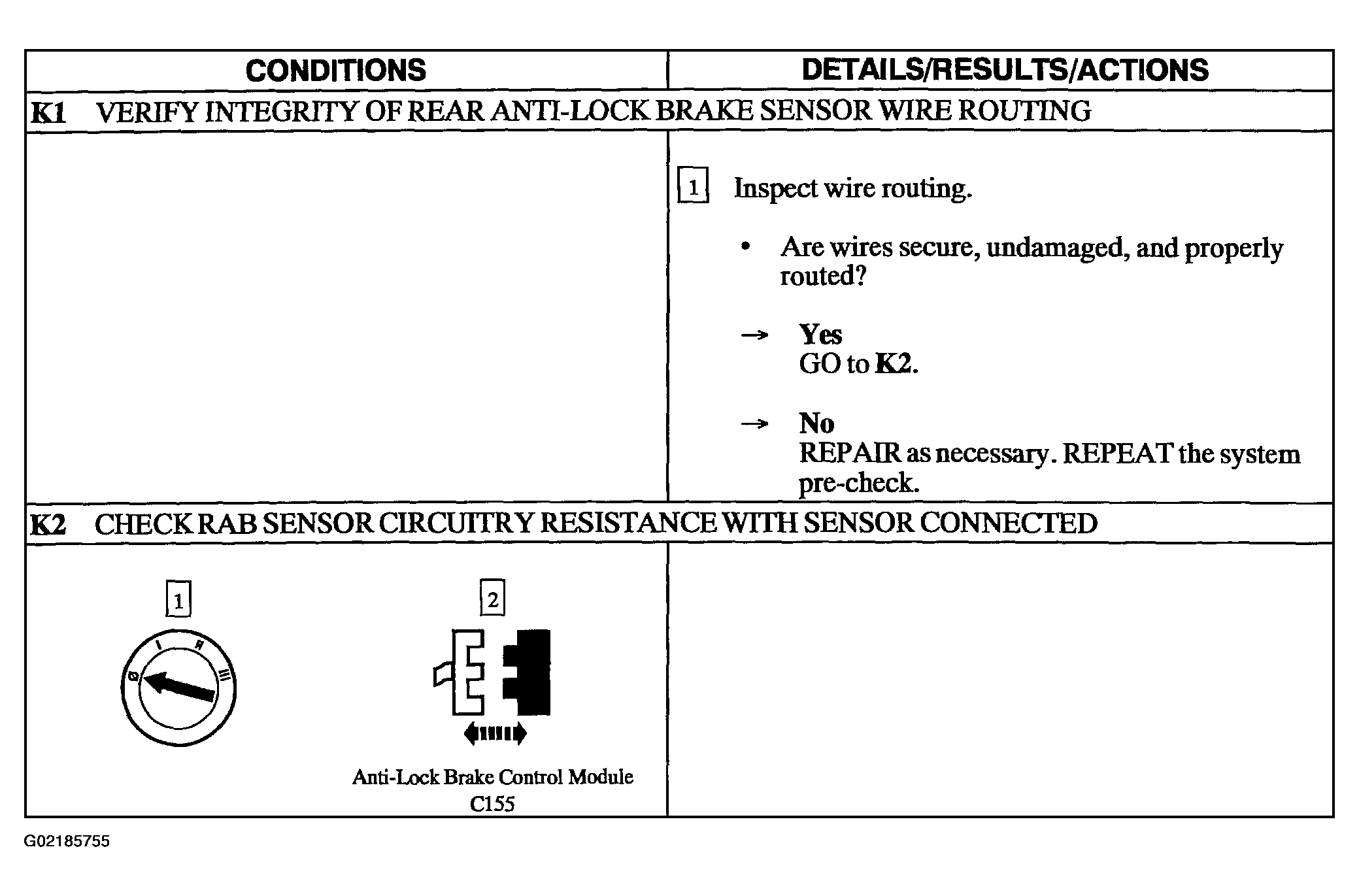

Fig 1: Pinpoint Test K: Diagnostic Trouble Code (DTC) 9 - Speed Sensor High Resistance/Open Circuit Chart (K1 & K2)

Courtesy of FORD MOTOR CO.

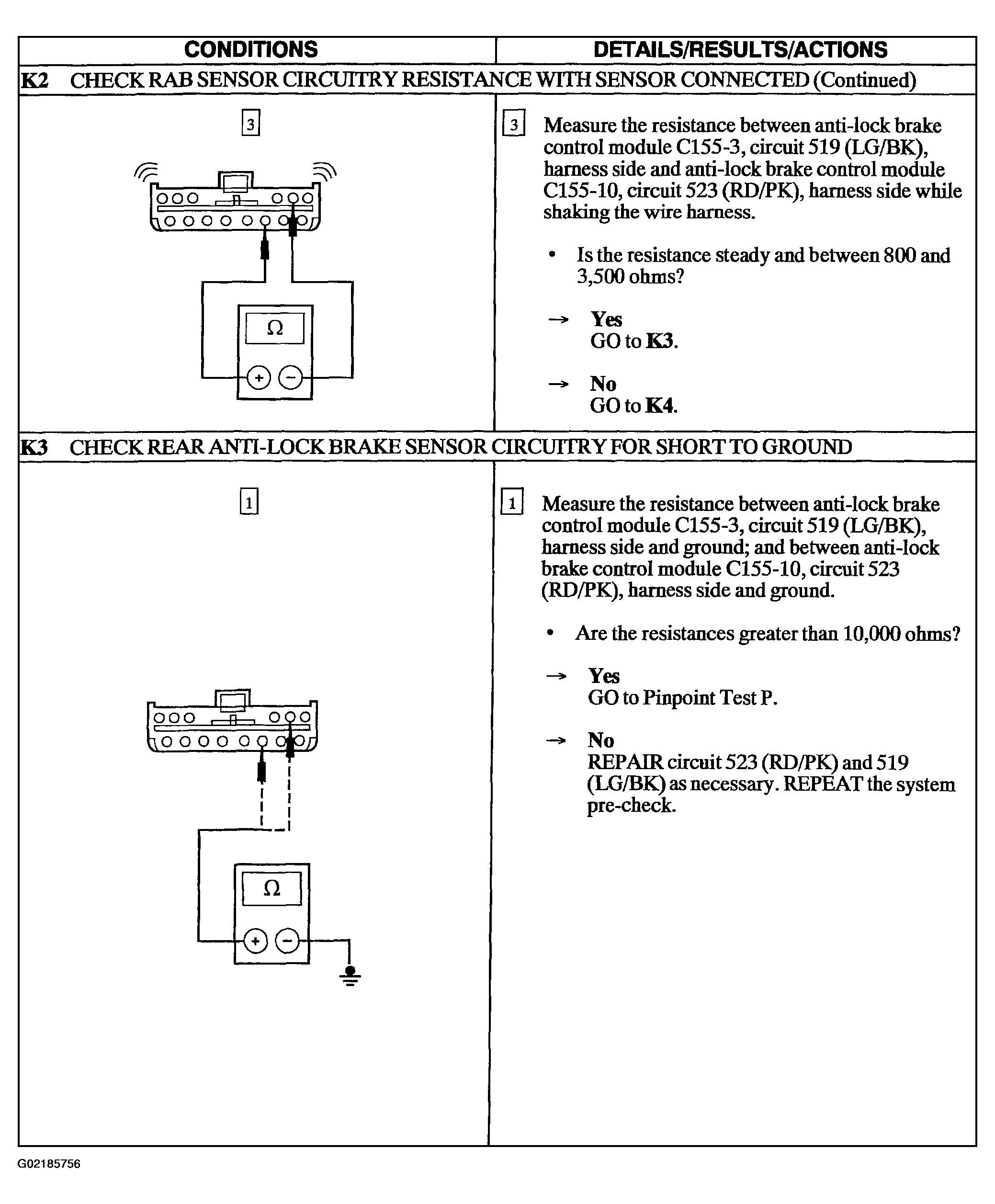

Fig 2: Pinpoint Test K: Diagnostic Trouble Code (DTC) 9 - Speed Sensor High Resistance/Open Circuit Chart (K2 Cont. & K3)

Courtesy of FORD MOTOR CO.

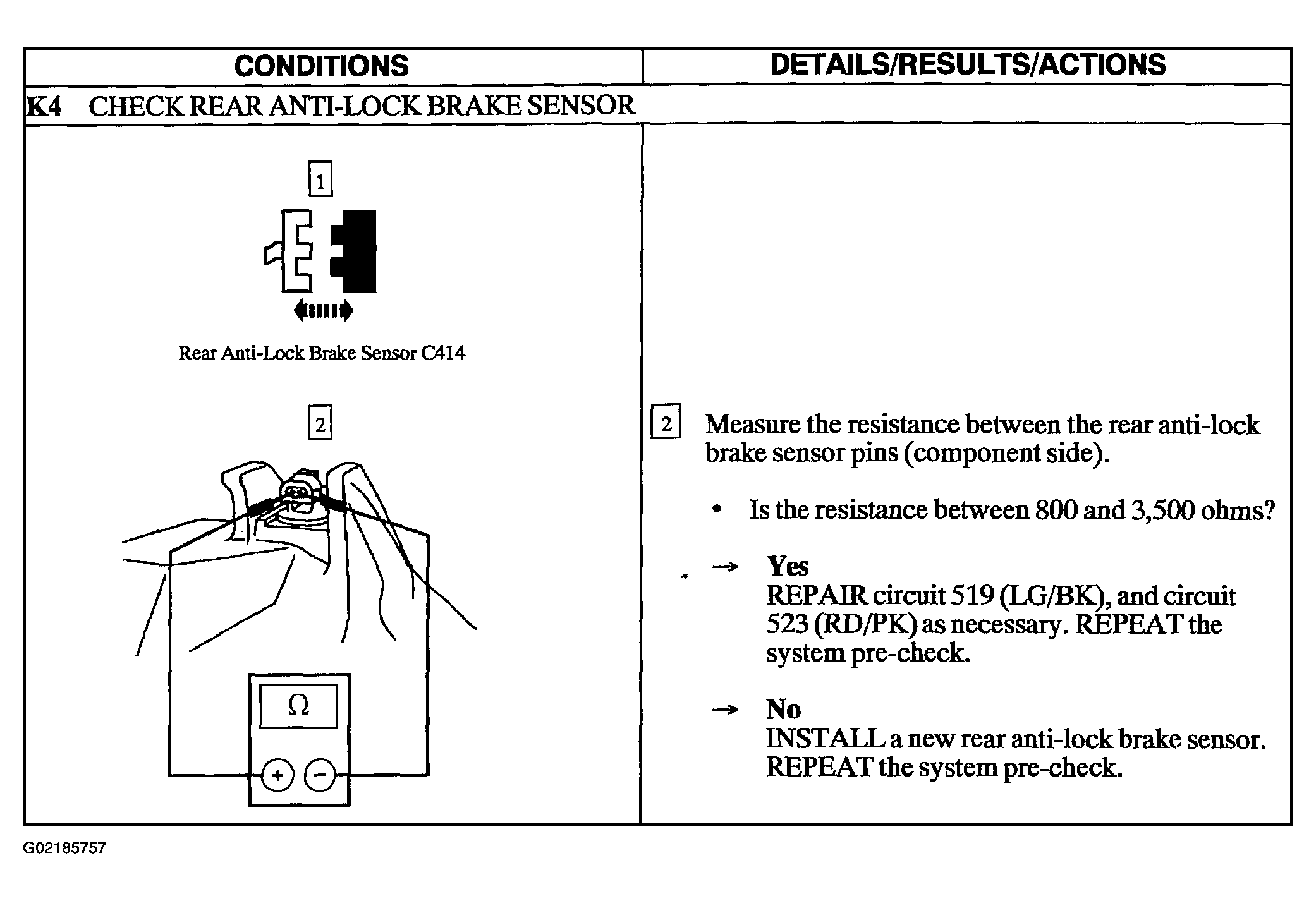

Fig 3: Pinpoint Test K: Diagnostic Trouble Code (DTC) 9 - Speed Sensor High Resistance/Open Circuit Chart (K4)

Courtesy of FORD MOTOR CO.
