Pinpoint Test J: Diagnostic Trouble Code (DTC) 8 - No Dump Solenoid During Self-Check
WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

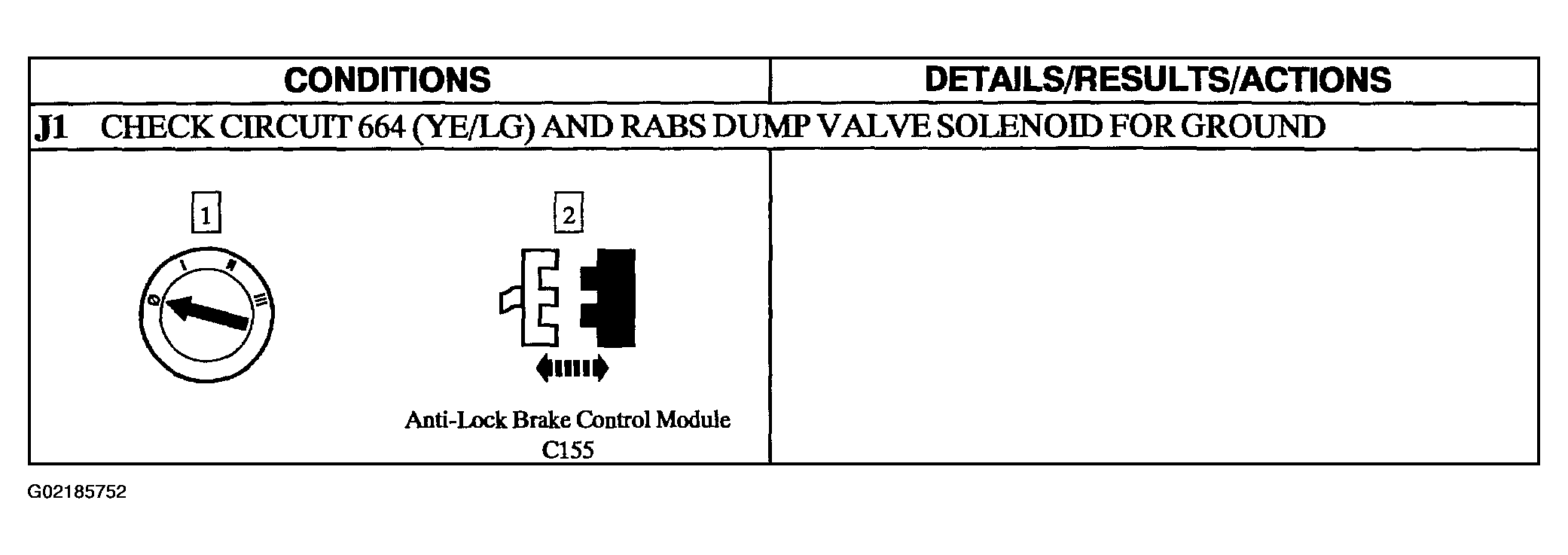

Fig 1: Pinpoint Test J: Diagnostic Trouble Code (DTC) 8 - No Dump Solenoid During Self-Check Chart (J1)
Courtesy of FORD MOTOR CO.

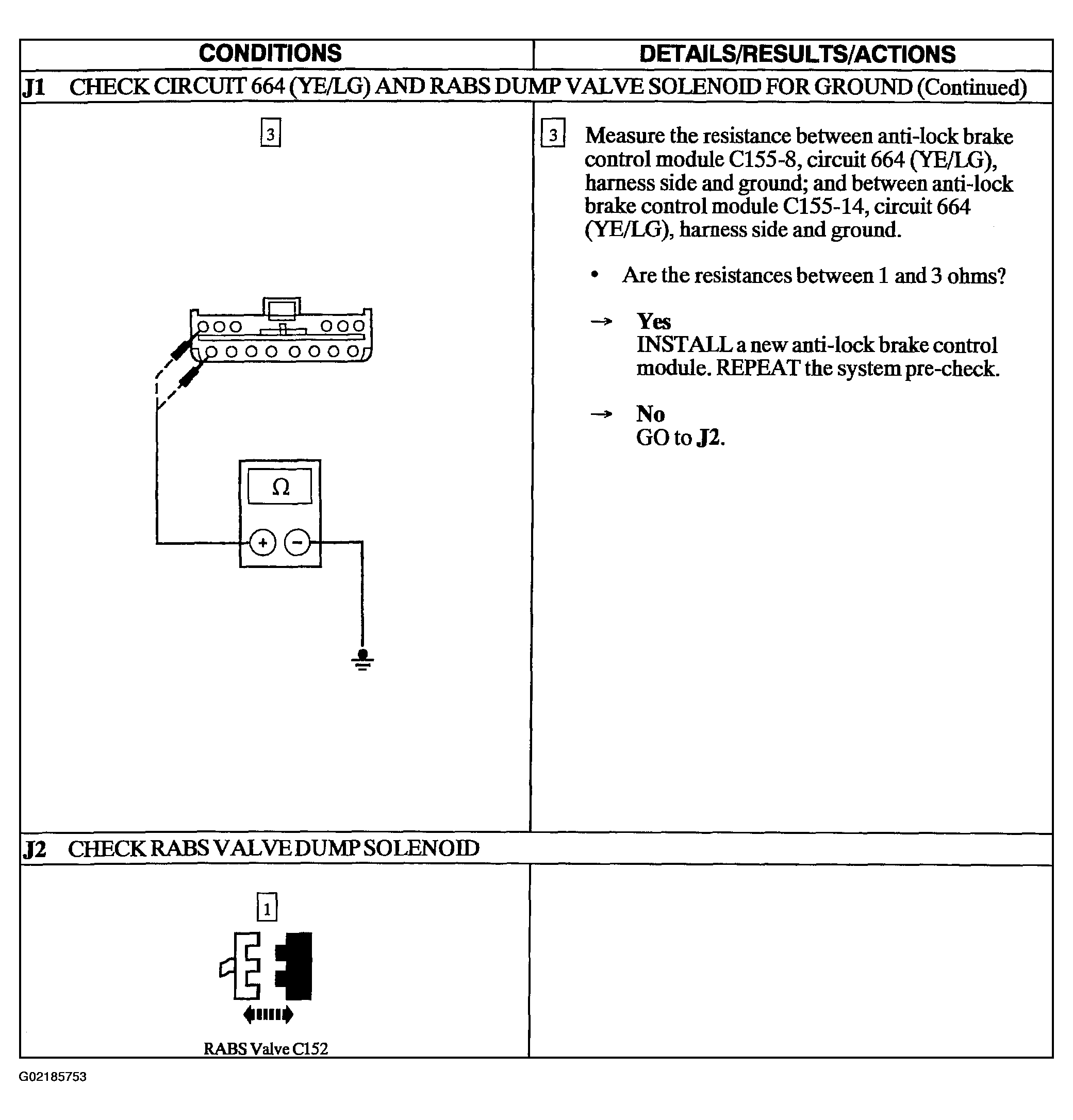

Fig 2: Pinpoint Test J: Diagnostic Trouble Code (DTC) 8 - No Dump Solenoid During Self-Check Chart (J1 Cont. & J2)
Courtesy of FORD MOTOR CO.

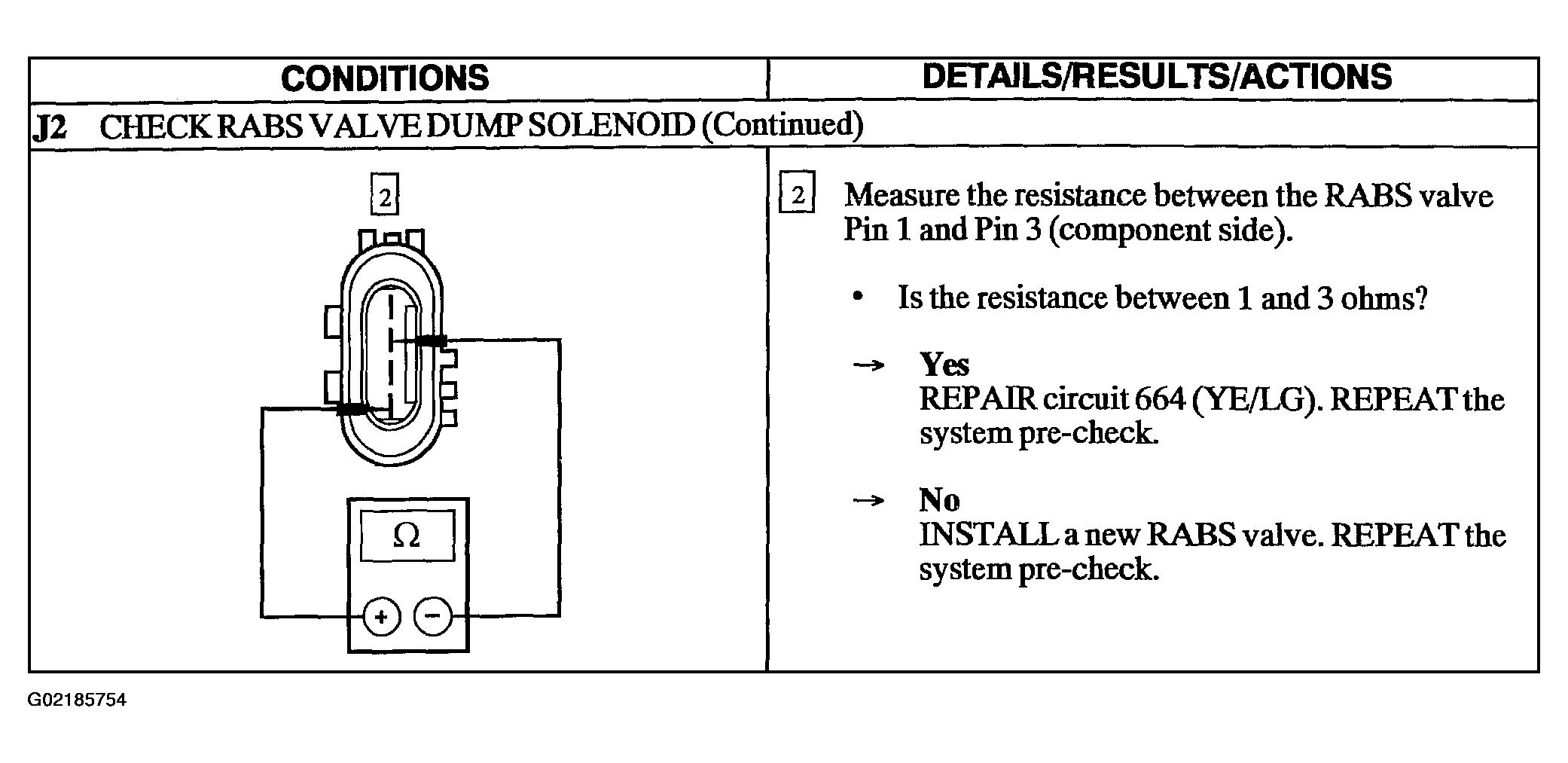

Fig 3: Pinpoint Test J: Diagnostic Trouble Code (DTC) 8 - No Dump Solenoid During Self-Check Chart (J2 Cont.)
