Pinpoint Test H: Diagnostic Trouble Code (DTC) 6 - Erratic Rear Anti-Lock Brake Sensor Circuit

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Records maintained by the manufacturer show that a module replacement rarely corrects DTC 6.

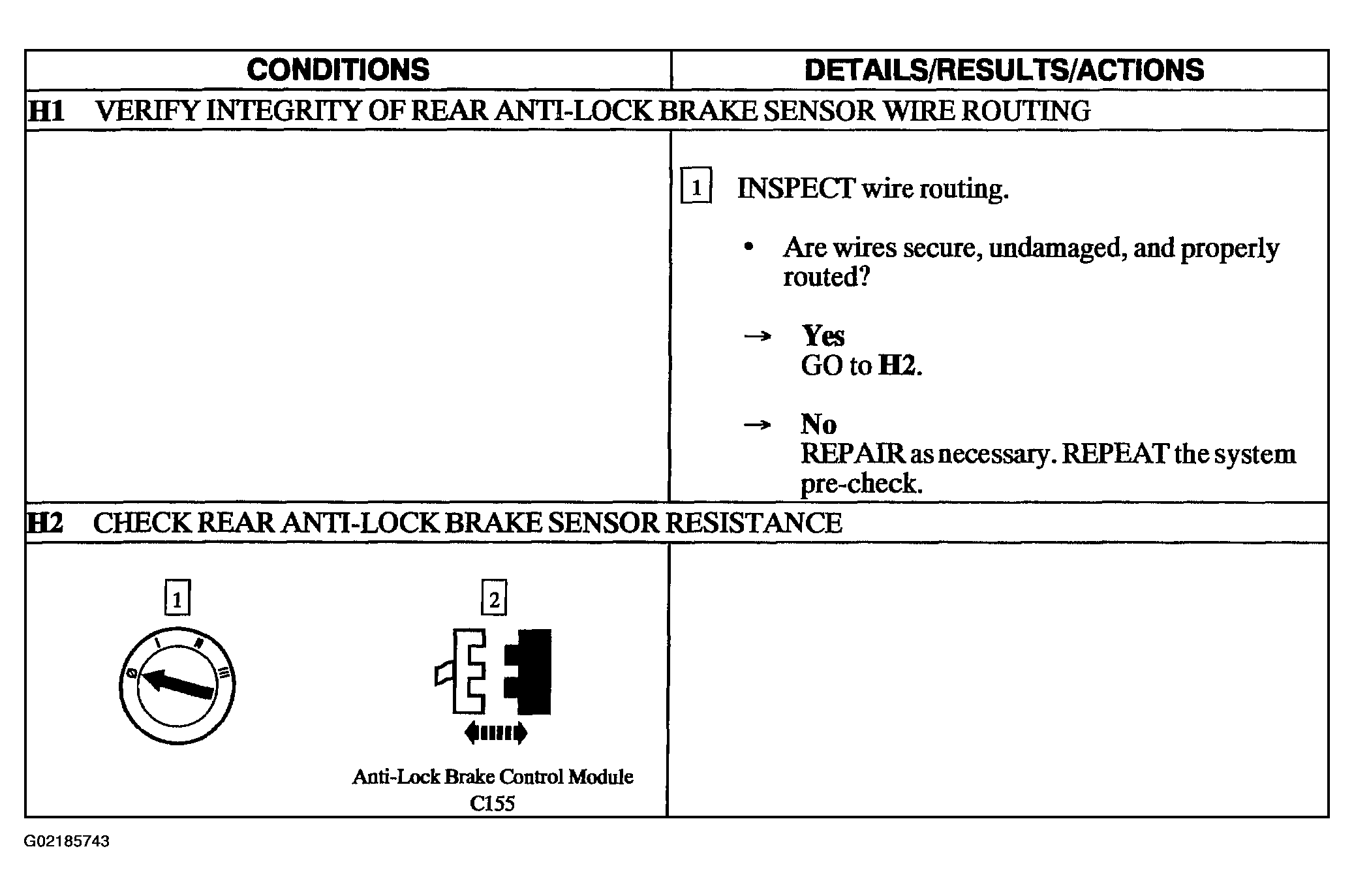

Fig 1: Pinpoint Test H: Diagnostic Trouble Code (DTC) 6 - Erratic Rear Anti-Lock Brake Sensor Circuit Chart (H1 & H2)

Courtesy of FORD MOTOR CO.

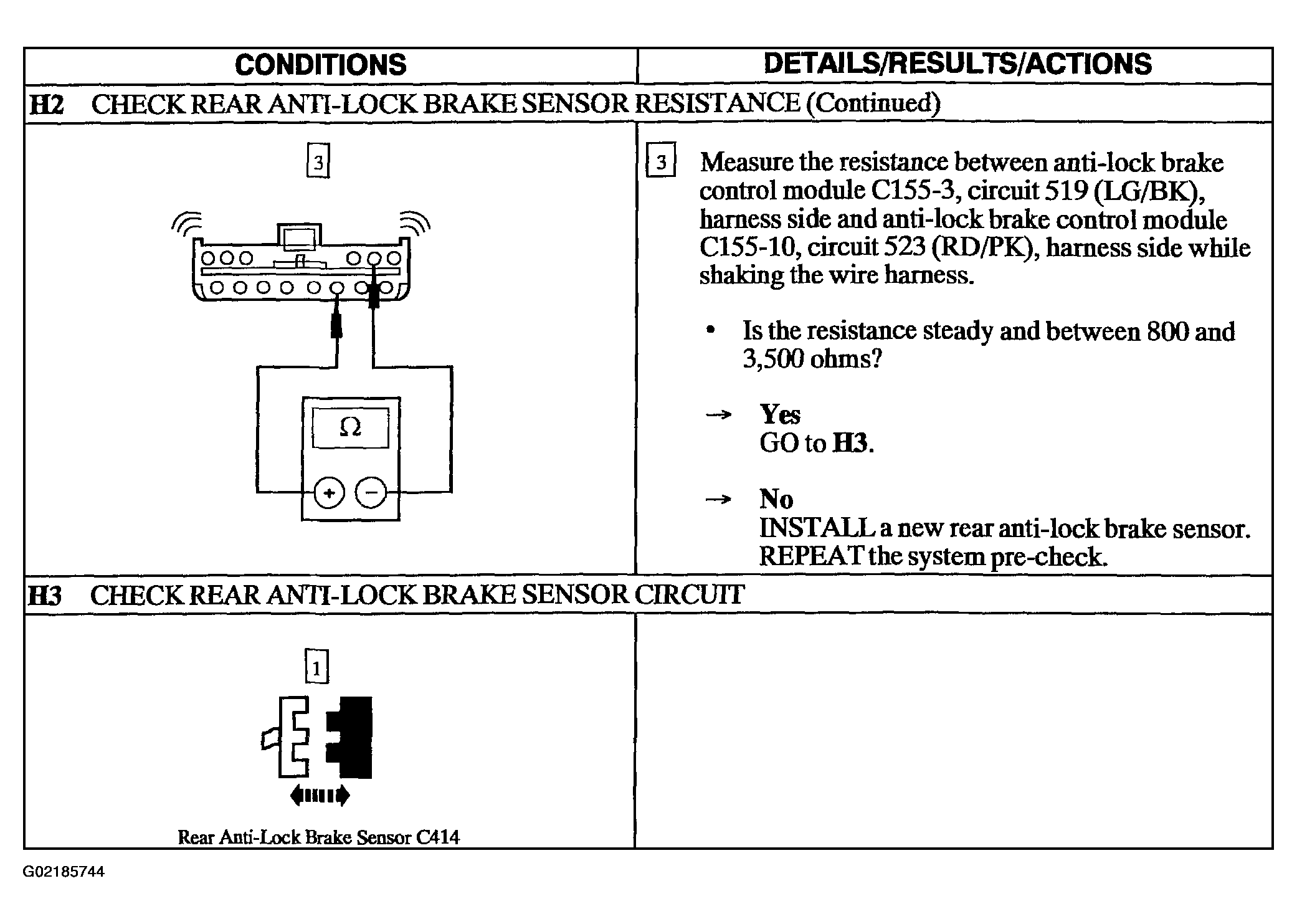

Fig 2: Pinpoint Test H: Diagnostic Trouble Code (DTC) 6 - Erratic Rear Anti-Lock Brake Sensor Circuit Chart (H2 Cont. & H3)

Courtesy of FORD MOTOR CO.

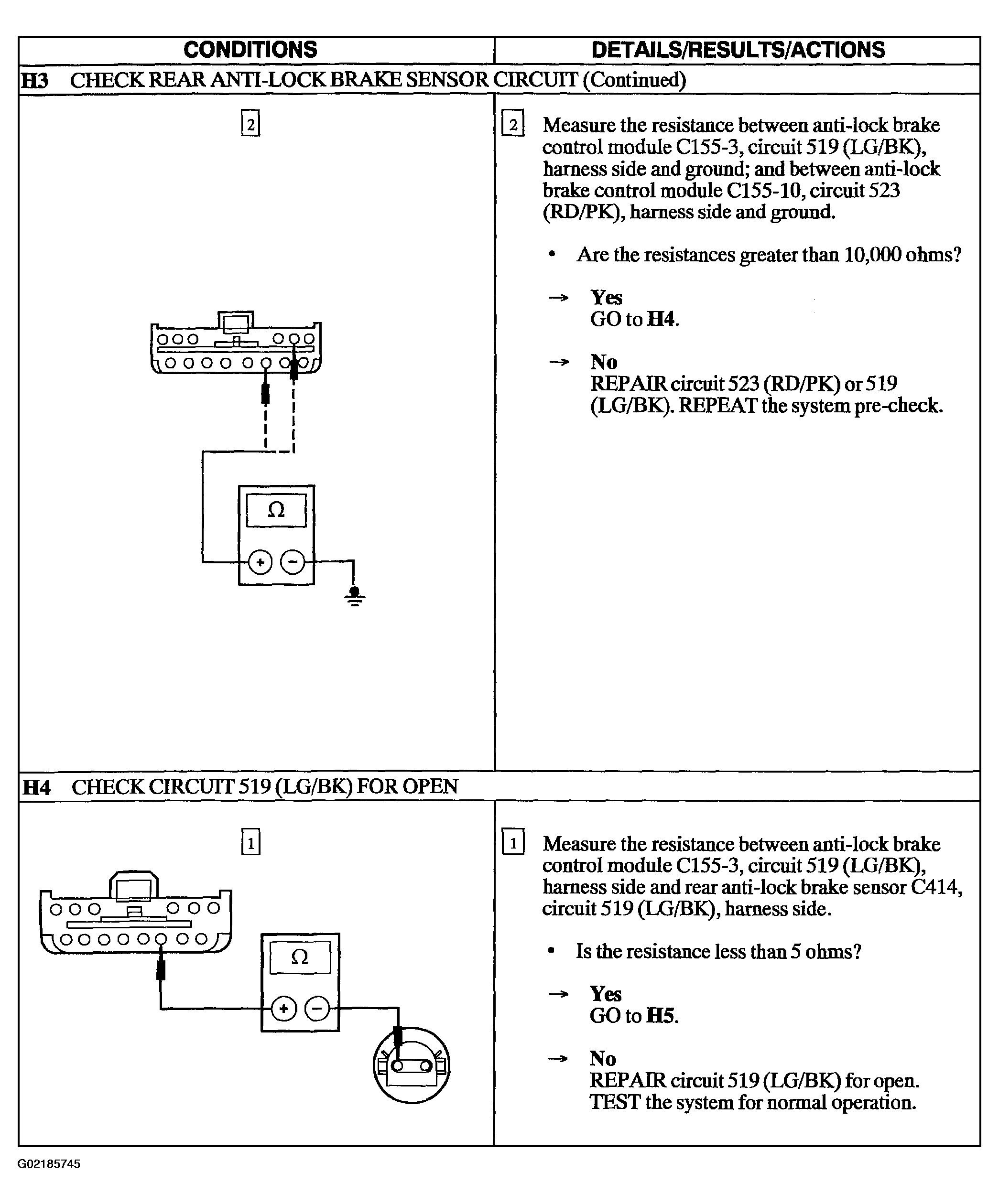

Fig 3: Pinpoint Test H: Diagnostic Trouble Code (DTC) 6 - Erratic Rear Anti-Lock Brake Sensor Circuit Chart (H3 Cont. & H4)

Courtesy of FORD MOTOR CO.

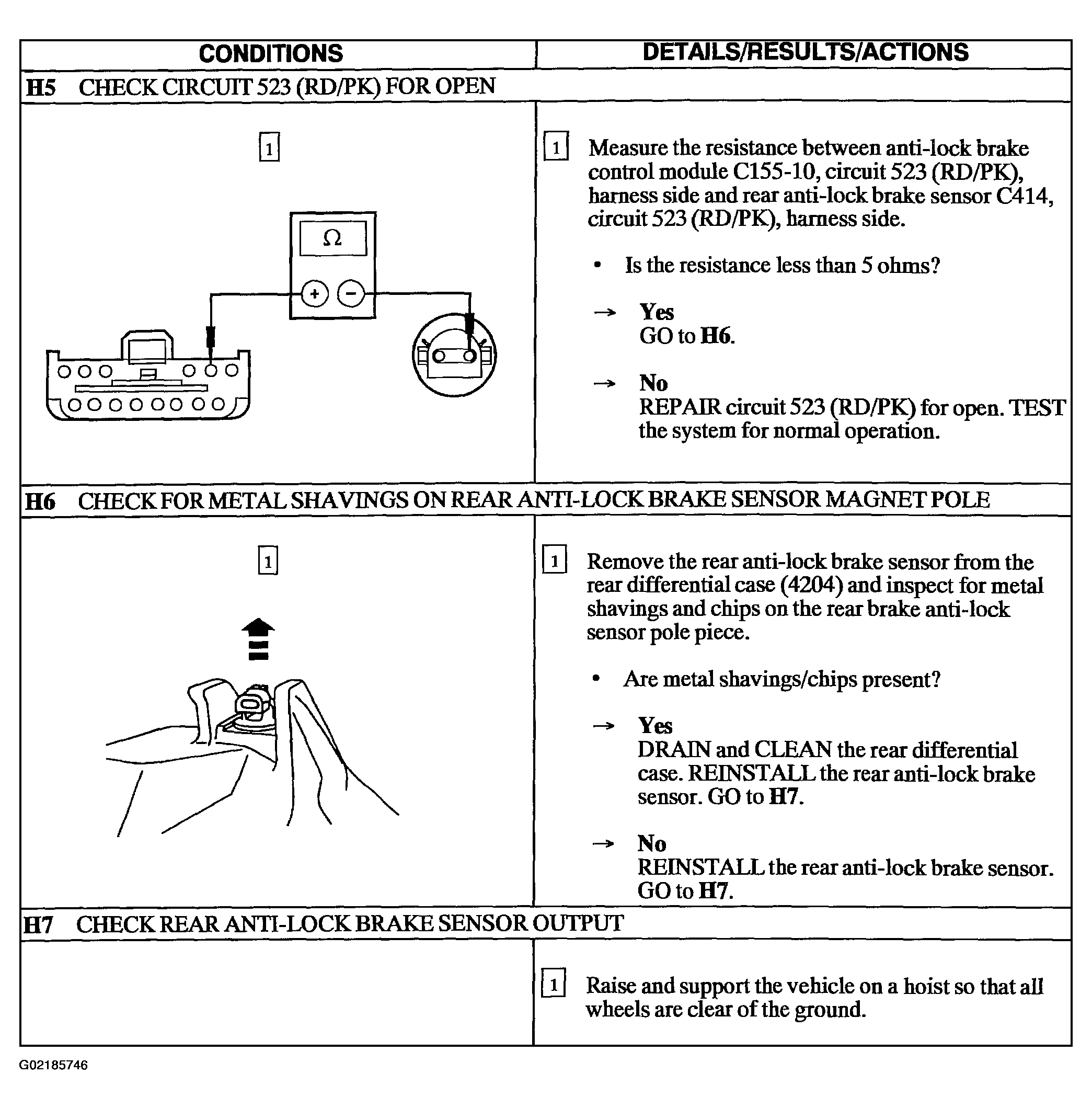

Fig 4: Pinpoint Test H: Diagnostic Trouble Code (DTC) 6 - Erratic Rear Anti-Lock Brake Sensor Circuit Chart (H5 - H7)

Courtesy of FORD MOTOR CO.

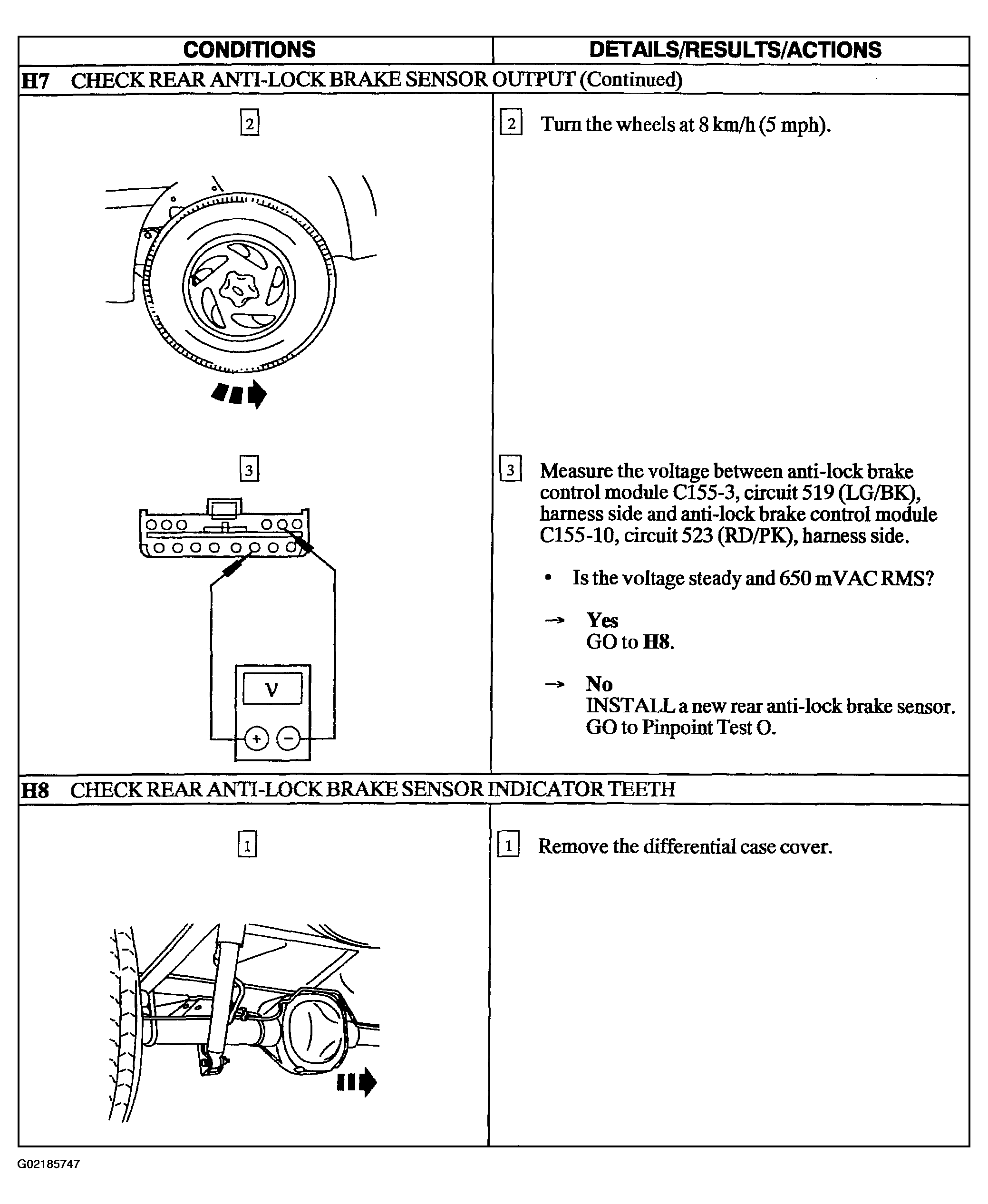

Fig 5: Pinpoint Test H: Diagnostic Trouble Code (DTC) 6 - Erratic Rear Anti-Lock Brake Sensor Circuit Chart (H7 Cont. & H8)

Courtesy of FORD MOTOR CO.

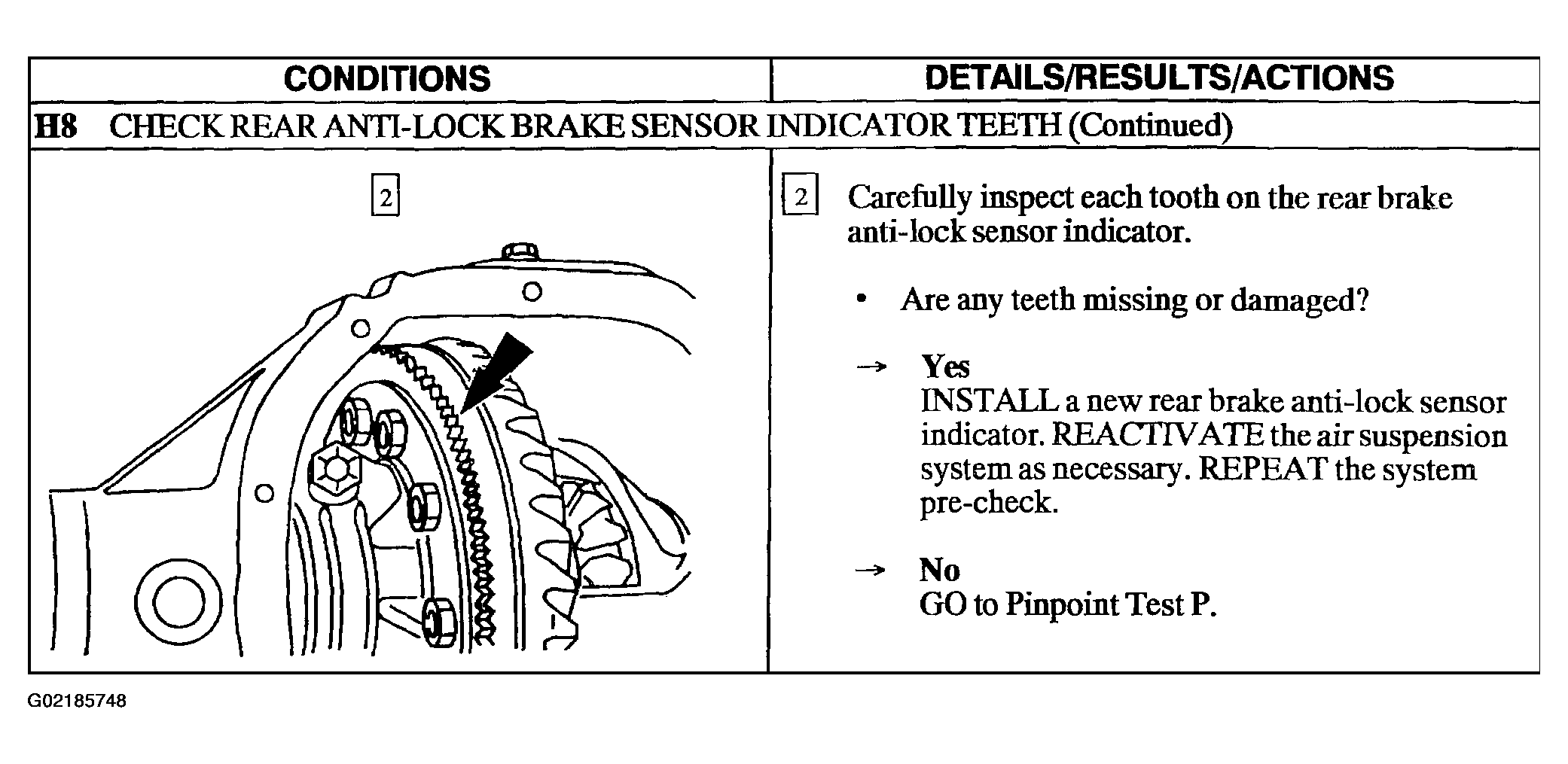

Fig 6: Pinpoint Test H: Diagnostic Trouble Code (DTC) 6 - Erratic Rear Anti-Lock Brake Sensor Circuit Chart (H8 Cont.)

Courtesy of FORD MOTOR CO.
