Pinpoint Test G: Diagnostic Trouble Code (DTC) 5 - Excessive Dump Solenoid Activity

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

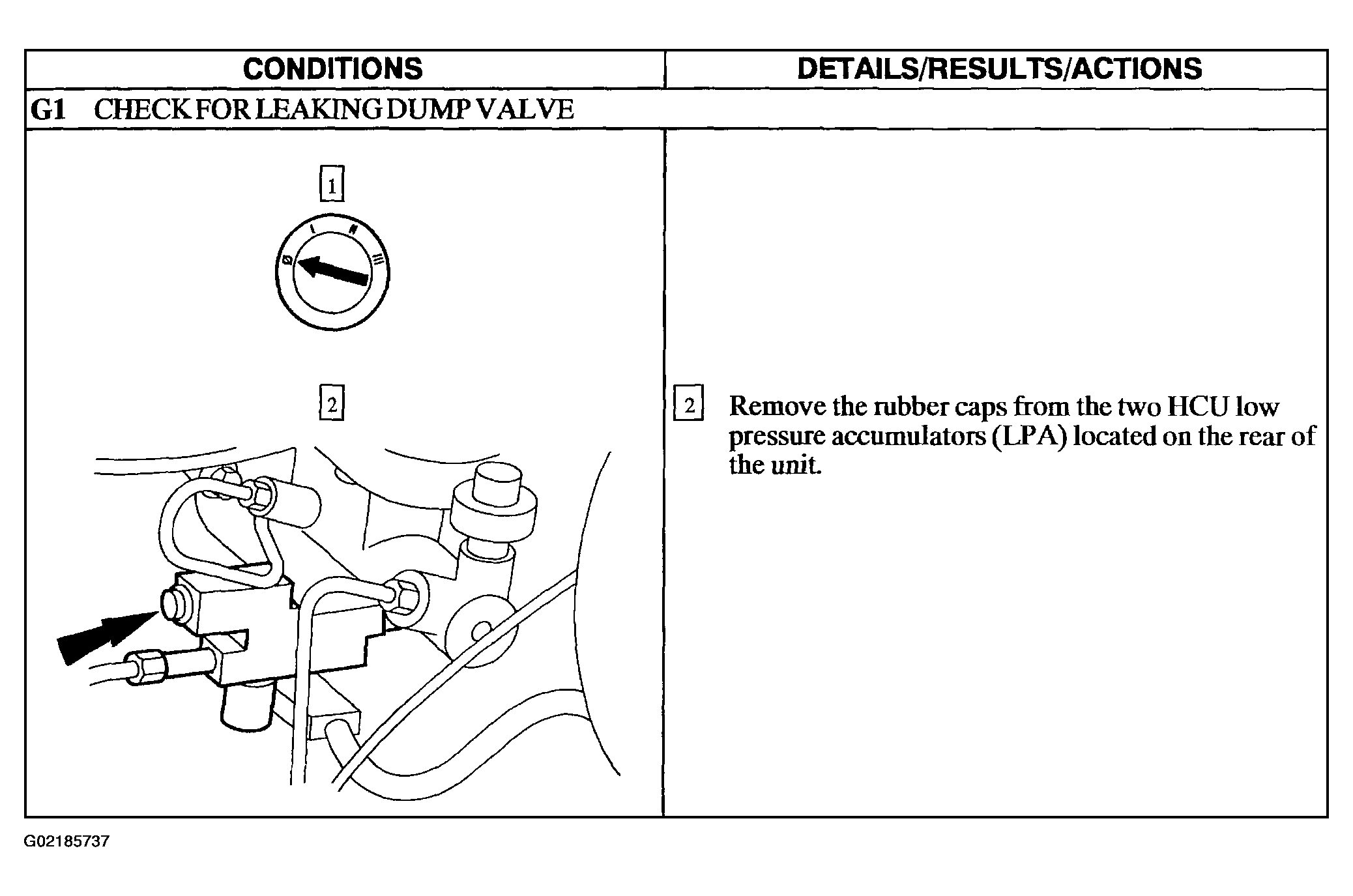

Fig 1: Pinpoint Test G: Diagnostic Trouble Code (DTC) 5 - Excessive Dump Solenoid Activity Chart (G1)
G02185737Courtesy of FORD MOTOR CO.

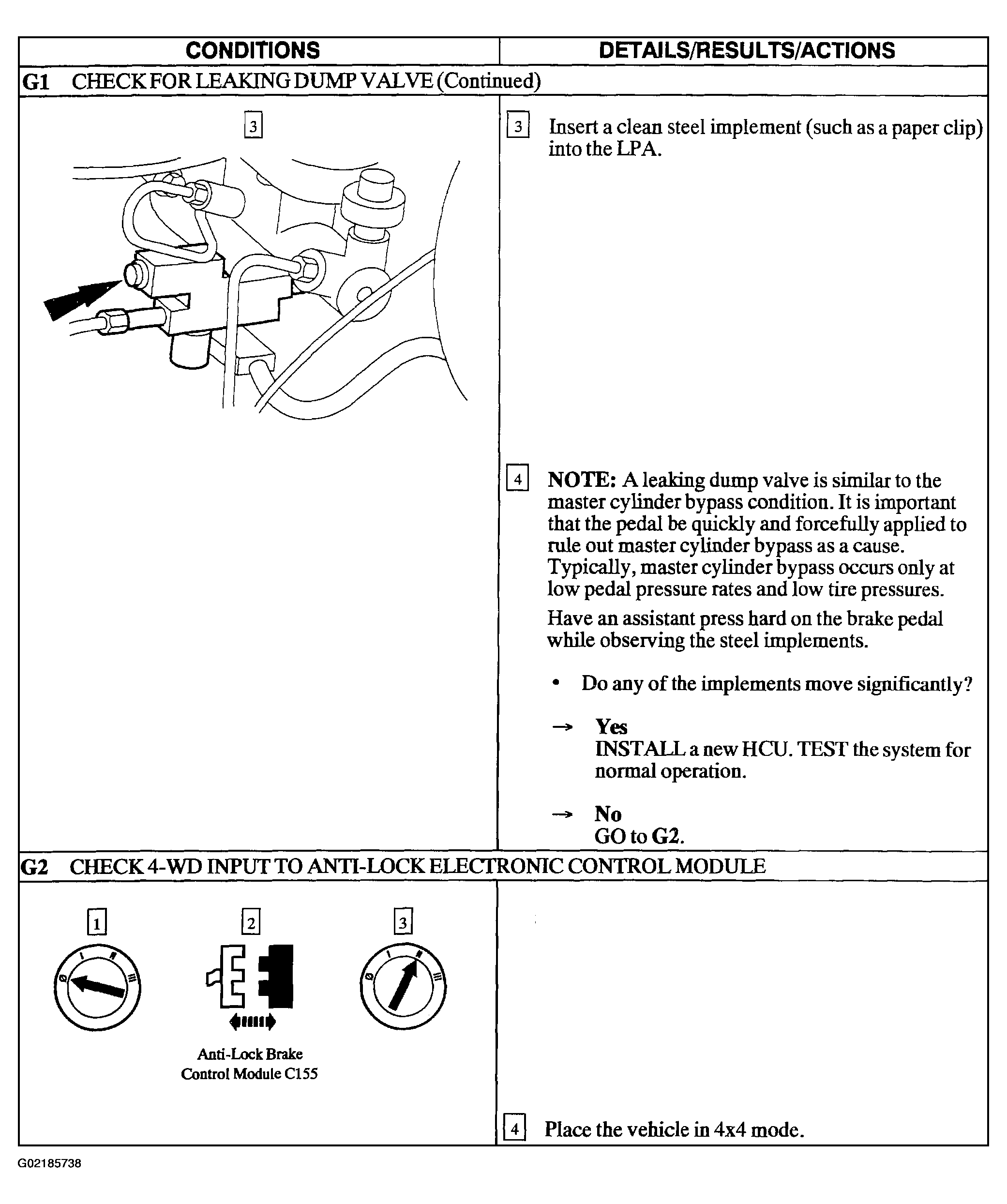

Fig 2: Pinpoint Test G: Diagnostic Trouble Code (DTC) 5 - Excessive Dump Solenoid Activity Chart (G1 Cont. & G2)
G02185738Courtesy of FORD MOTOR CO.

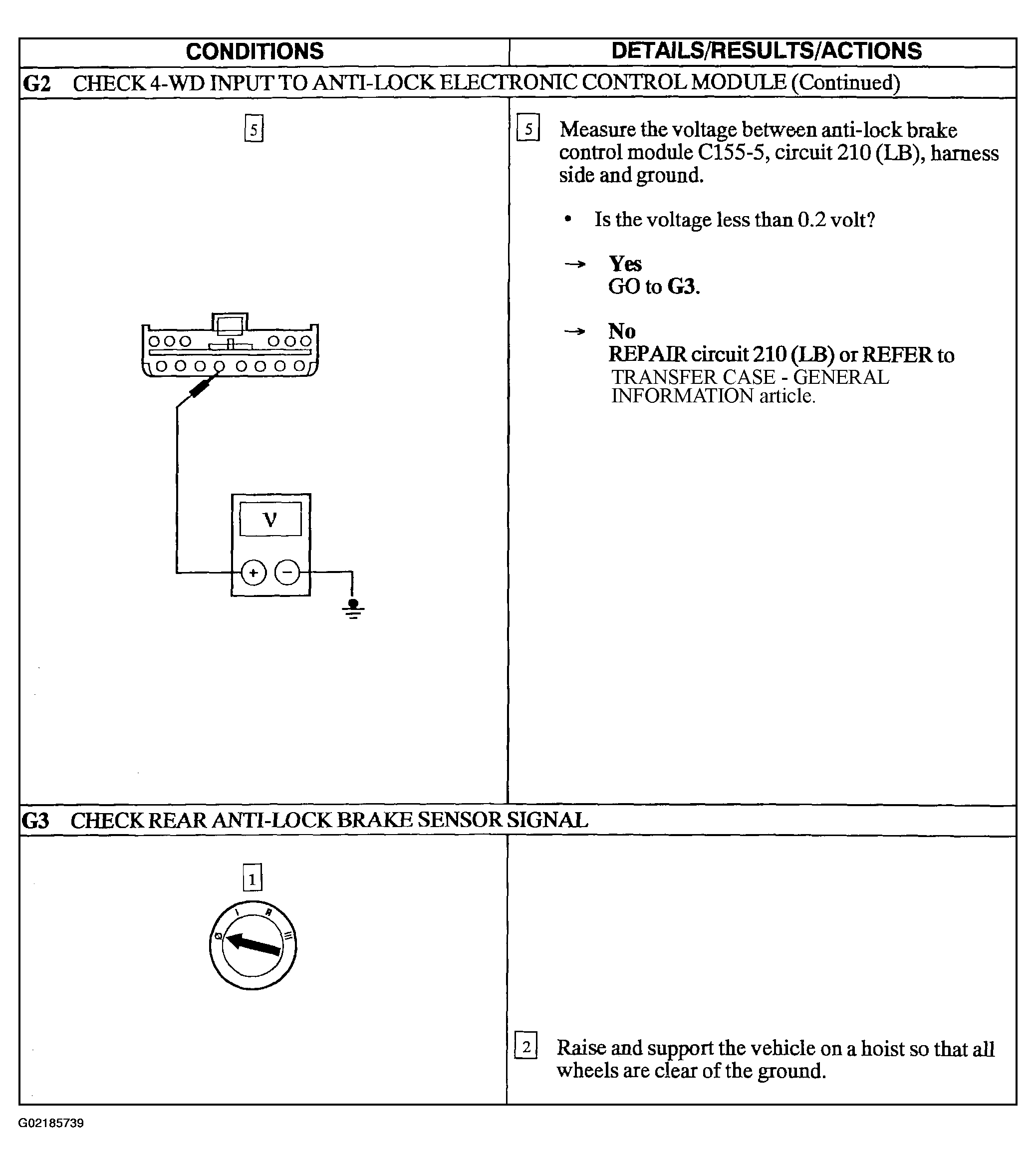

Fig 3: Pinpoint Test G: Diagnostic Trouble Code (DTC) 5 - Excessive Dump Solenoid Activity Chart (G2 Cont. & G3)
G02185739Courtesy of FORD MOTOR CO.

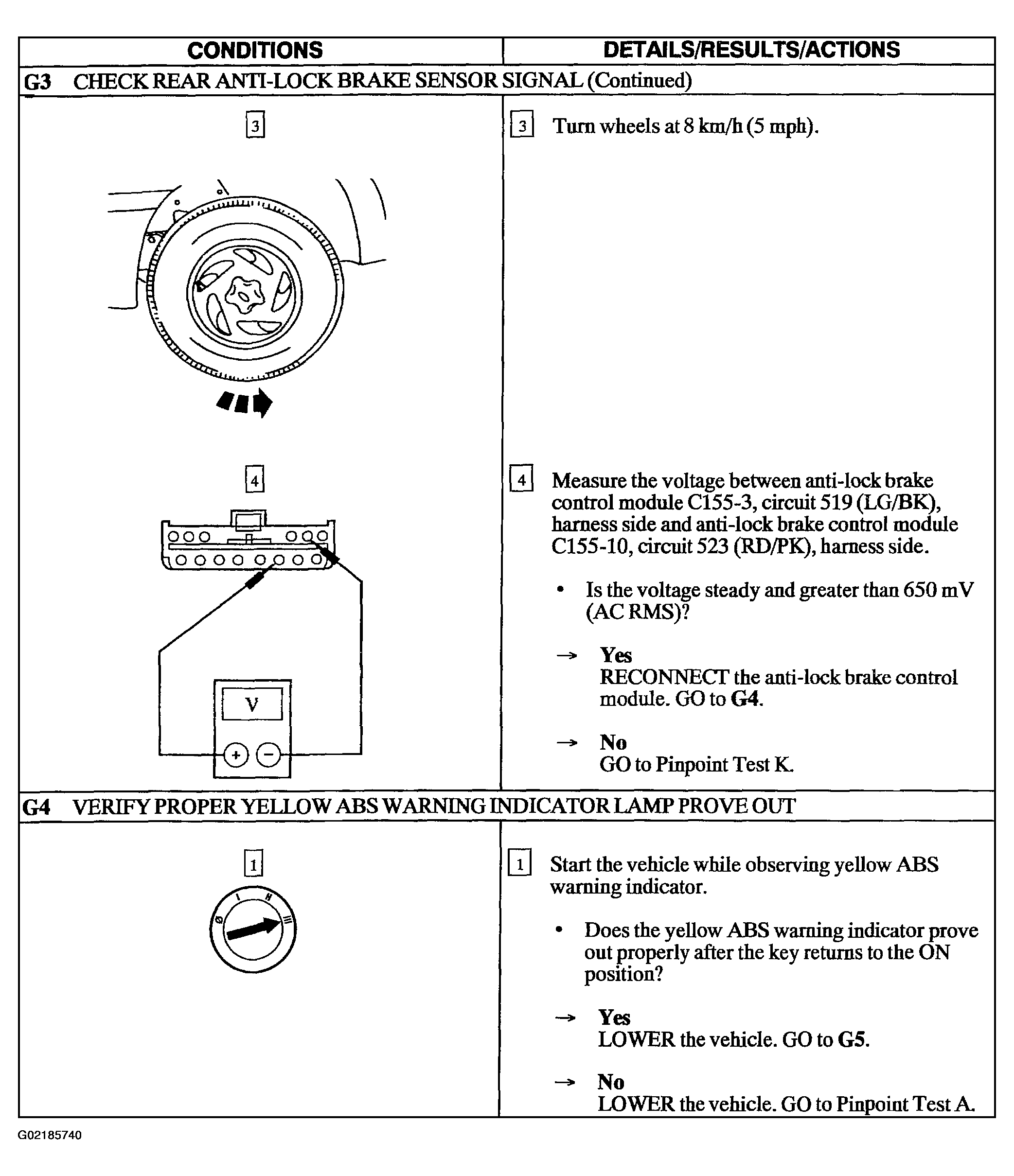

Fig 4: Pinpoint Test G: Diagnostic Trouble Code (DTC) 5 - Excessive Dump Solenoid Activity Chart (G3 Cont. & G4)
G02185740Courtesy of FORD MOTOR CO.

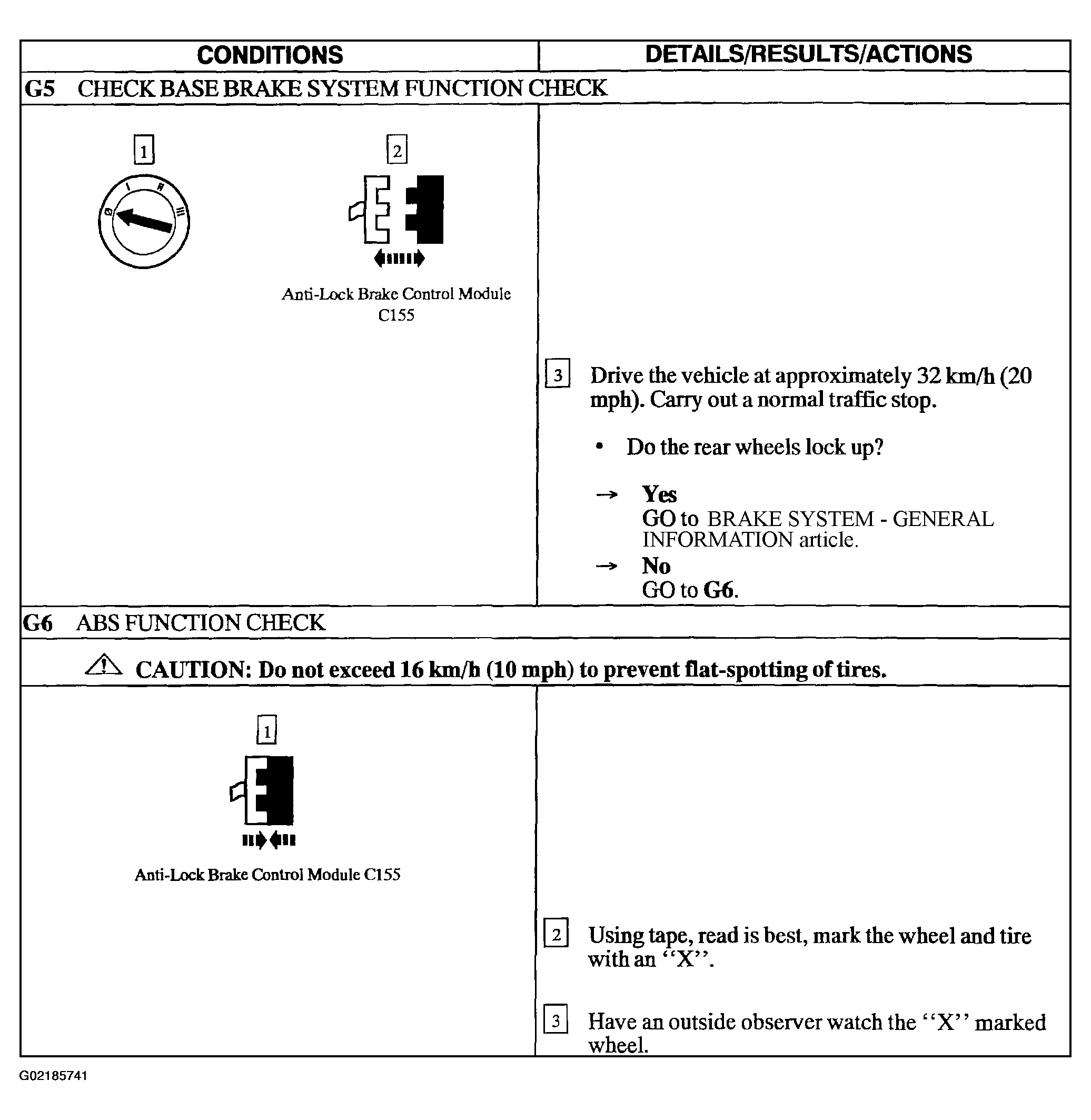

Fig 5: Pinpoint Test G: Diagnostic Trouble Code (DTC) 5 - Excessive Dump Solenoid Activity Chart (G5 & G6)
G02185741Courtesy of FORD MOTOR CO.

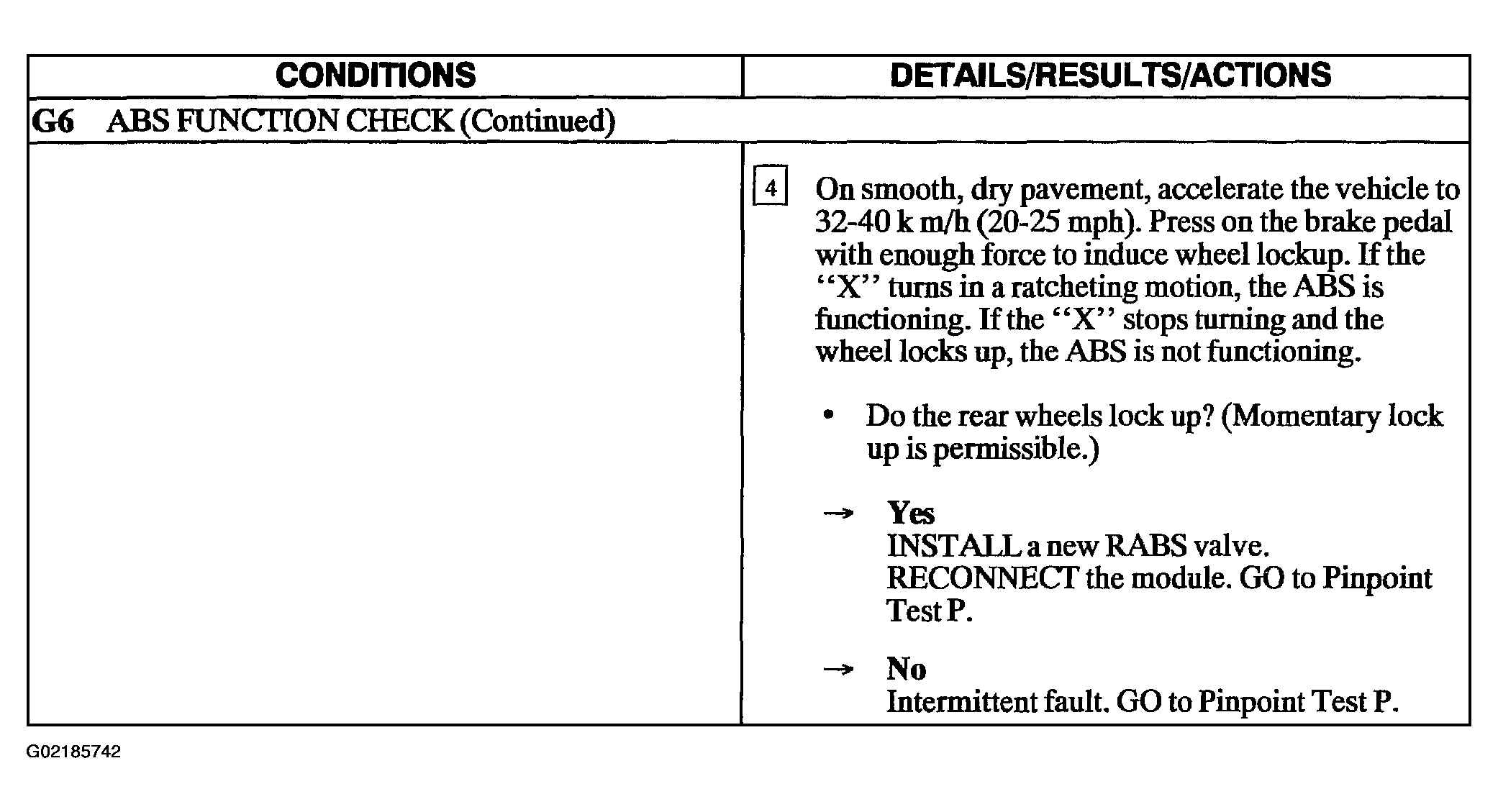

Fig 6: Pinpoint Test G: Diagnostic Trouble Code (DTC) 5 - Excessive Dump Solenoid Activity Chart (G6 Cont.)
G02185742Courtesy of FORD MOTOR CO.
