Pinpoint Test E: Diagnostic Trouble Code (DTC) 3 - Open RABS Dump Solenoid Circuit

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

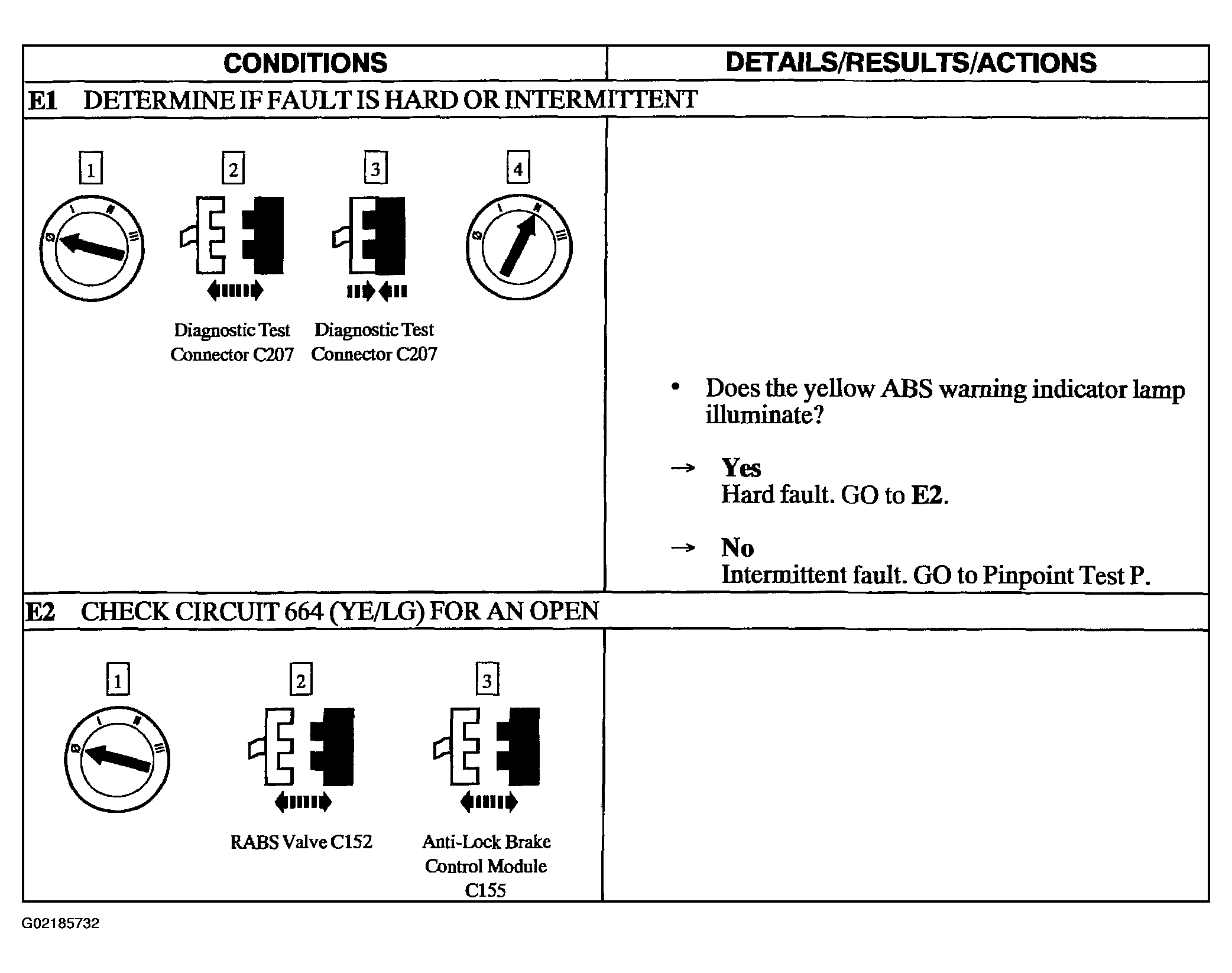

Fig 1: Pinpoint Test E: Diagnostic Trouble Code (DTC) 3 - Open RABS Dump Solenoid Circuit Chart (E1 & E2)
G02185732Courtesy of FORD MOTOR CO.

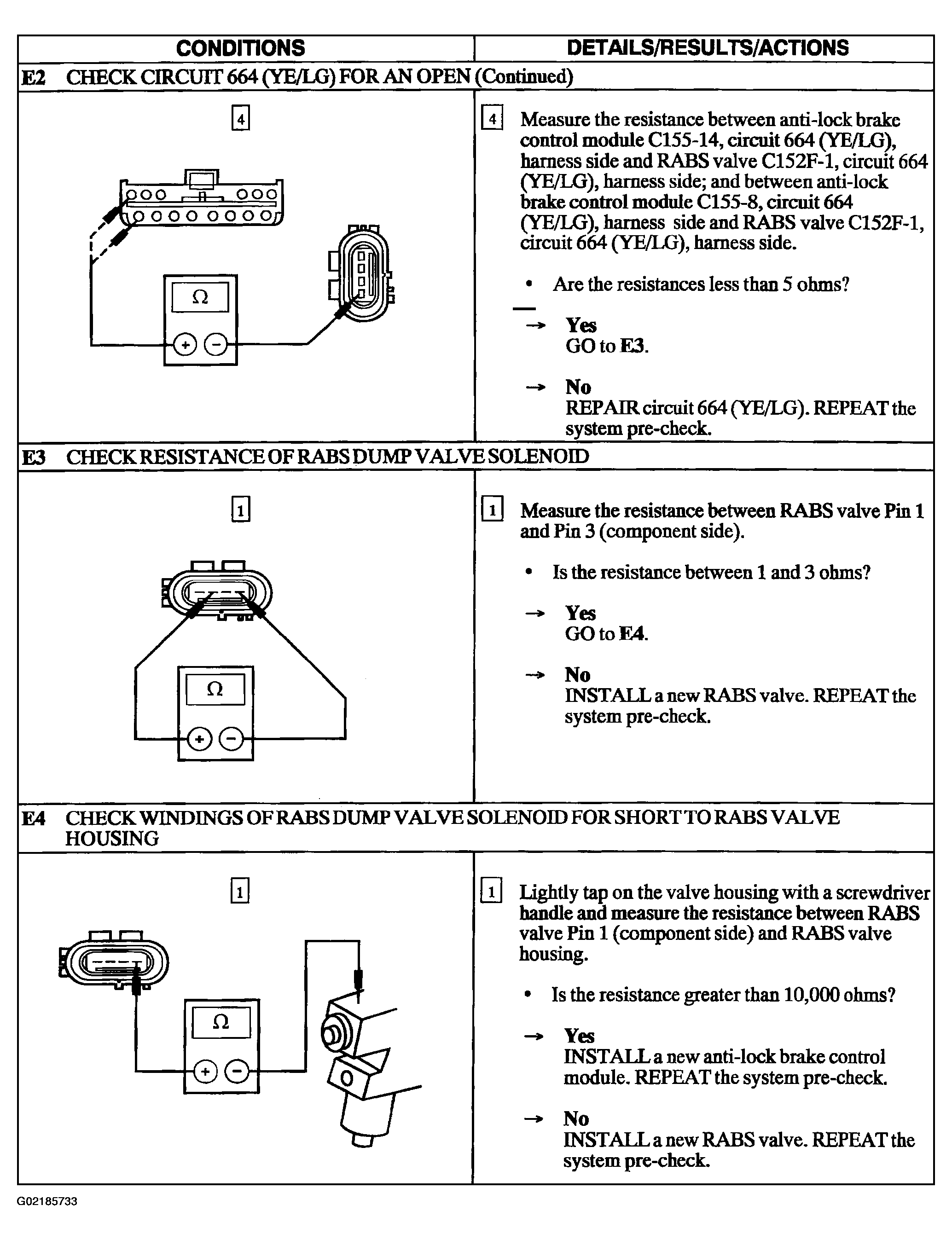

Fig 2: Pinpoint Test E: Diagnostic Trouble Code (DTC) 3 - Open RABS Dump Solenoid Circuit Chart (E2 Cont. - E4)
G02185733Courtesy of FORD MOTOR CO.
