Pinpoint Test D: Diagnostic Trouble Code (DTC) 2 - Open RABS Isolation Solenoid Circuit
WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

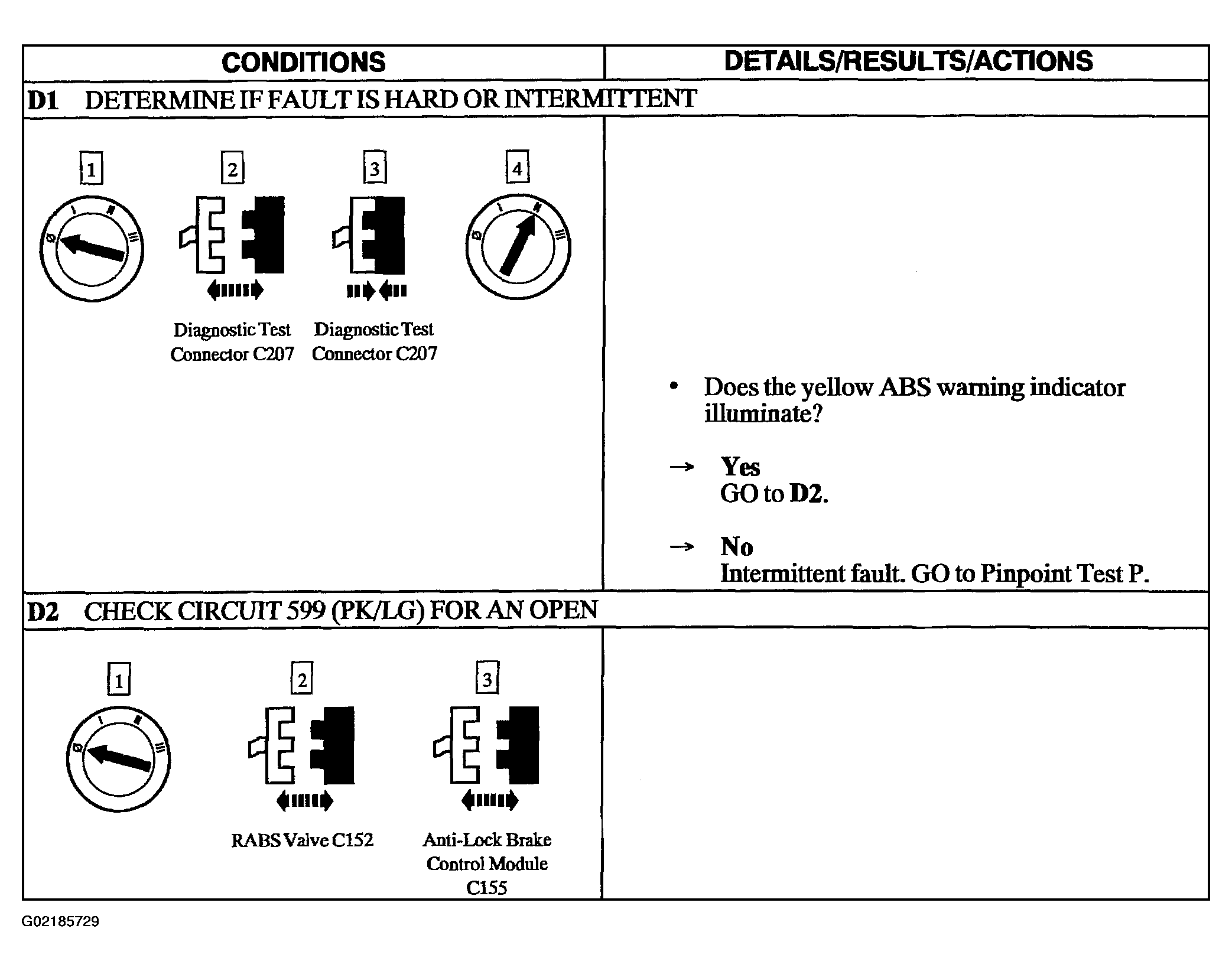

Fig 1: Pinpoint Test D: Diagnostic Trouble Code (DTC) 2 - Open RABS Isolation Solenoid Circuit Chart (D1 & D2)
Courtesy of FORD MOTOR CO.

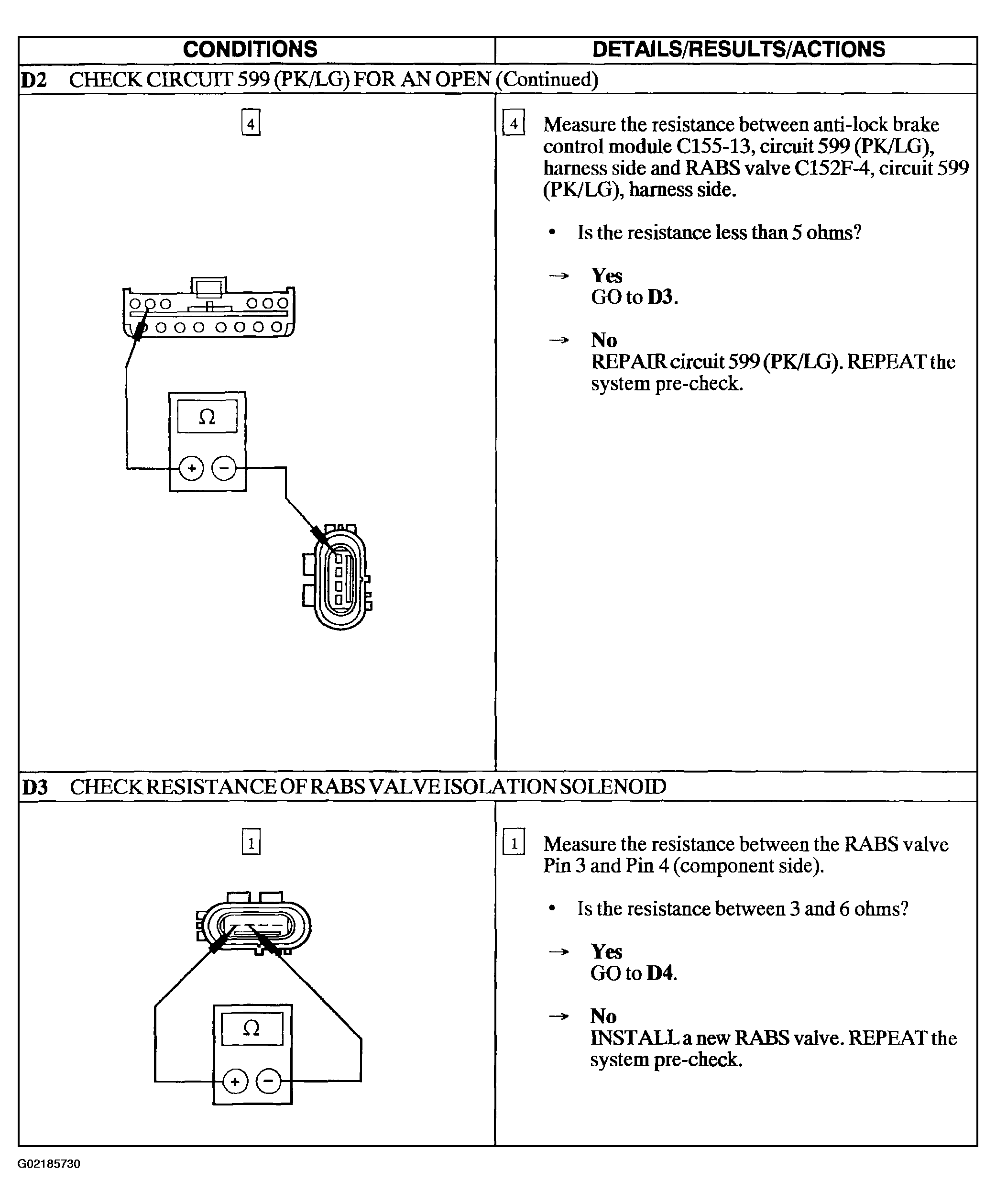

Fig 2: Pinpoint Test D: Diagnostic Trouble Code (DTC) 2 - Open RABS Isolation Solenoid Circuit Chart (D2 & D3)
Courtesy of FORD MOTOR CO.

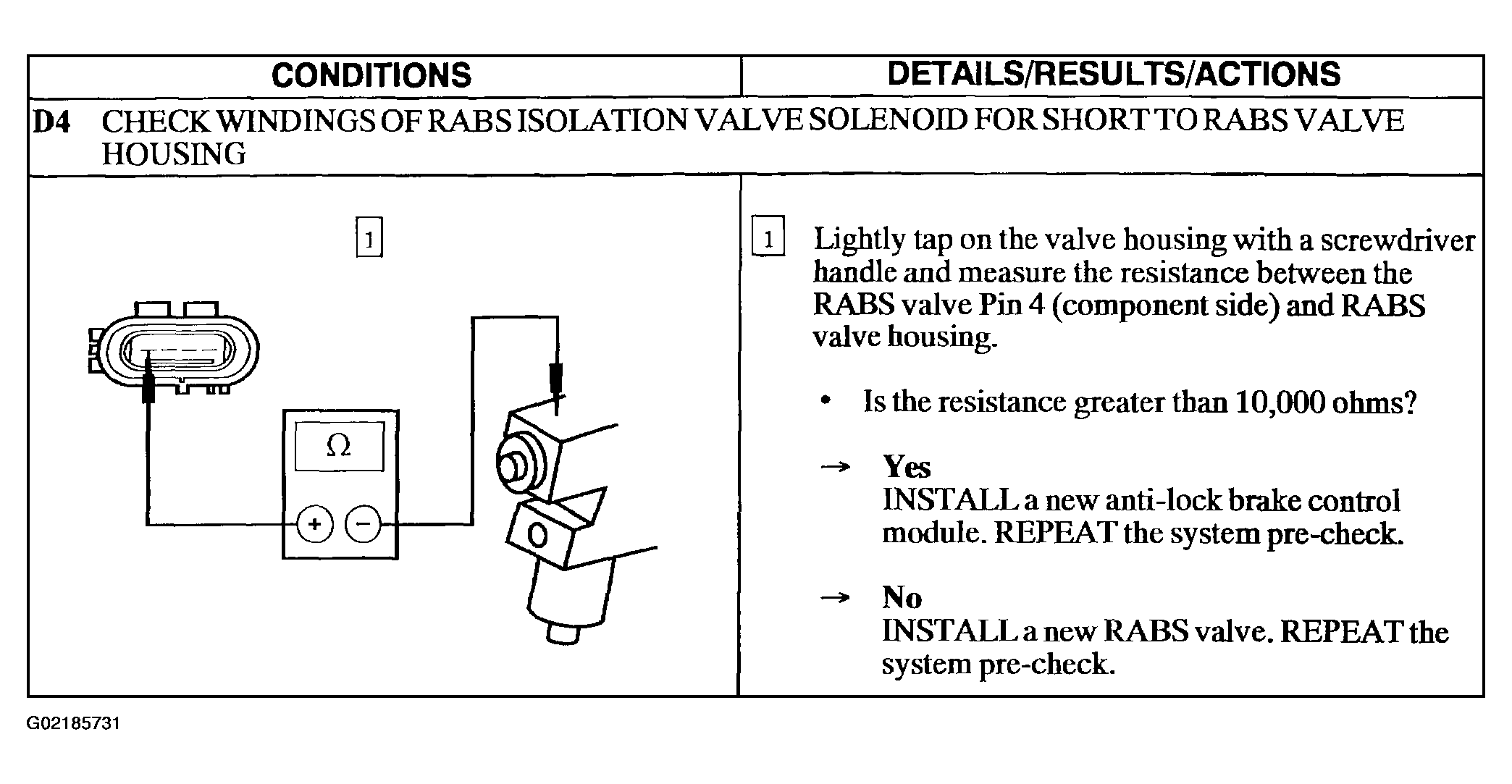

Fig 3: Pinpoint Test D: Diagnostic Trouble Code (DTC) 2 - Open RABS Isolation Solenoid Circuit Chart (D4)
