Pinpoint Test B: The Yellow Abs Warning Indicator Self-Checks OK But Automatically Begins Flashing

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

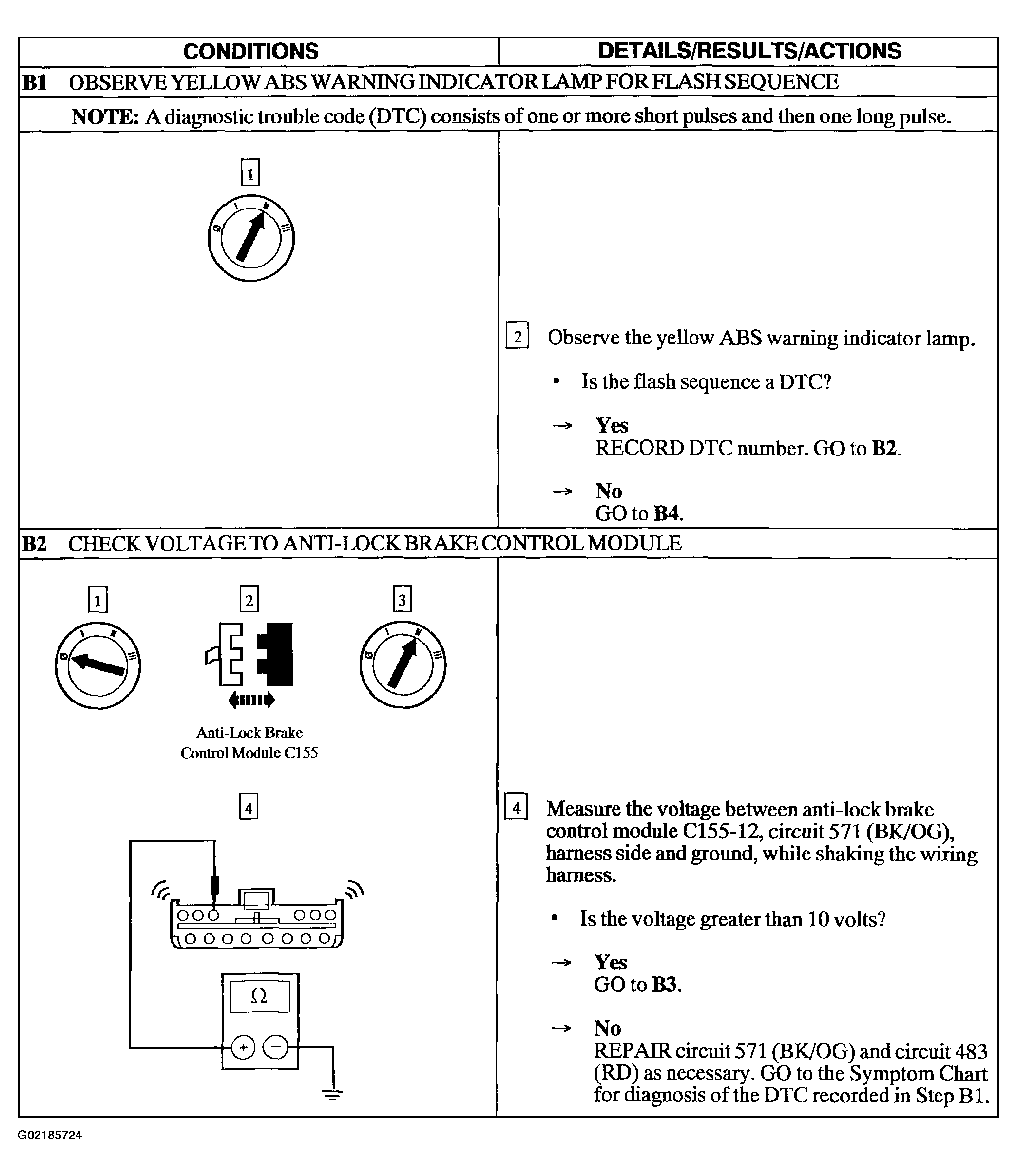

Fig 1: Pinpoint Test B: Yellow ABS Warning Indicator Self-Checks OK But Automatically Begins Flashing Chart (B1 & B2)

Courtesy of FORD MOTOR CO.

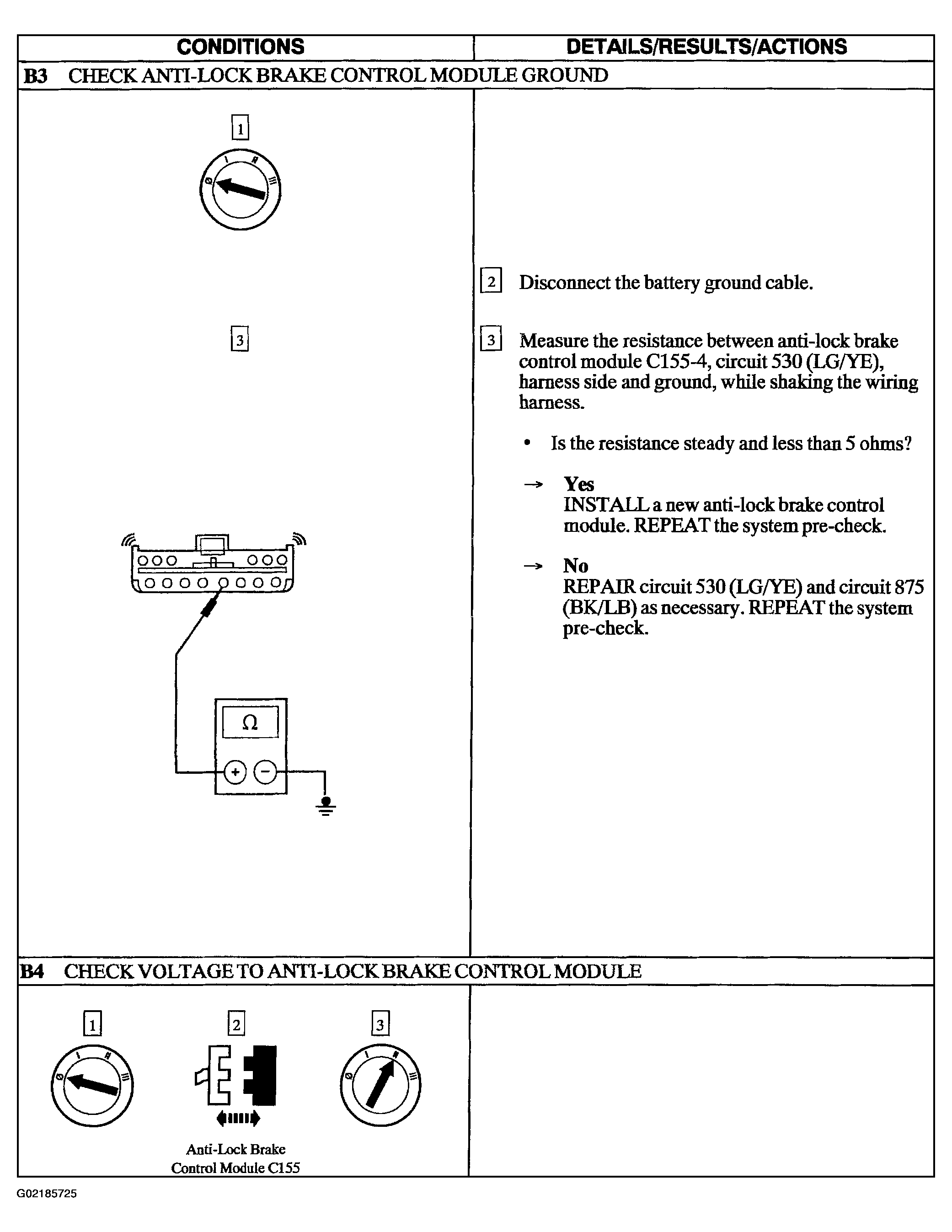

Fig 2: Pinpoint Test B: Yellow ABS Warning Indicator Self-Checks OK But Automatically Begins Flashing Chart (B3 & B4)

Courtesy of FORD MOTOR CO.

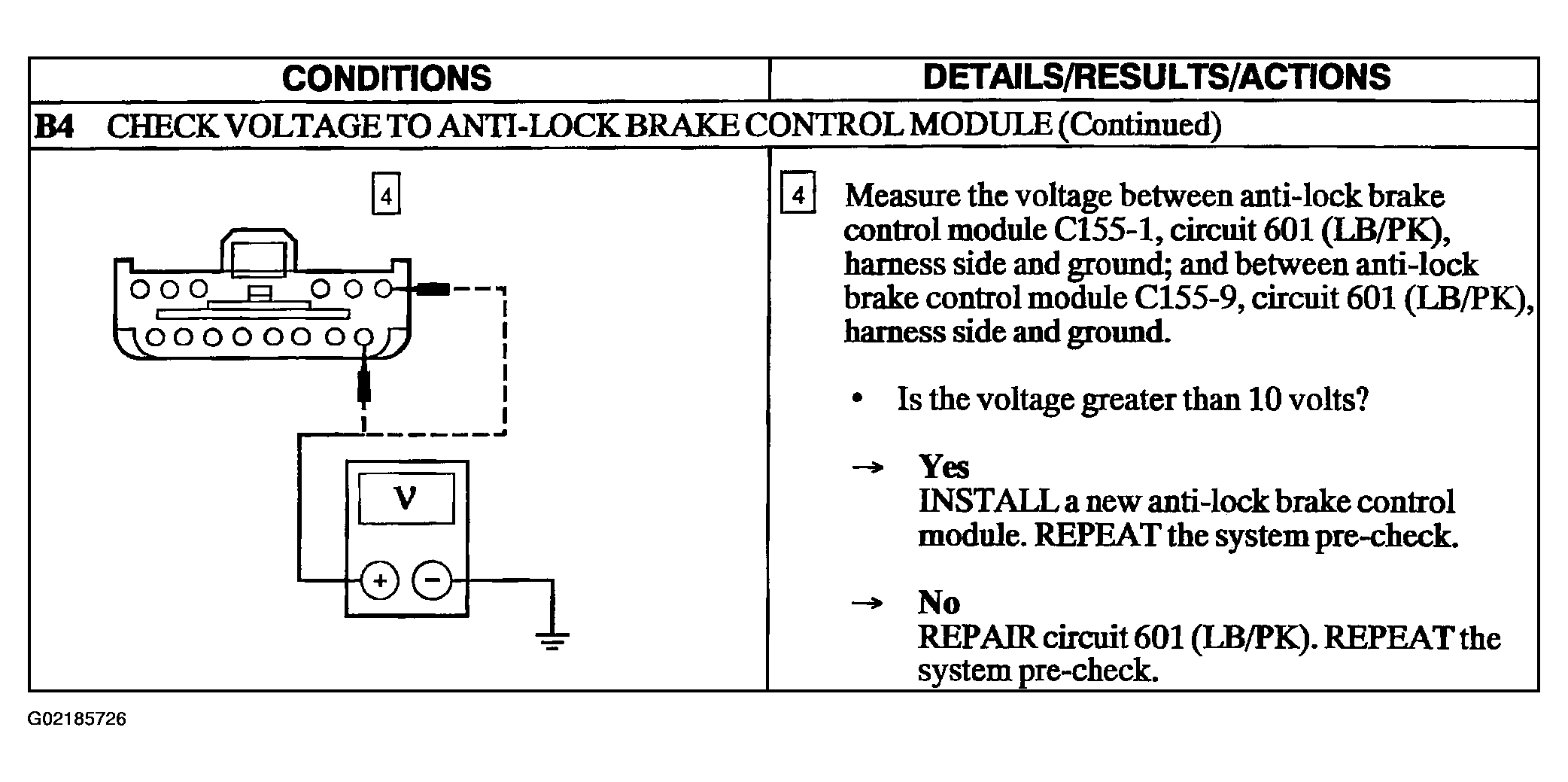

Fig 3: Pinpoint Test B: Yellow ABS Warning Indicator Self-Checks OK But Automatically Begins Flashing Chart (B4 Cont.)

Courtesy of FORD MOTOR CO.
