Pinpoint Test A: The Yellow Abs Warning Indicator Is Always On
WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pinpoint Test A: Yellow ABS Warning Indicator Is Always On Chart (A1)
Courtesy of FORD MOTOR CO.

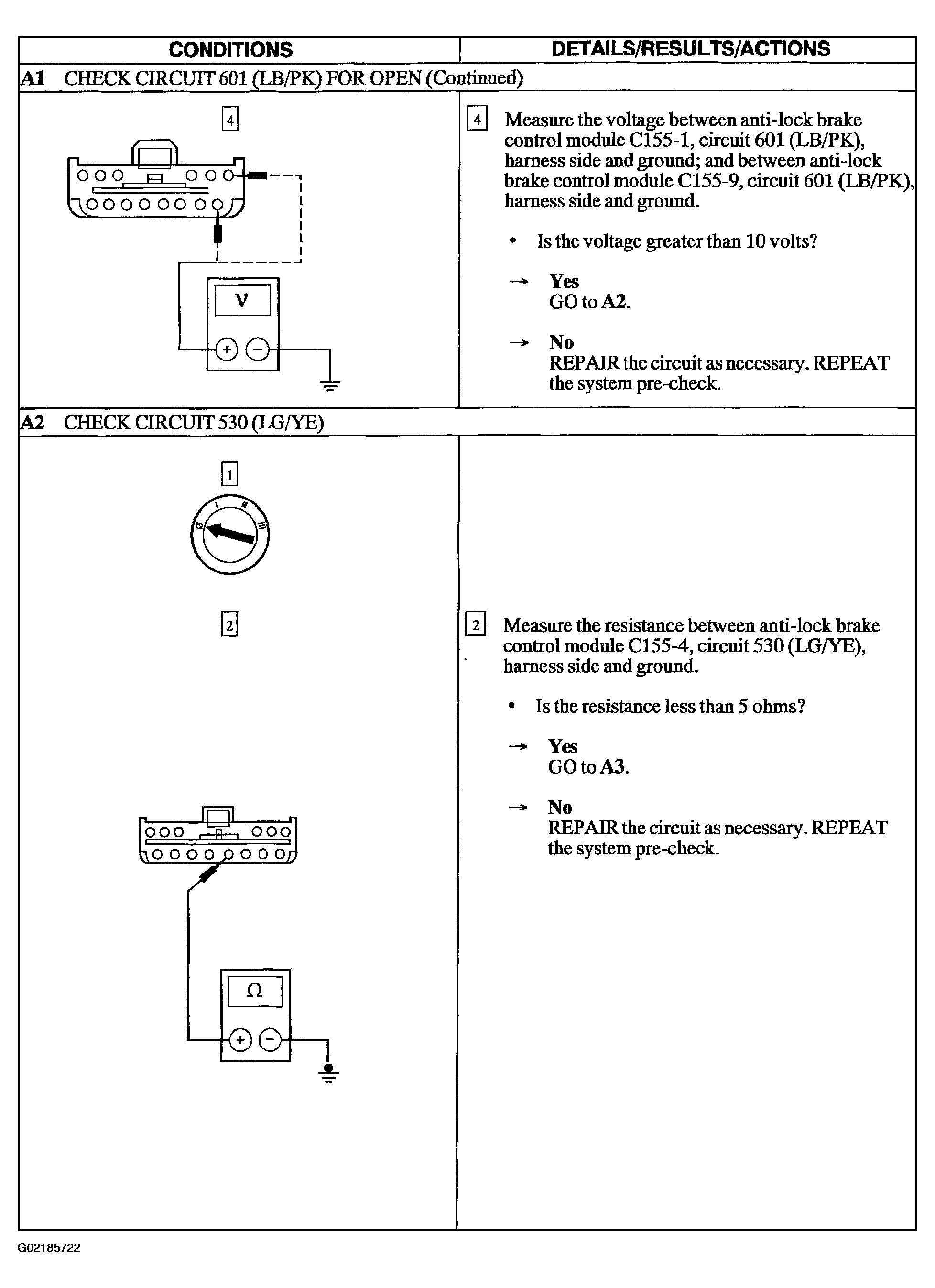

Fig 2: Pinpoint Test A: Yellow ABS Warning Indicator Is Always On Chart (A1 Cont. & A2)
Courtesy of FORD MOTOR CO.

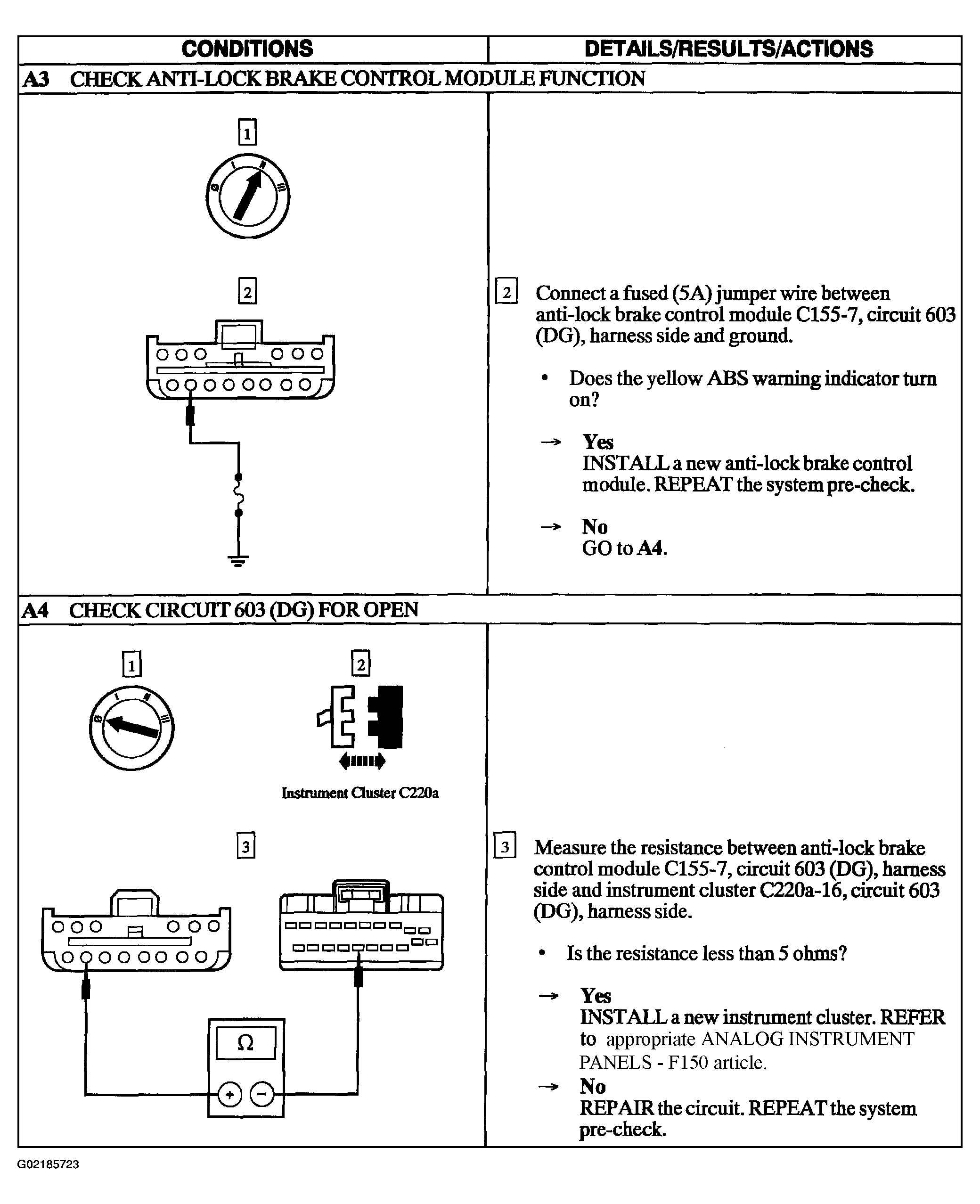

Fig 3: Pinpoint Test A: Yellow ABS Warning Indicator Is Always On Chart (A3 & A4)
