Inspection and Verification: Notes
WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Ensure the integrity of all connectors and their associated harnesses.
- Verify the customer concern by applying brakes under different conditions.

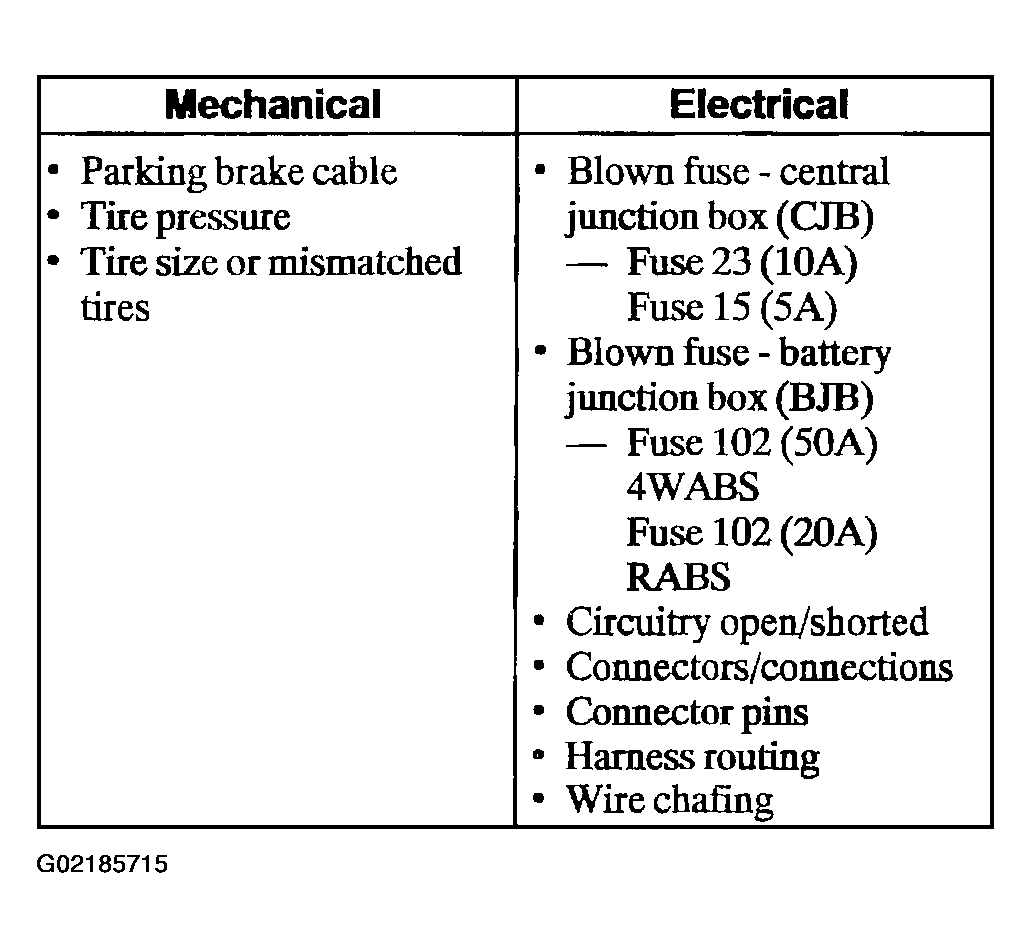

- Visually inspect for obvious signs of mechanical and electrical damage. Refer to Fig 1:
- If the fault is not visually evident, verify the symptom and proceed to Self Test.
