Halfshaft Seal RH: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the transfer case is leaking automatic transmission fluid, install a new transfer case driven gear seal. Refer to TRANSFER CASE DRIVEN GEAR SEAL .

Vehicles with 3.0L engine

Remove the exhaust system crossover pipe.
Remove the heat shield.
- Remove the bolts.

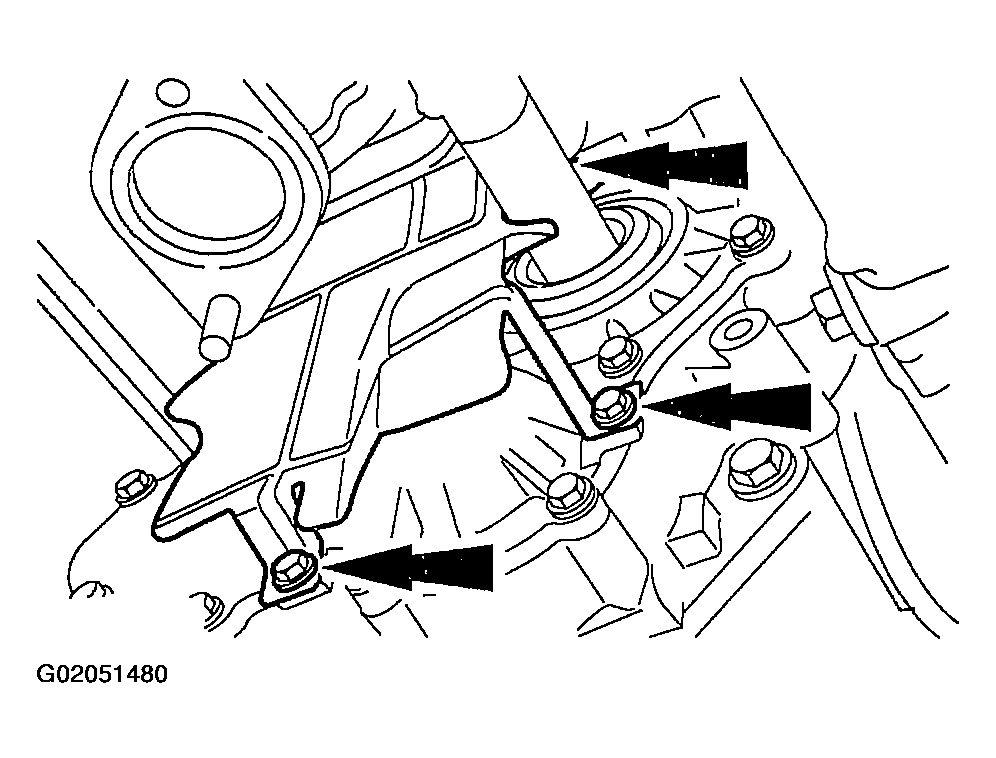

Fig 1: Removing Heat Shield
Courtesy of FORD MOTOR CO.

All vehicles
Remove the front drive axle intermediate shaft. Refer to INTERMEDIATE SHAFT .
Remove and discard the dust shield.

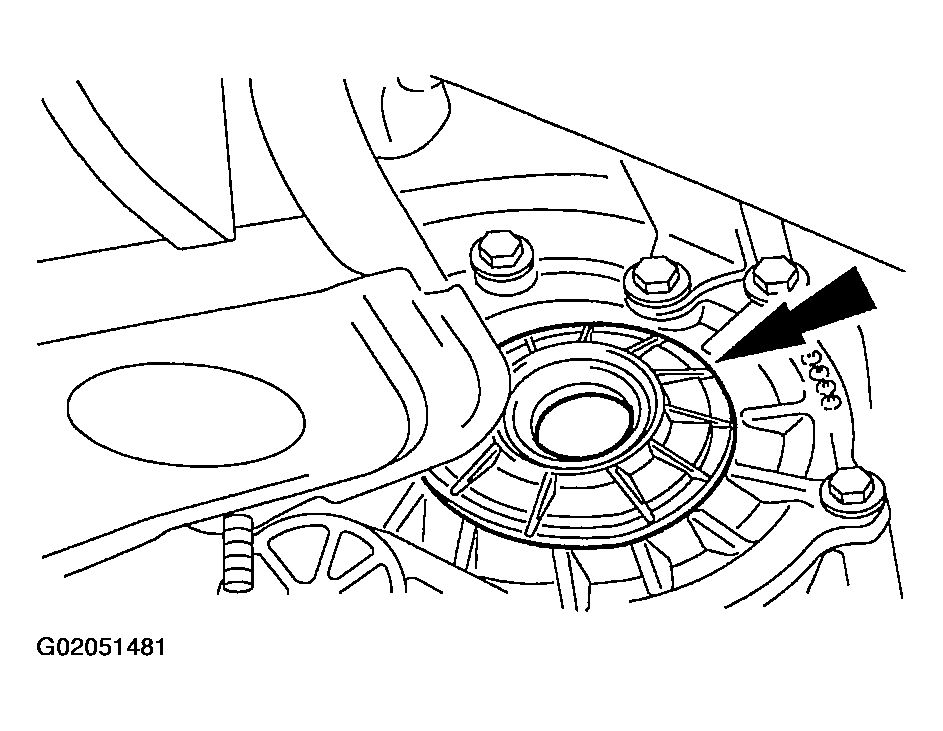

Fig 2: Removing Dust Shield
Courtesy of FORD MOTOR CO.
Remove and discard the RH halfshaft seal.

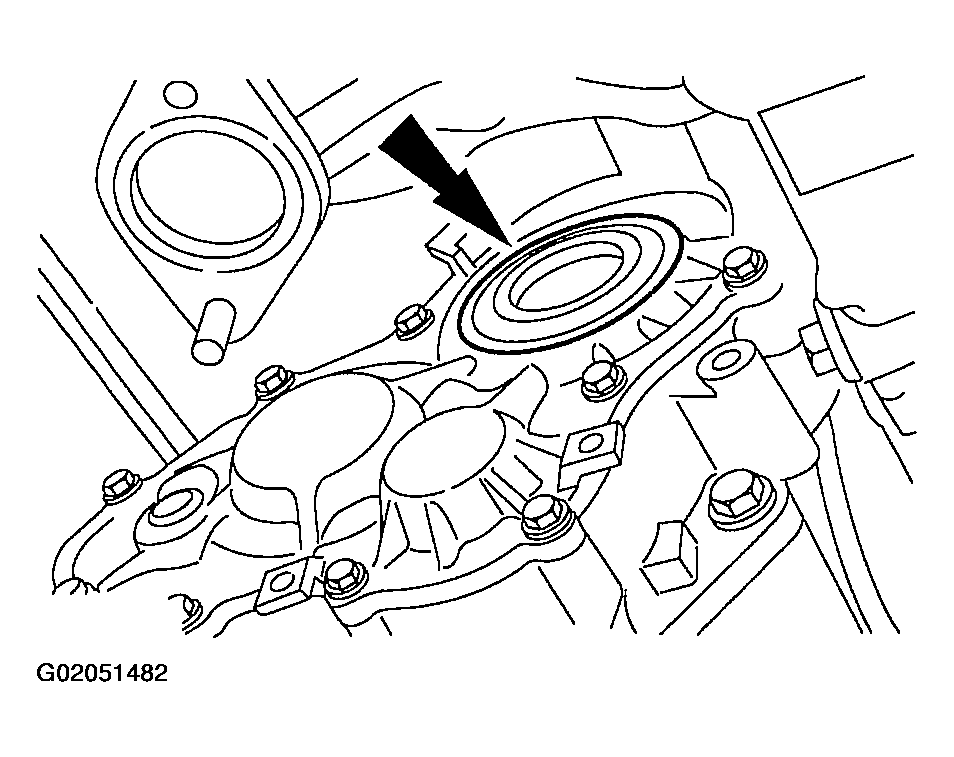

Fig 3: Removing RH Halfshaft Seal
Courtesy of FORD MOTOR CO.
