Intermediate Shaft
WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

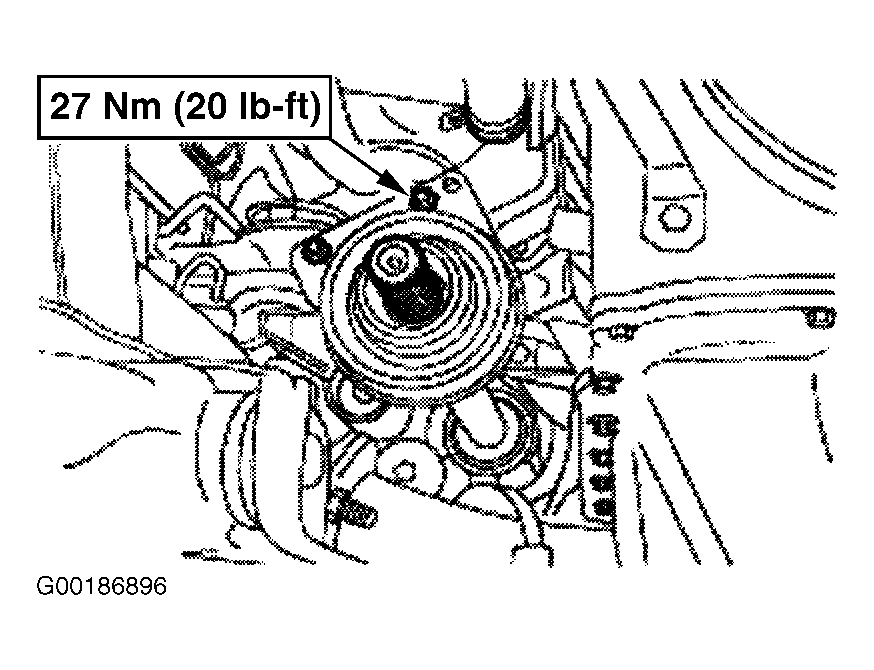

Remove right side axle shaft. See AXLE SHAFTS . Remove 2 intermediate axle shaft bearing retainer nuts. See Fig 1 . Remove intermediate axle shaft. To install, reverse removal procedure. Tighten intermediate axle shaft bearing retainer nuts to specification. See TORQUE SPECIFICATIONS .
