Halfshaft Seal RH: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Using the special tools, install the RH halfshaft seal.

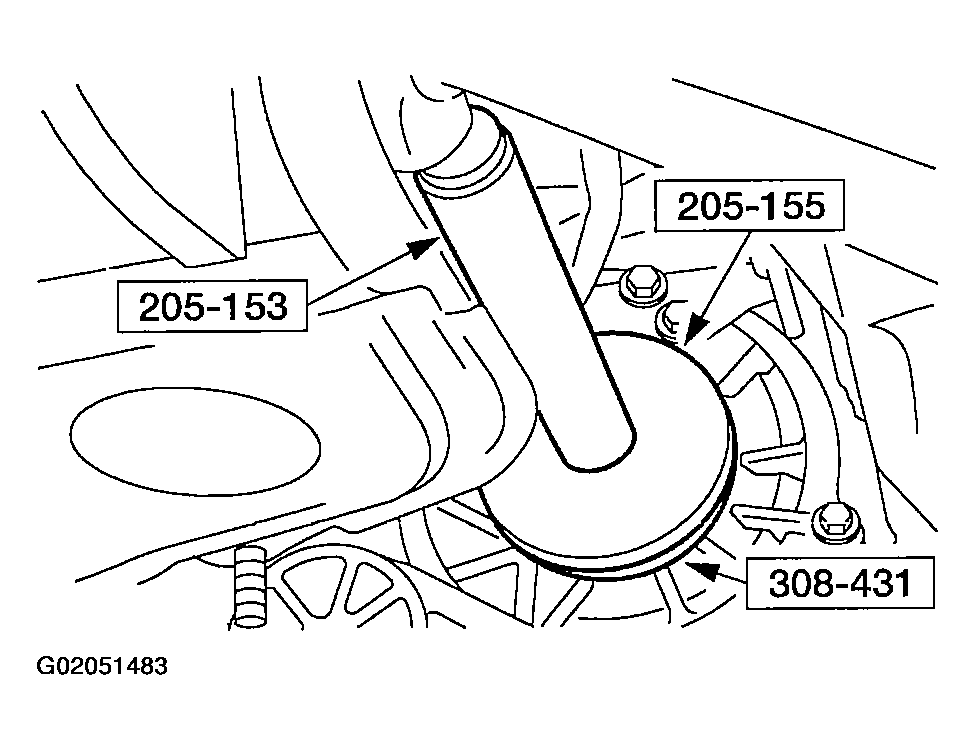

Fig 1: Installing RH Halfshaft Seal Using Special Tools
Courtesy of FORD MOTOR CO.
Install the dust shield.

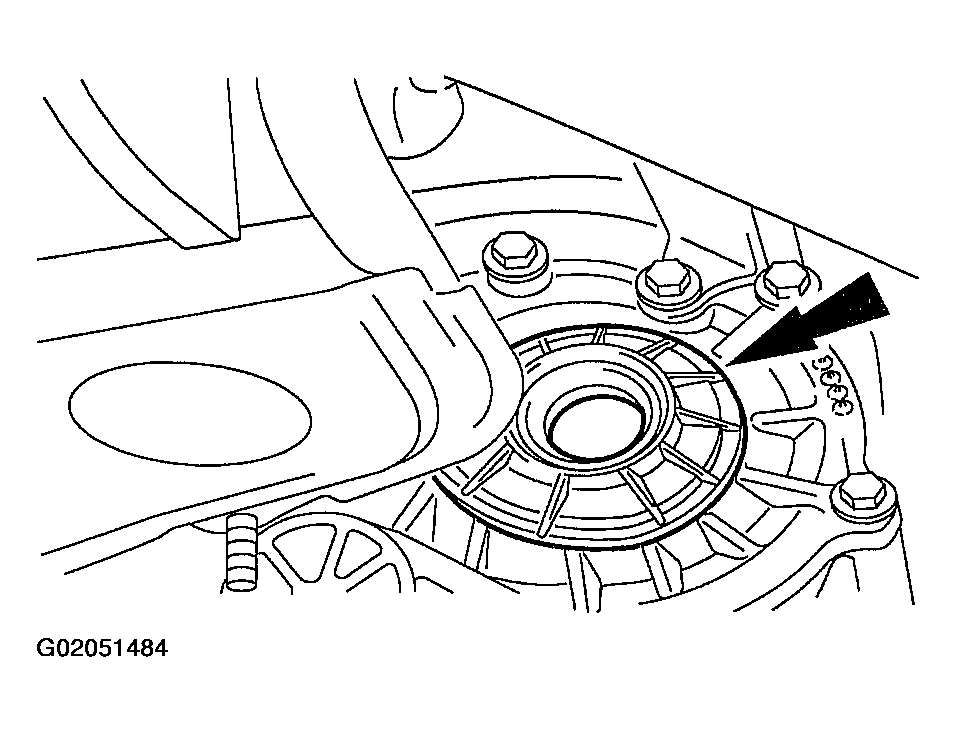

Fig 2: Installing Dust Shield
Courtesy of FORD MOTOR CO.

NOTE: Clean the intermediate shaft before assembly. Use 600 grit sandpaper on seal journals and wipe dry.

Install the front drive axle intermediate shaft. Refer to INTERMEDIATE SHAFT .
Vehicles with 3.0L engine
Install the heat shield.
- Install the three bolts.

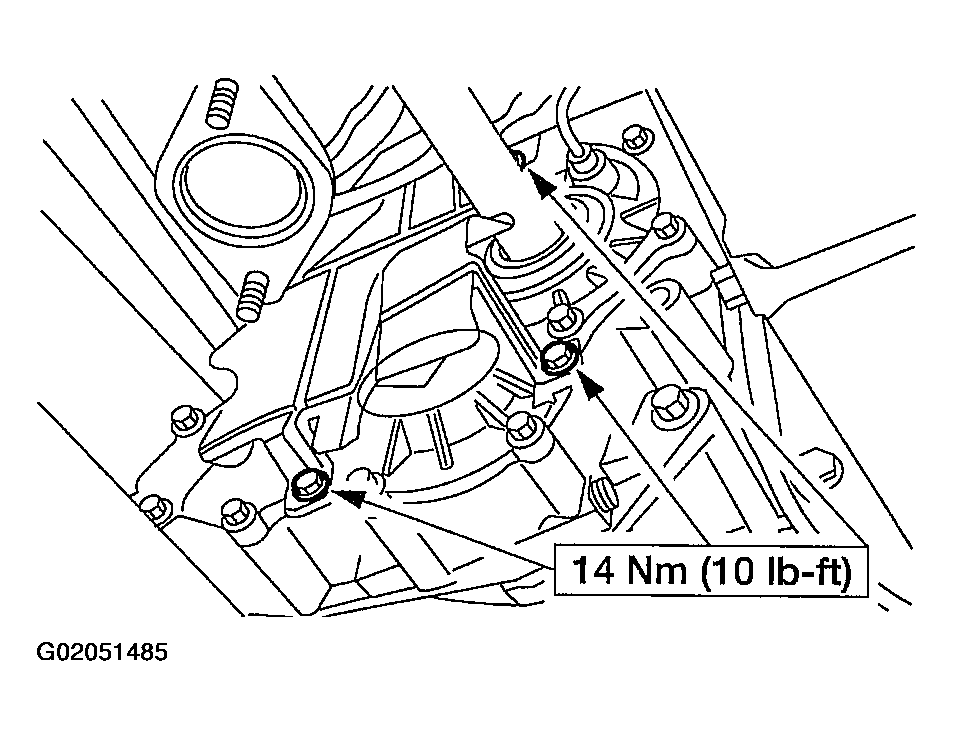

Fig 3: Installing Heat Shield
Courtesy of FORD MOTOR CO.
Install the exhaust system crossover pipe.
All vehicles
Check the transfer case oil level. Refer to TRANSFER CASE DRAINING AND FILLING .
Check the transaxle fluid level. Refer to CHECKING FLUID LEVEL .
