Occupant Classification Sensor (OCS): Installation

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Bend pressure sensor retainer back to original position. Tighten front seat mounting bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Zero OCS sensor. See ZERO OCCUPANT CLASSIFICATION SENSOR (OCS) under DIAGNOSTICS. Perform system operation check. See SYSTEM OPERATION CHECK .

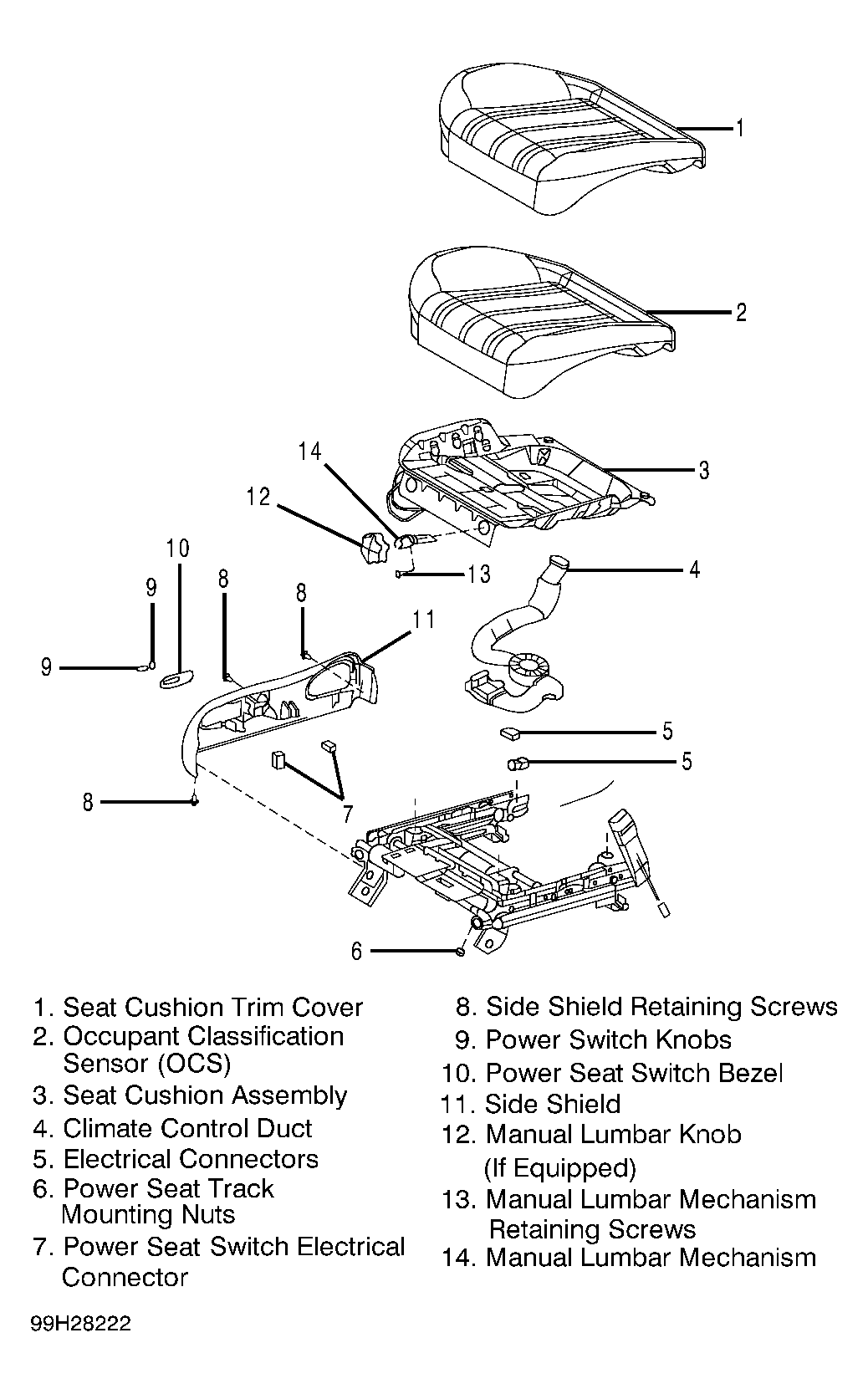

Fig 1: Identifying Occupant Classification Sensor (OCS)

Courtesy of FORD MOTOR CO.

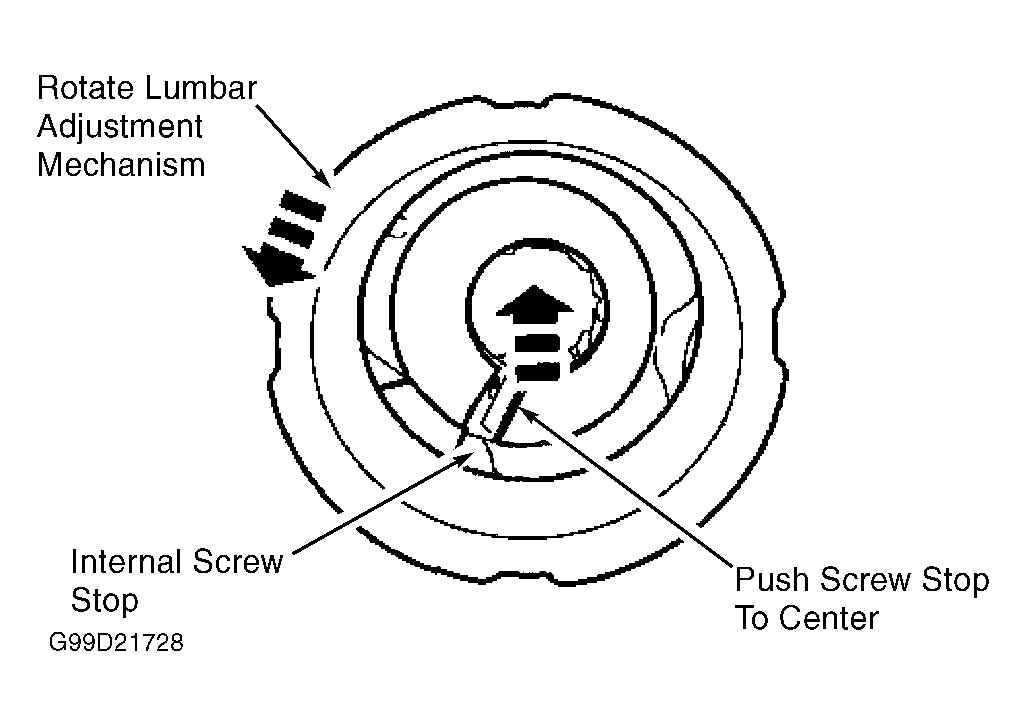

Fig 2: Releasing Manual Lumbar Adjustment Screw

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Lumbar Cable

Courtesy of FORD MOTOR CO.

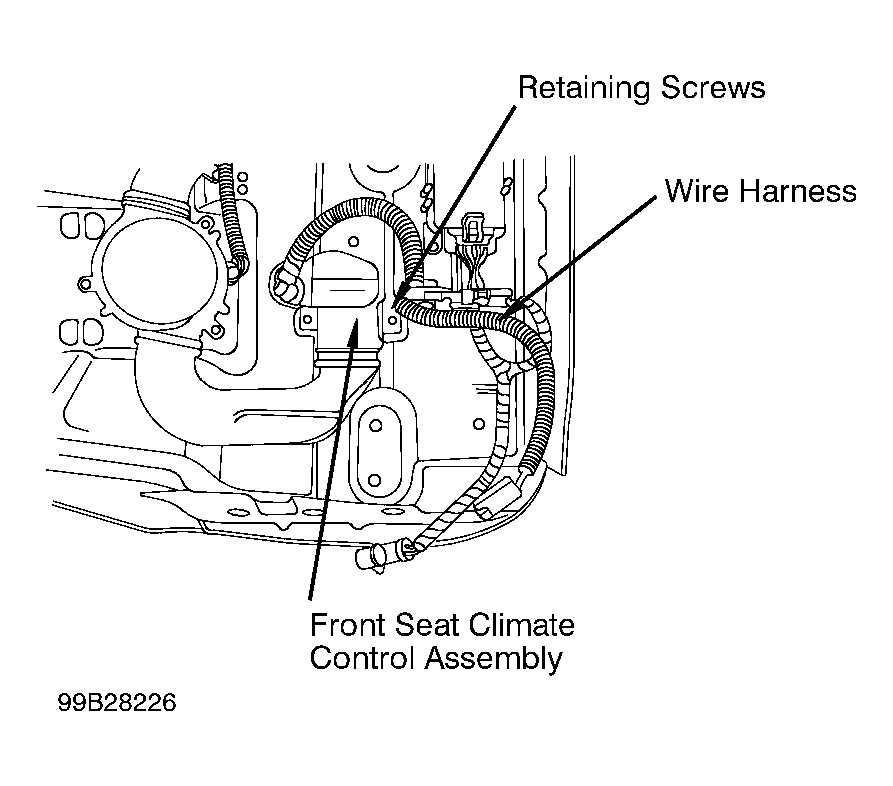

Fig 4: Identifying Front Seat Climate Control Assembly

Courtesy of FORD MOTOR CO.

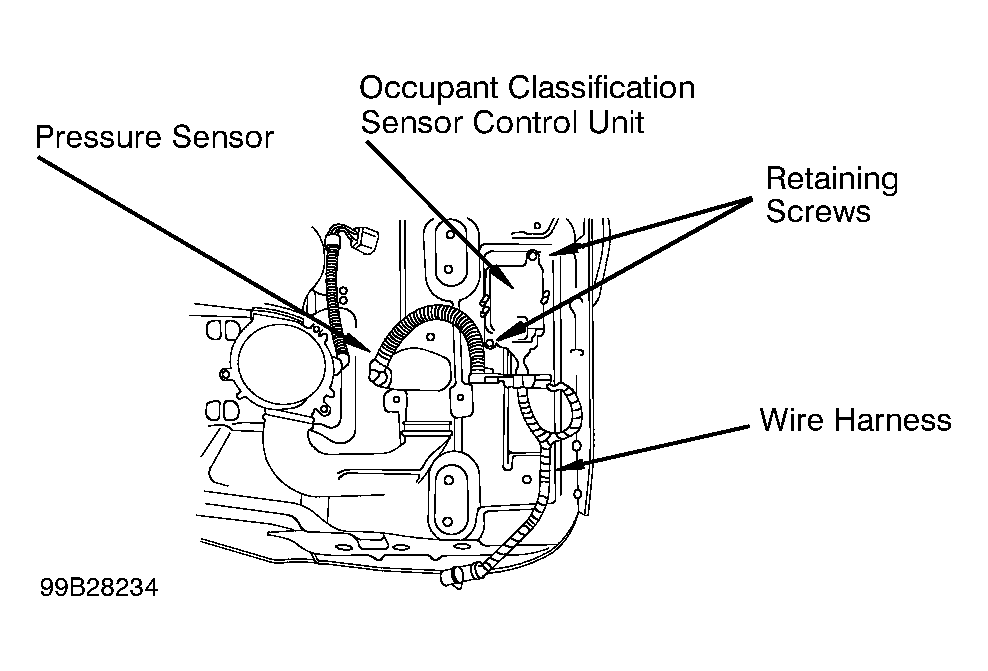

Fig 5: Identifying Occupant Classification Sensor (OCS) Components

Courtesy of FORD MOTOR CO.
