Installation (Left & Right)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2001 Ford Pickup, 2001 Ford Expedition, 2001 Ford Econoline, 2000 Ford Pickup, and 2000 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- Clean sealing surfaces on valve cover and cylinder head. Using gasket adhesive, glue valve cover gasket into valve cover. Apply a bead of silicone gasket adhesive onto seam where cylinder head and front cover meet.

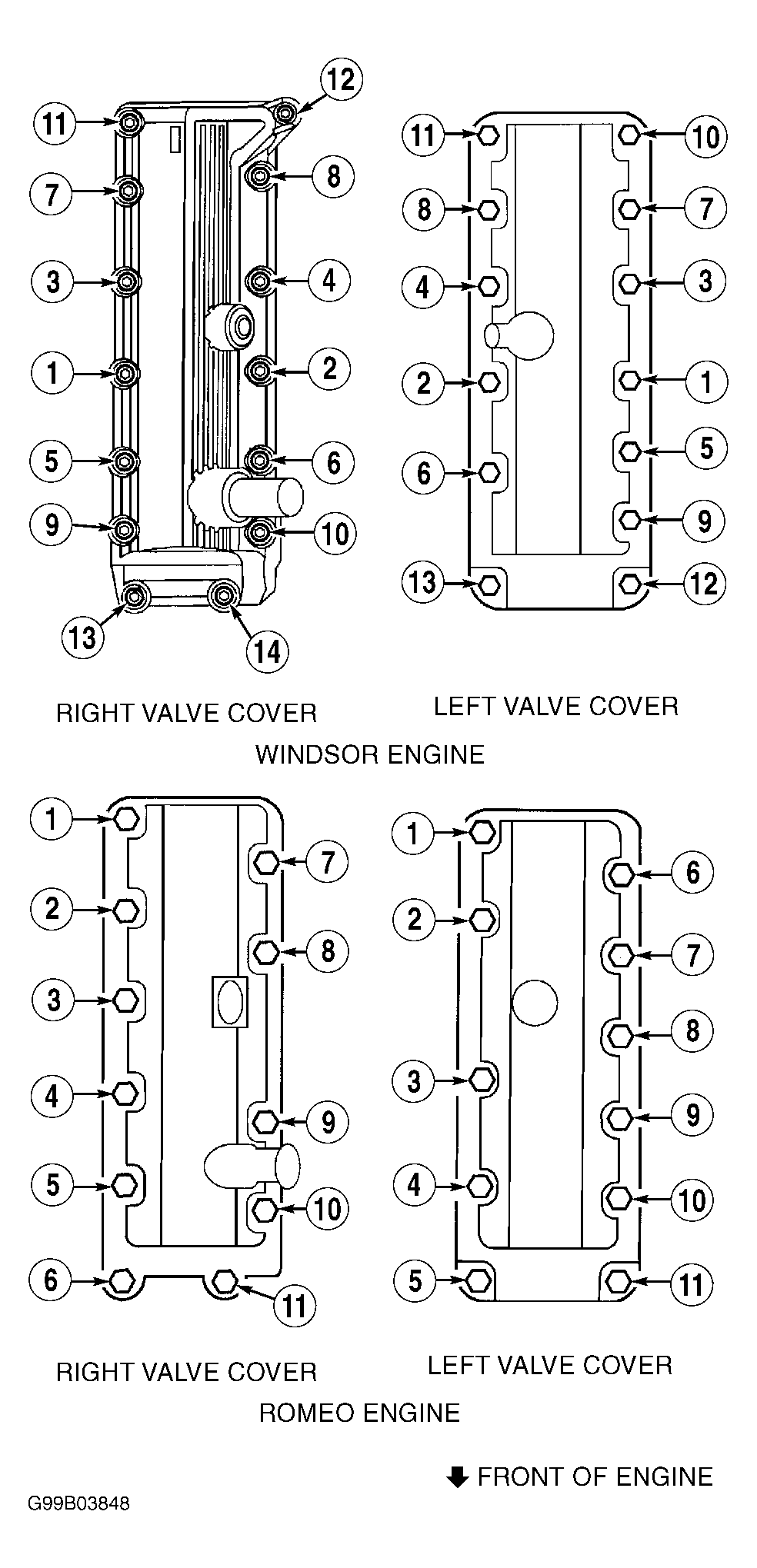

- Install valve cover and valve cover mounting bolts. To complete installation, reverse removal procedure. Tighten bolts to specification. See Fig 1. See TORQUE SPECIFICATIONS .
- When installing fuel lines, fit NEW fuel resistant "O" rings (Brown) on fuel lines. Lightly coat "O" rings with clean engine oil before installing. Clean fittings, and replace garter spring (if necessary).
