Luggage Compartment Lid
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | N811478-S | Hinge-to-luggage compartment lid nut (4 required) |
| 2 | W503931 | Hinge-to-body bolt (4 required) |
| 3 | 42700 RH/42701 LH | Luggage compartment lid hinge |
| 4 | 54406A10 | Luggage compartment lid assist strut (RH/LH) |
| 5 | W712985 | Luggage compartment bumper (2 required) |
| 6 | 40110 | Luggage compartment lid |

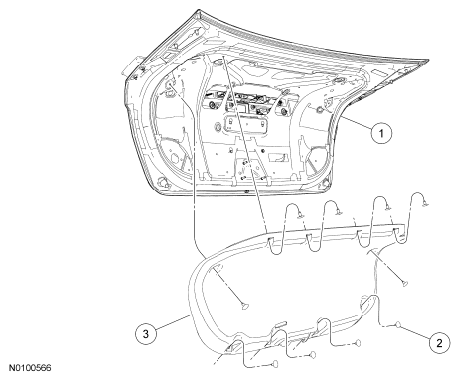

Luggage Compartment Lid Trim Panel
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 40110 | Luggage compartment lid |
| 2 | W706635 | Luggage compartment lid trim panel pin-type retainer (10 required) |
| 3 | 45594 | Luggage compartment lid trim panel |
- Open the luggage compartment lid.
- Remove the luggage compartment lid trim panel and pin-type retainers.

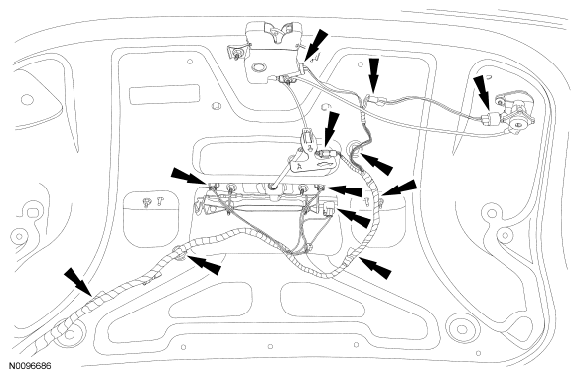

- Disconnect the electrical connectors and remove the wiring harness clips from the luggage compartment lid.
- Remove the luggage compartment lid lift struts.
- With the help of an assistant, remove the hinge-to-luggage compartment lid nuts.
- To install, tighten to 25 Nm (18 lb-ft).
- With the help of an assistant, remove the luggage compartment lid.
- To install, reverse the removal procedure.
- Adjust the luggage compartment lid as necessary. For additional information, refer to LUGGAGE COMPARTMENT LID ALIGNMENT .
