Oil Pump: Installation

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the oil pump and install the bolts.
    • Tighten in the sequence shown below to 10 Nm (89 lb-in).

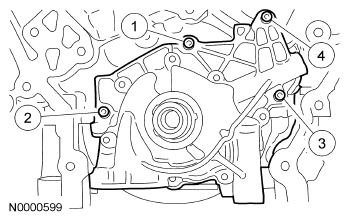

      • Fig 1: Tightening Oil Pump Bolts
      G06095617Courtesy of FORD MOTOR CO.
  2. Install the oil pump screen and pickup tube. For additional information, refer to ENGINE LUBRICATION COMPONENTS - EXPLODED VIEW  and Installation .
  3. Install the timing drive components. For additional information, refer to Installation .
