Removal & Installation (Front Cable & Conduit)

WARNING: This page is about a different car, the 2004 Ford Ranger, 2003 Ford Ranger, and 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parking brake control. See REMOVAL & INSTALLATION (CONTROL) .

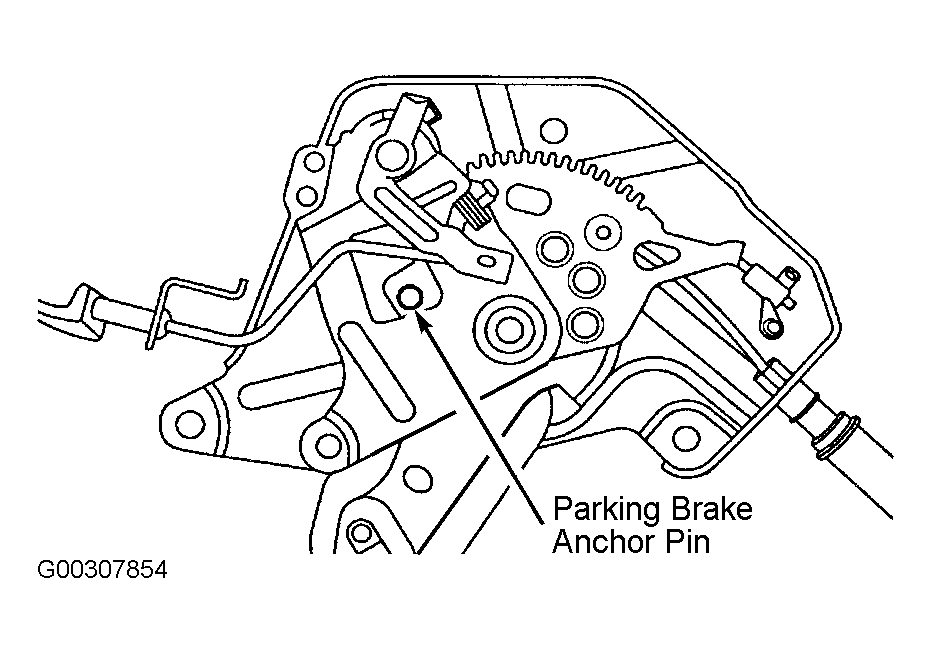

  2. Disconnect the front parking brake cable anchor pin from the parking brake control. See Figure.

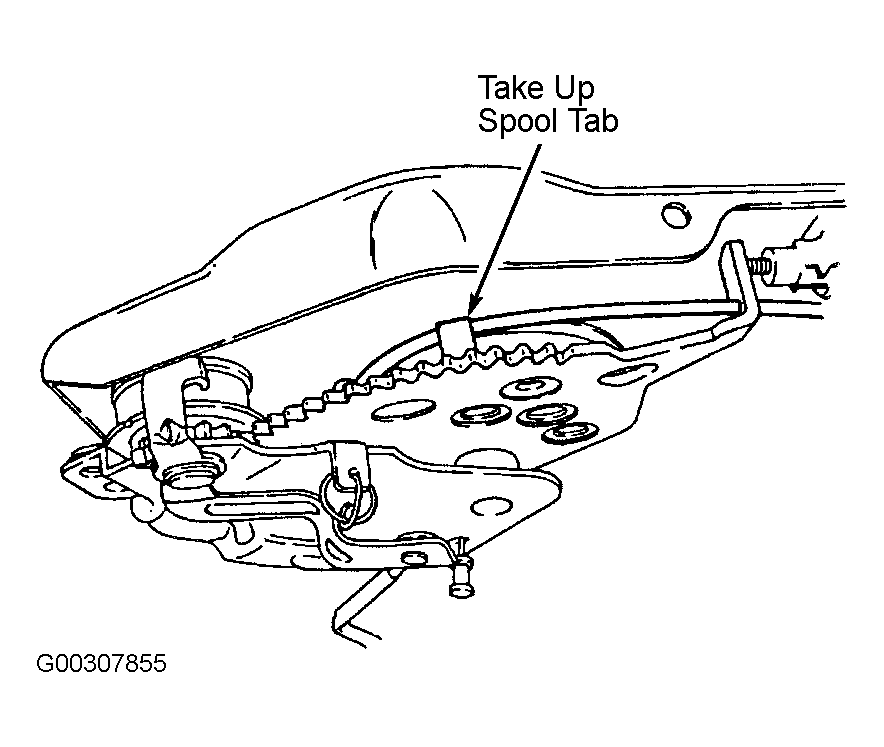

  3. Bend the take up spool tab up. See Figure.

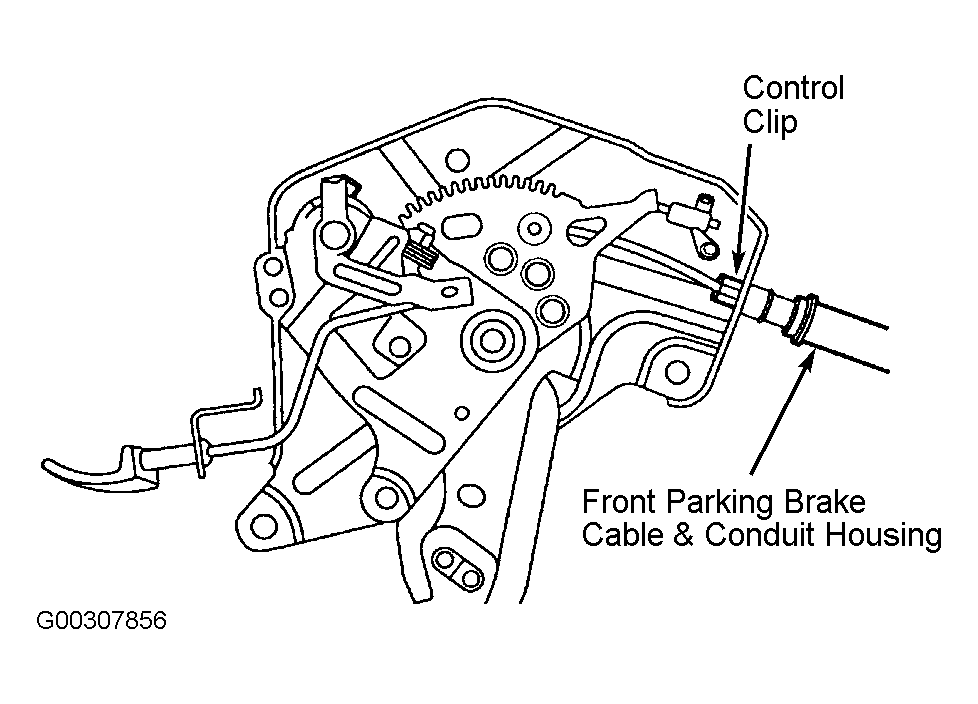

  4. Remove the front parking brake cable and conduit housing. Compress the front parking brake cable and conduit-to-parking brake control clip. Remove the front parking brake cable and conduit housing. See Figure.
  5. To install, reverse the removal procedure. Ensure cable is routed through loop on take up spool. See Figure.
