Removal & Installation: Transaxle: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Tighten all nuts and bolts to proper specification. See TORQUE SPECIFICATIONS .

For installation of transaxle into the vehicle, see Fig 1 -Fig 15 .

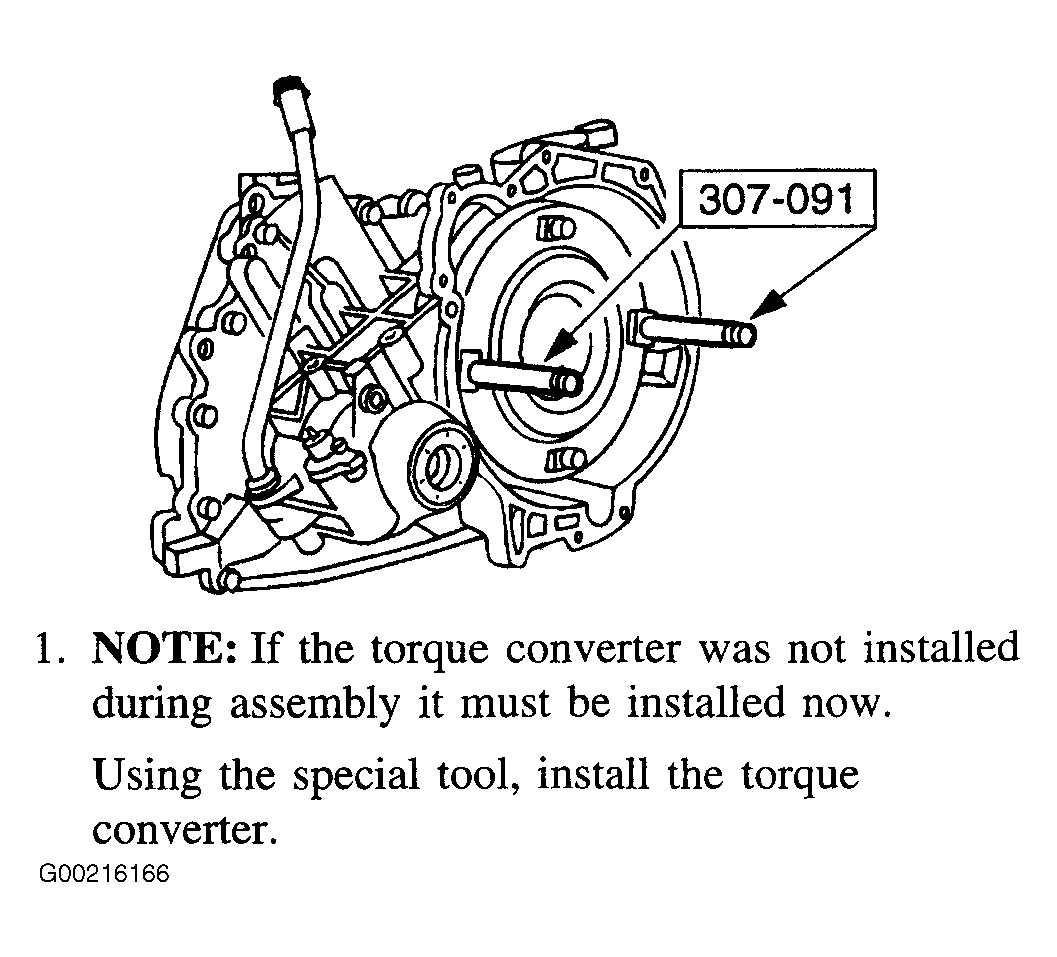

Fig 1: Installing Transaxle (1 Of 15)

Courtesy of FORD MOTOR CO.

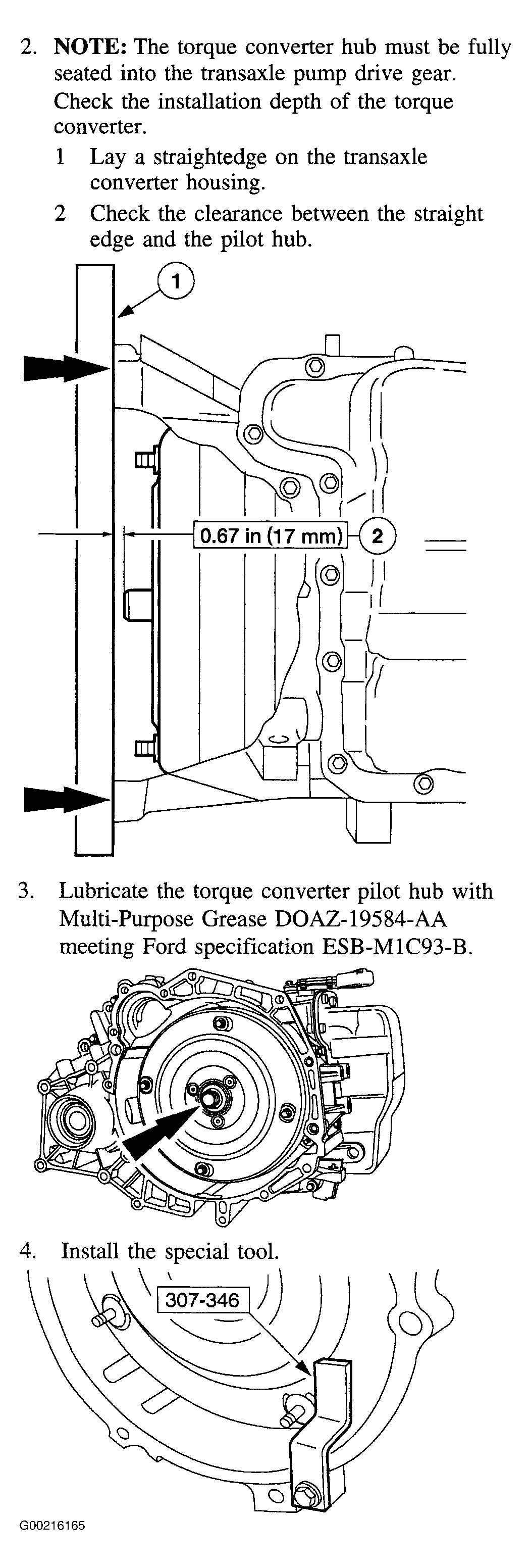

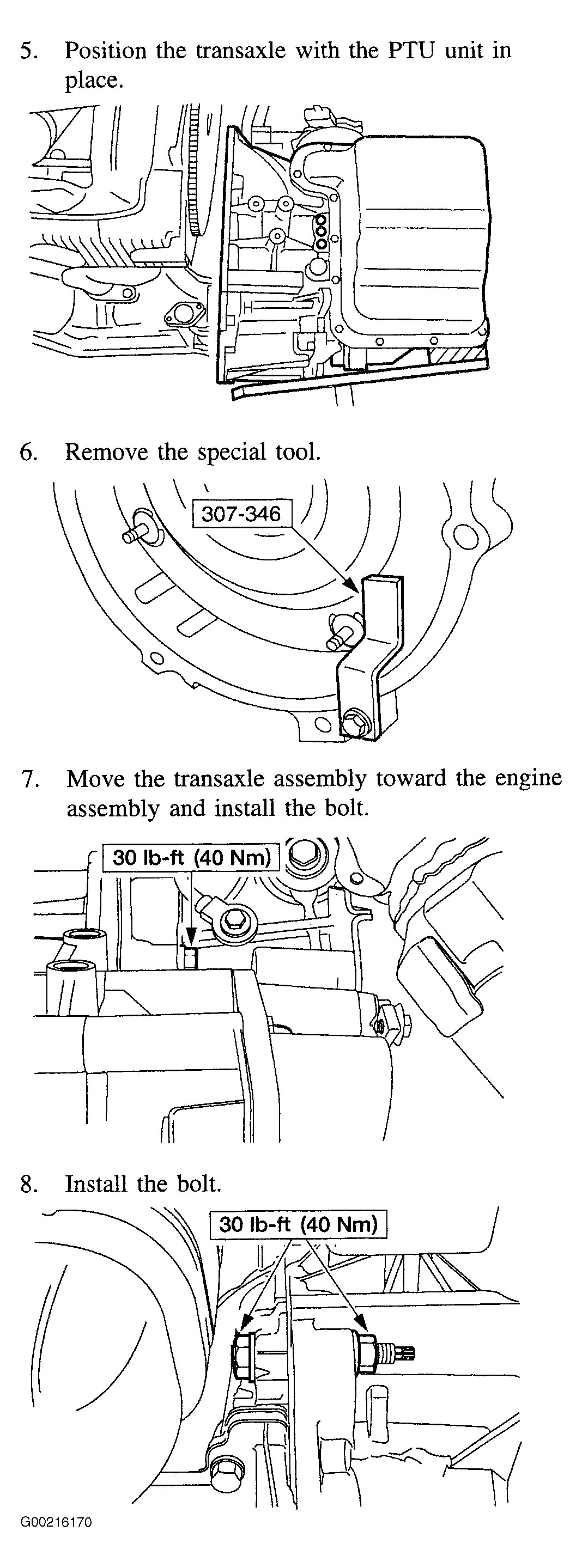

Fig 2: Installing Transaxle (2 Of 15)

Courtesy of FORD MOTOR CO.

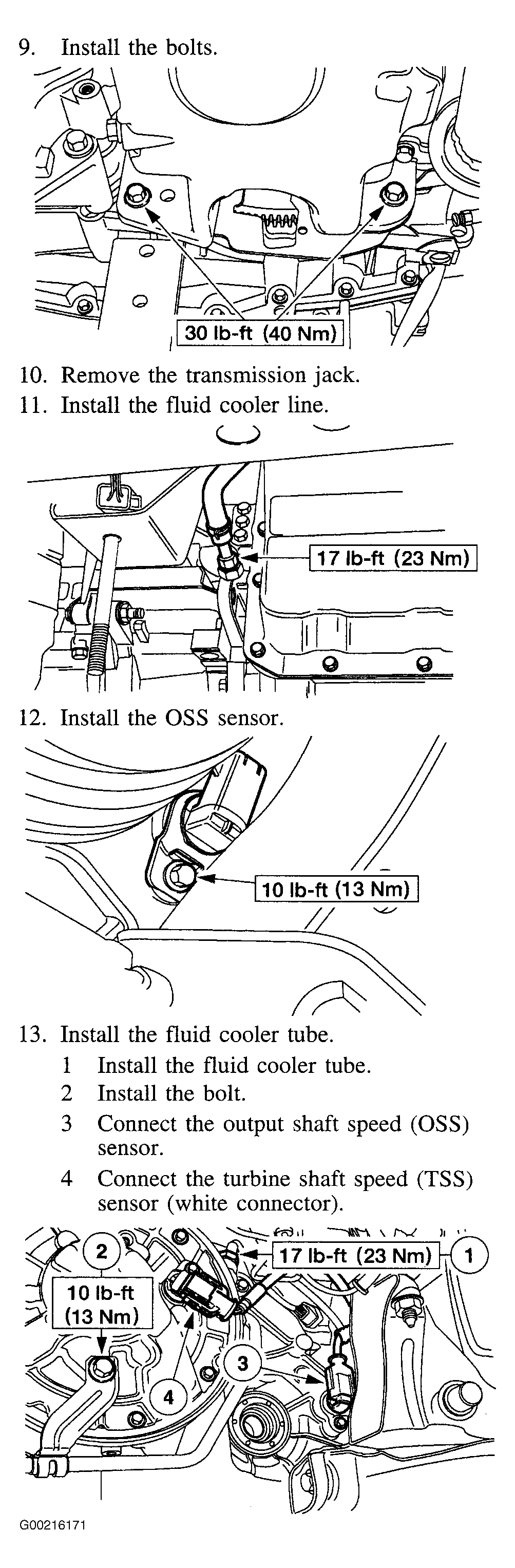

Fig 3: Installing Transaxle (3 Of 15)

Courtesy of FORD MOTOR CO.

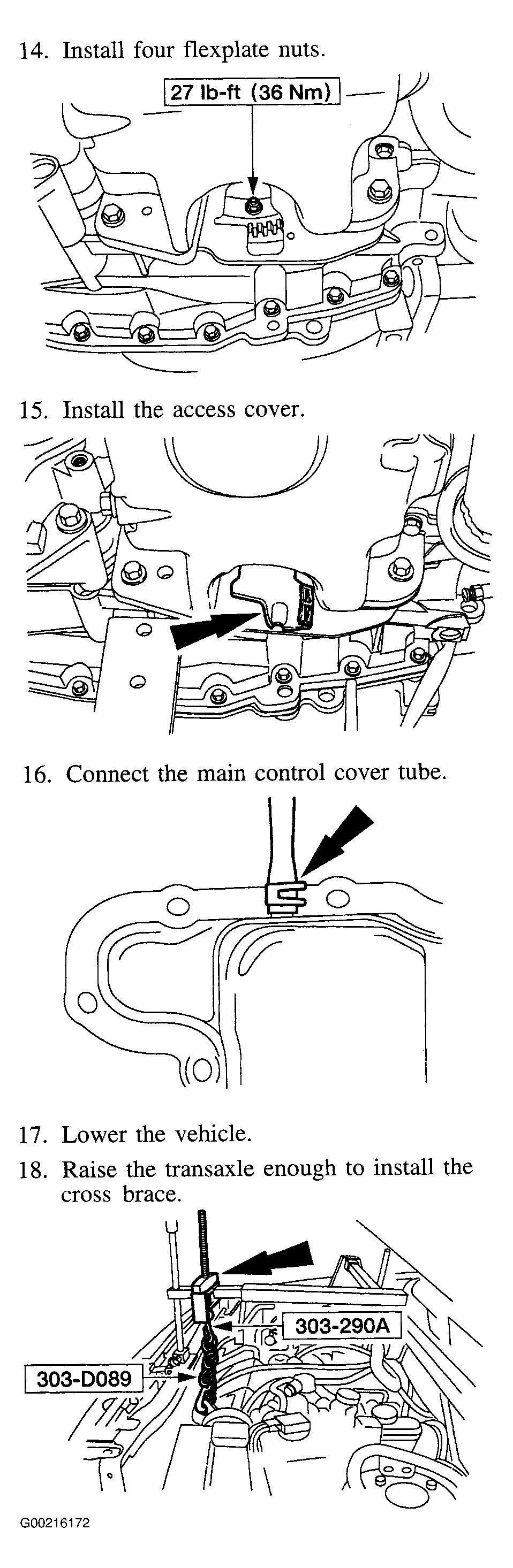

Fig 4: Installing Transaxle (4 Of 15)

Courtesy of FORD MOTOR CO.

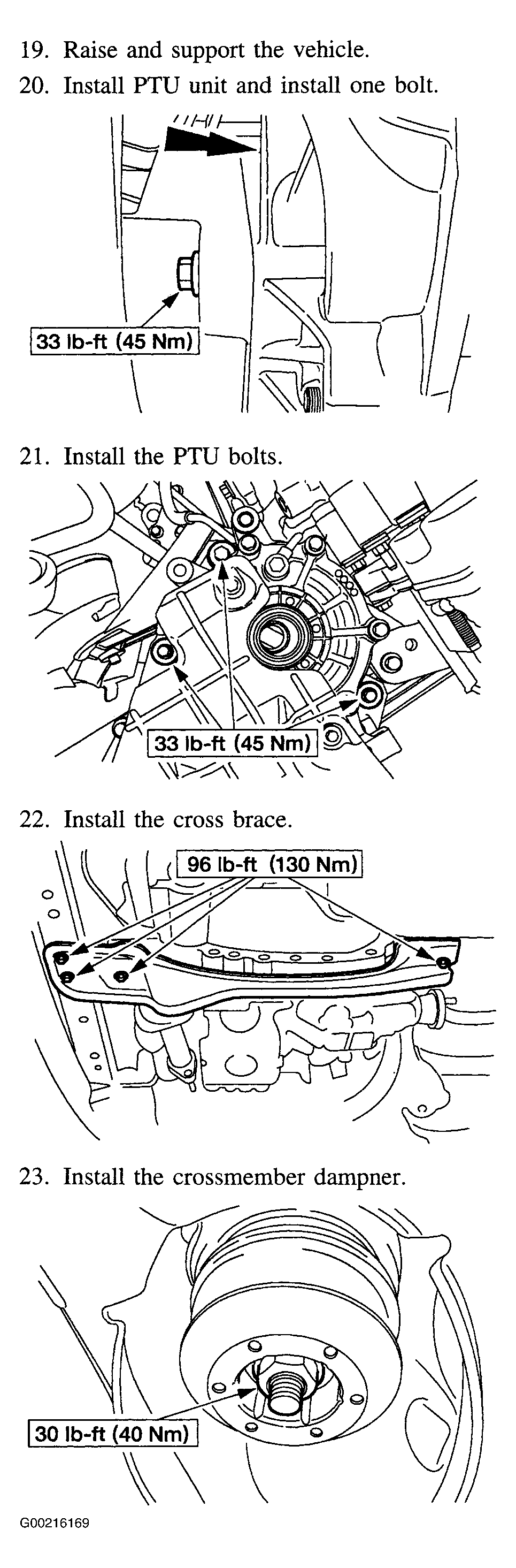

Fig 5: Installing Transaxle (5 Of 15)

Courtesy of FORD MOTOR CO.

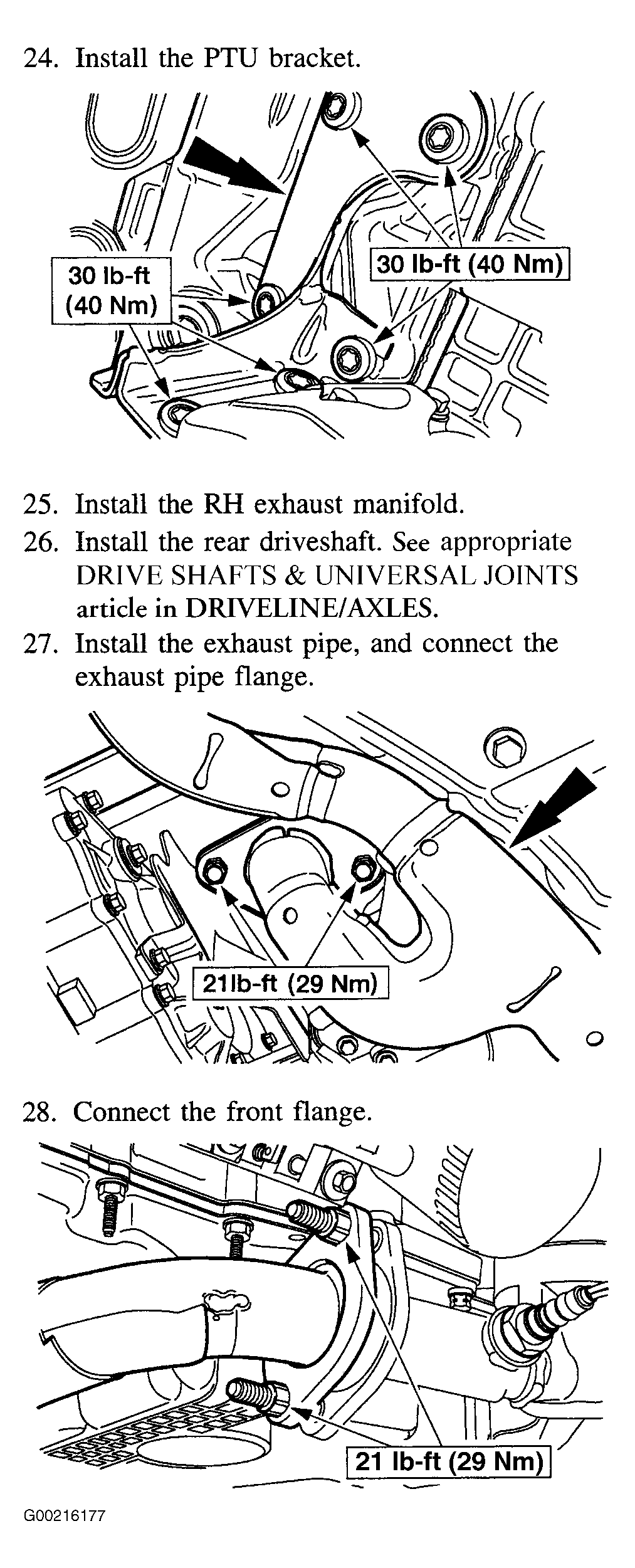

Fig 6: Installing Transaxle (6 Of 15)

Courtesy of FORD MOTOR CO.

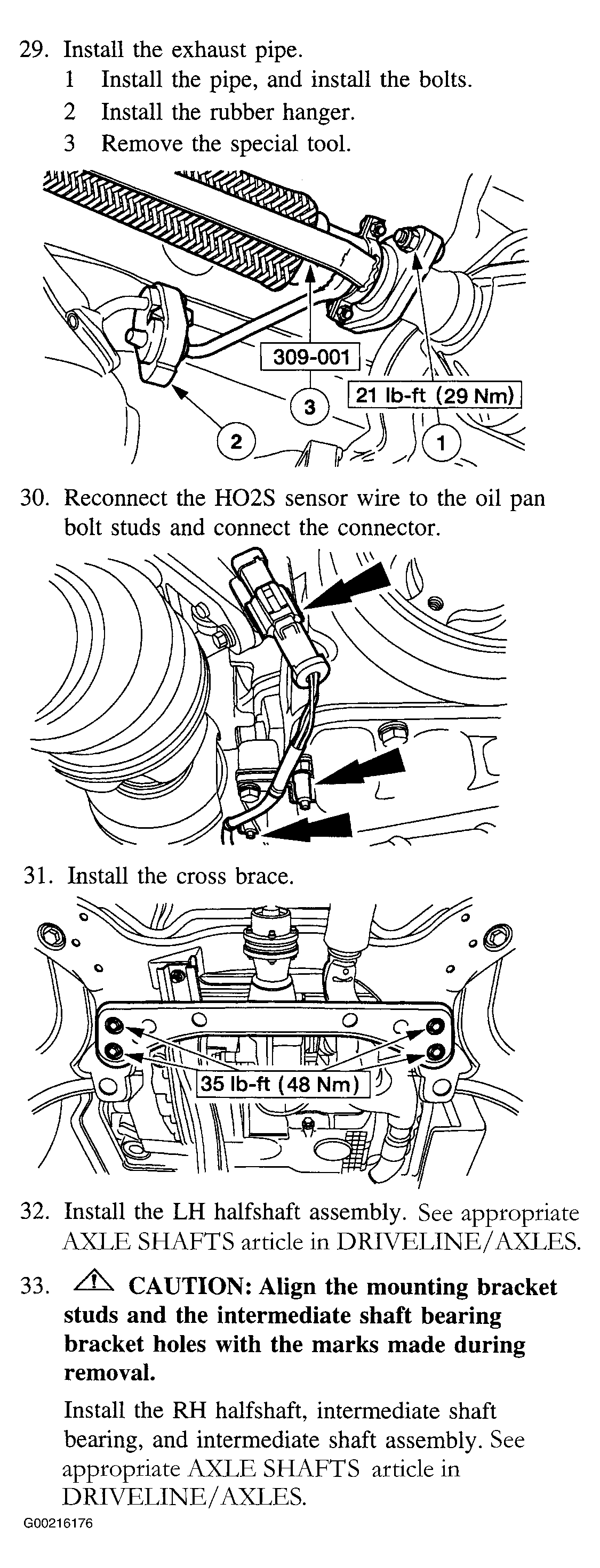

Fig 7: Installing Transaxle (7 Of 15)

Courtesy of FORD MOTOR CO.

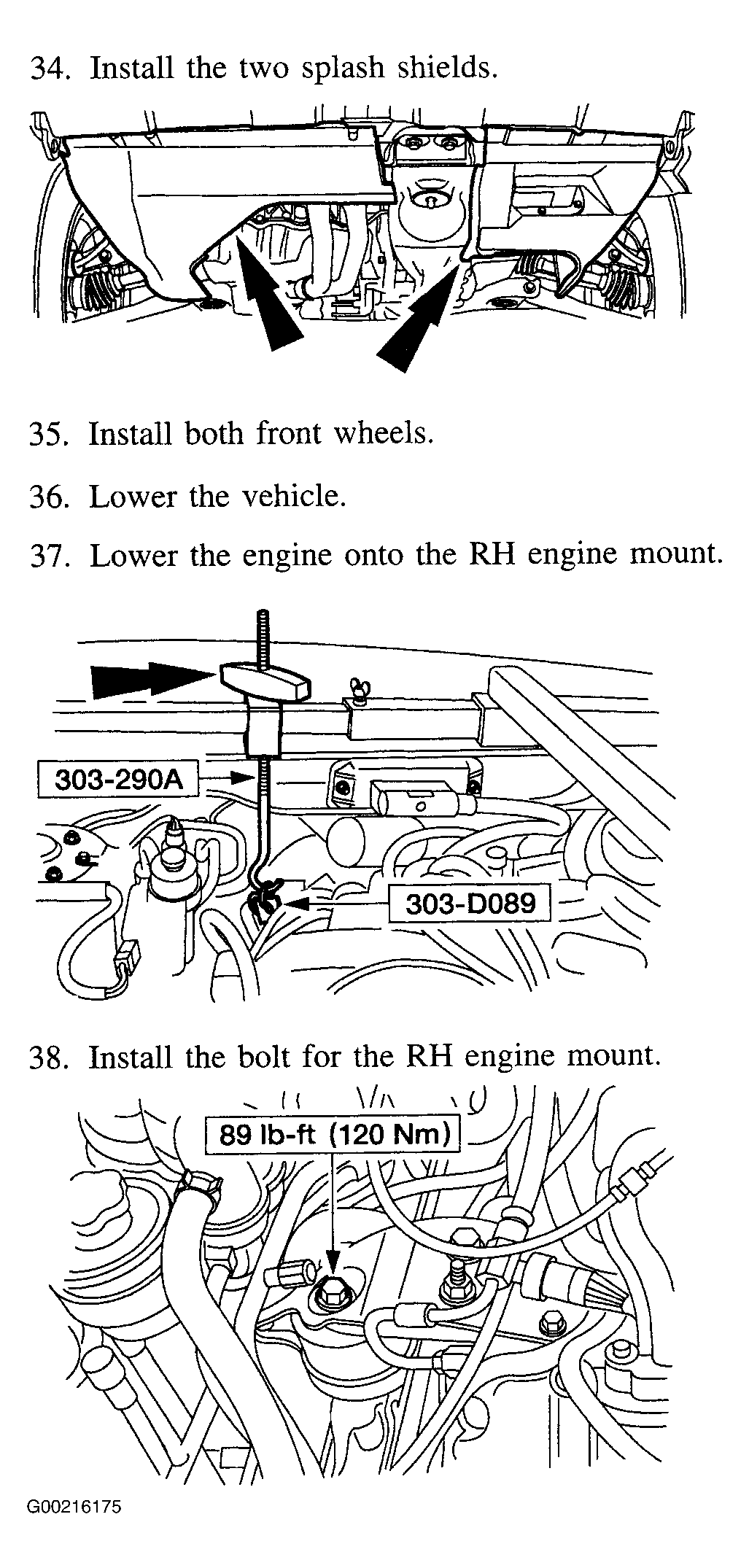

Fig 8: Installing Transaxle (8 Of 15)

Courtesy of FORD MOTOR CO.

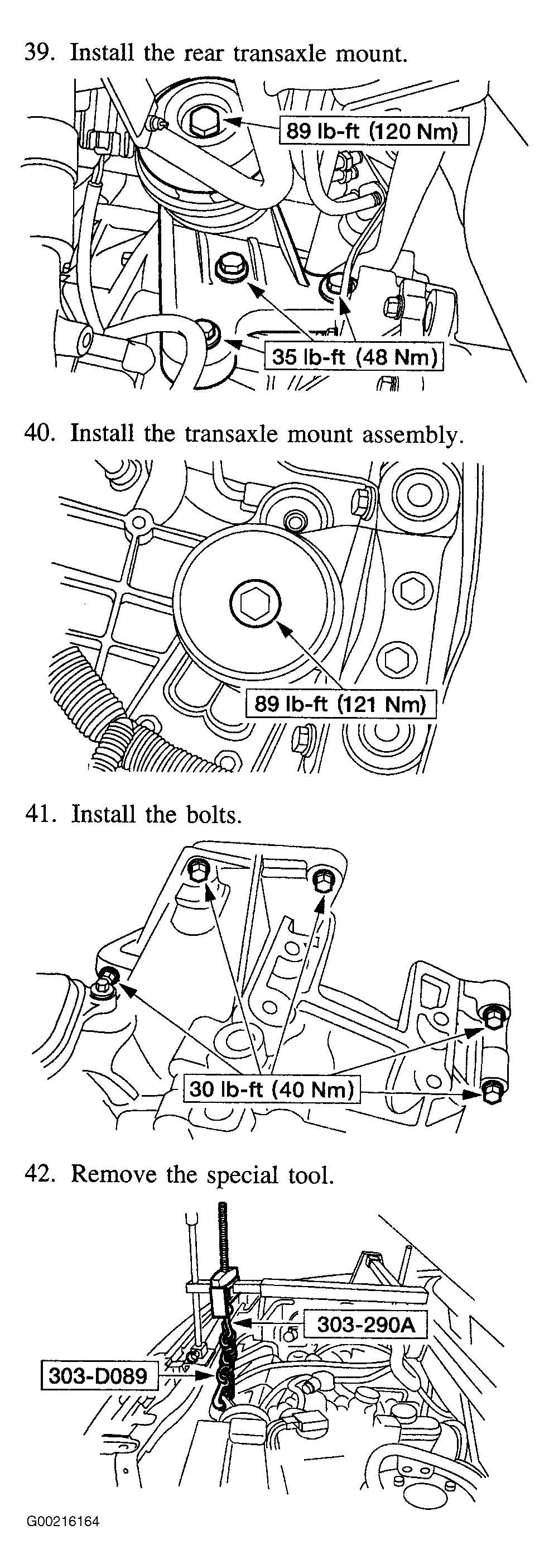

Fig 9: Installing Transaxle (9 Of 15)

Courtesy of FORD MOTOR CO.

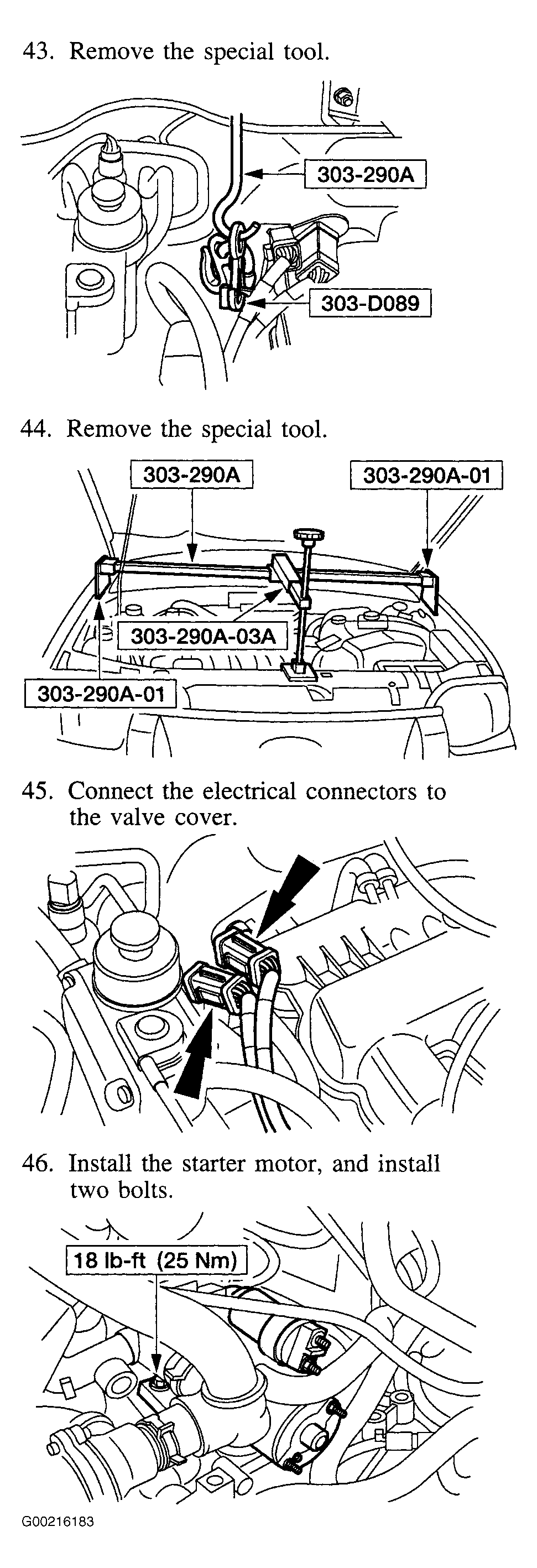

Fig 10: Installing Transaxle (10 Of 15)

Courtesy of FORD MOTOR CO.

Fig 11: Installing Transaxle (11 Of 15)

Courtesy of FORD MOTOR CO.

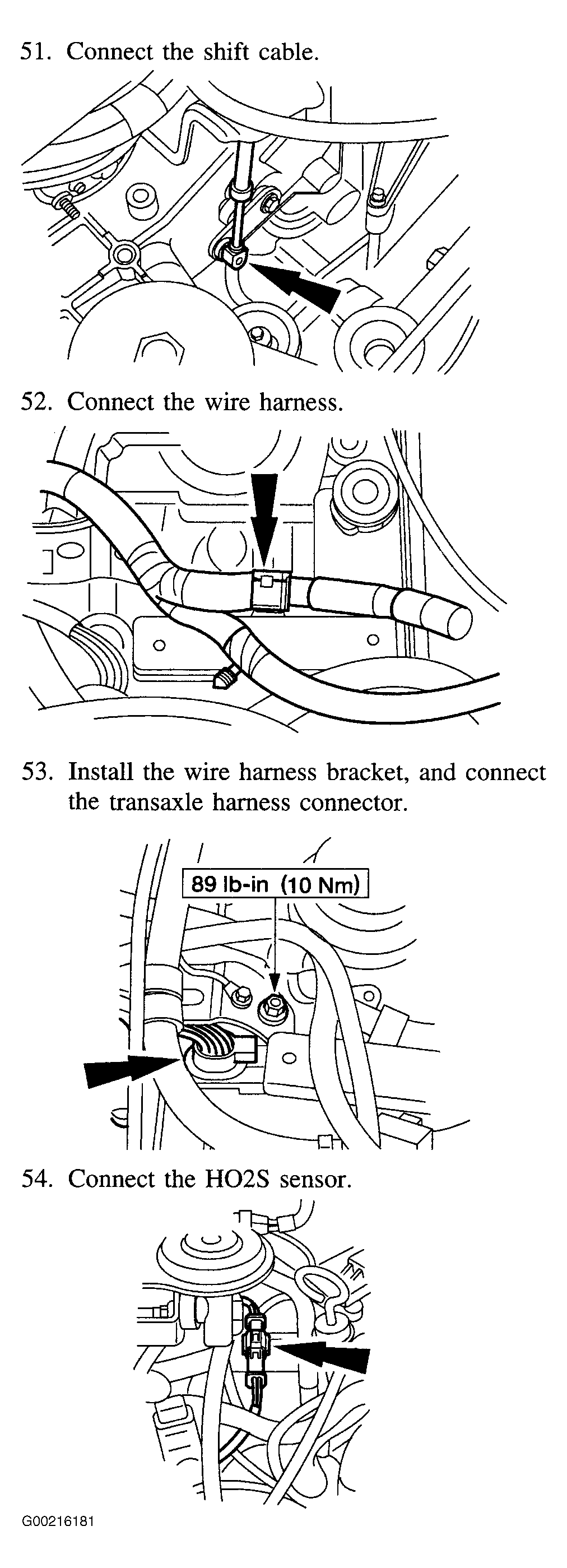

Fig 12: Installing Transaxle (12 Of 15)

Courtesy of FORD MOTOR CO.

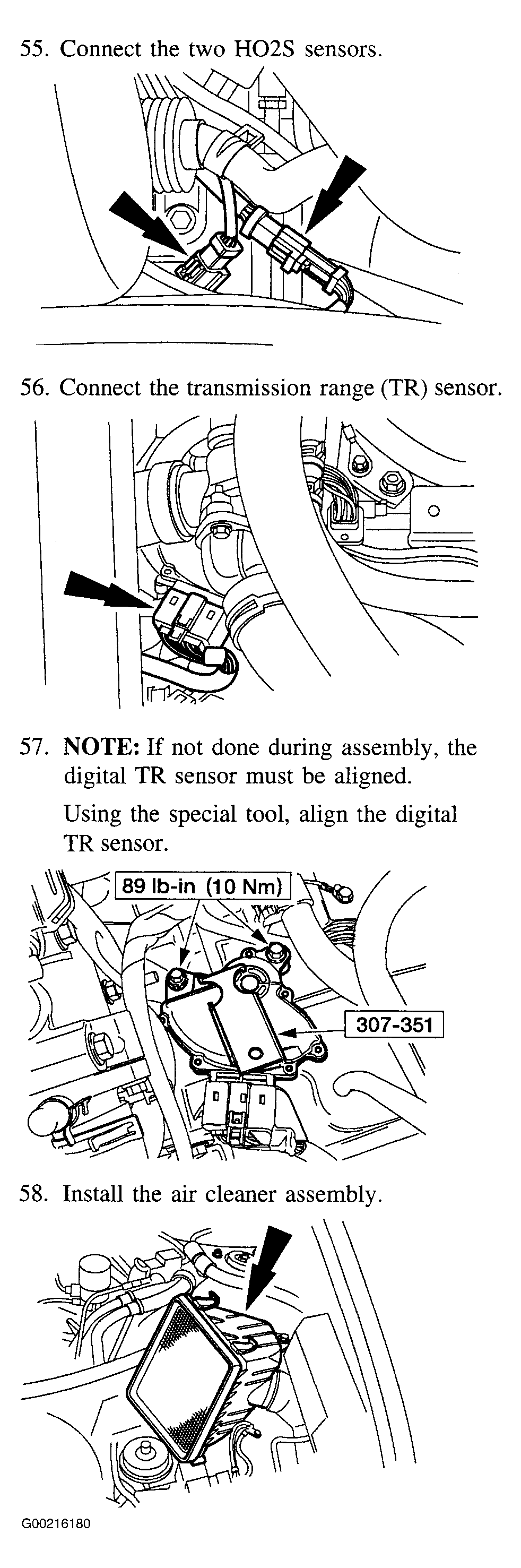

Fig 13: Installing Transaxle (13 Of 15)

Courtesy of FORD MOTOR CO.

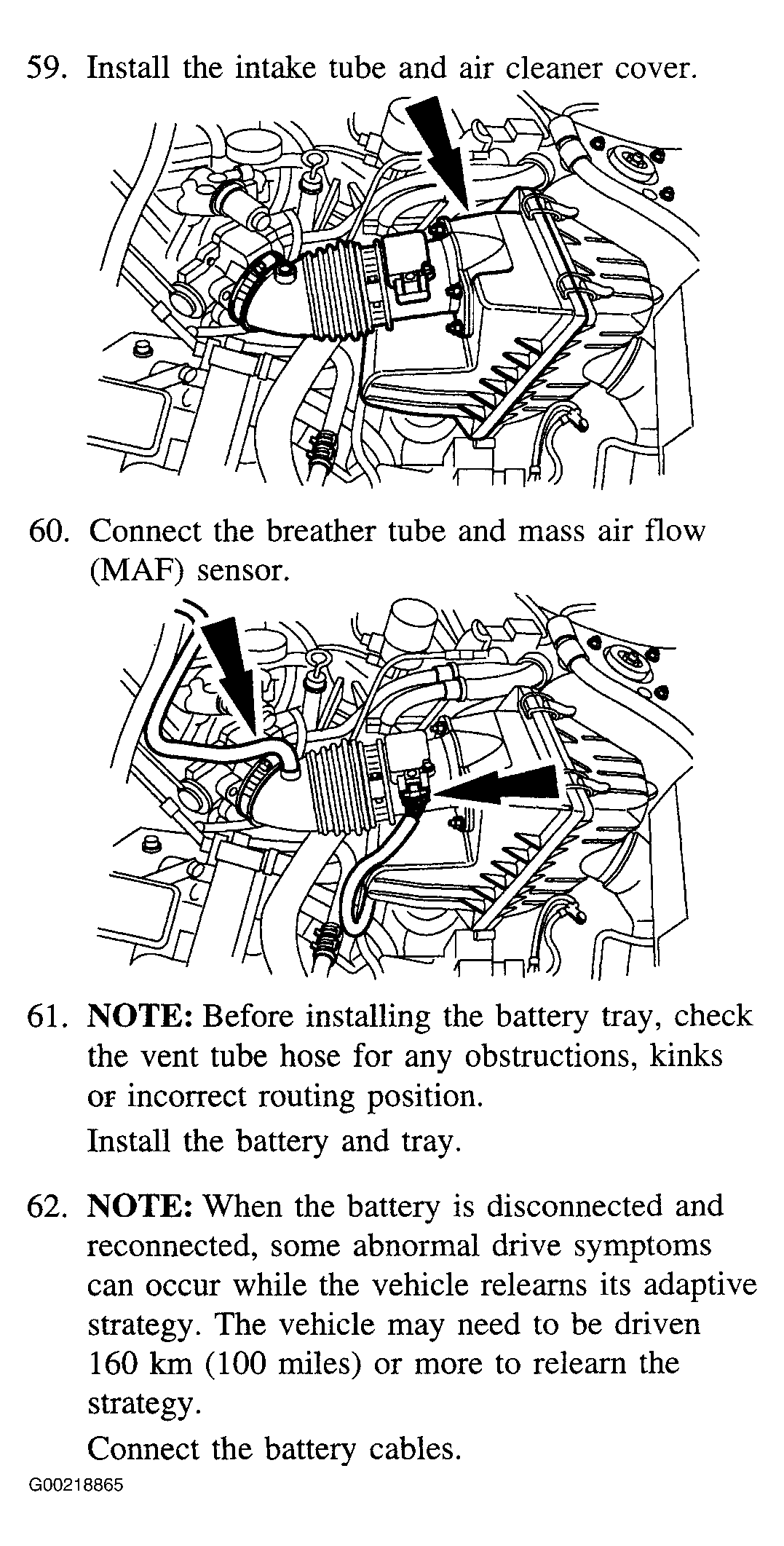

Fig 14: Installing Transaxle (14 Of 15)

Courtesy of FORD MOTOR CO.

Fig 15: Installing Transaxle (15 Of 15)

Courtesy of FORD MOTOR CO.
