Differential Seals - LH: Removal

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: MERCON®, MERCON®V, MERCON®SP, Motorcraft Premium Automatic Transmission Fluid and Motorcraft Continuously Variable Chain Type Transmission Fluid are not interchangeable transmission fluids. The use of any fluid other than what is recommended for this transmission will cause transmission damage.
  1. Remove the LH halfshaft. For additional information, refer to REMOVAL .
  2. Using the special tools, remove the differential fluid seal.

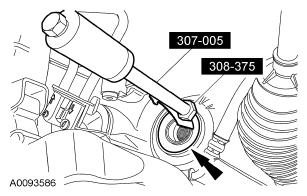

    Fig 1: Removing Differential Fluid Seal Using Special Tools (307-005, 308-375)
    G04656246Courtesy of FORD MOTOR CO.
