Air Conditioning (A/C) Compressor - Hybrid

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

MATERIALS

Item	Specification
PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D	WSH-M1C231-B

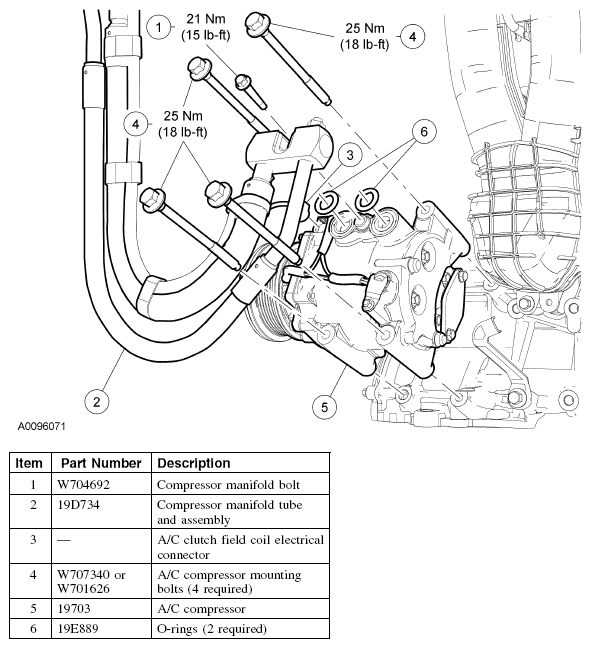

Fig 1: Air Conditioning (A/C) Compressor Replacement Components (Hybrid) With Torque Specifications

Courtesy of FORD MOTOR CO.

CAUTION: If installing a new A/C compressor due to an internal failure of the old unit, carry out the following procedures to remove contamination from the A/C system.

If A/C flushing equipment is available, carry out flushing of the air conditioning system prior to installing a new air conditioning compressor. For additional information, refer to AIR CONDITIONING (A/C) SYSTEM FLUSHING .
If A/C flushing equipment is not available, carry out filtering of the air conditioning system after a new air conditioning compressor is installed. For additional information, refer to REFRIGERANT SYSTEM FILTERING FOLLOWING AIR CONDITIONING (A/C) COMPRESSOR INSTALLATION CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
Install a new evaporator core orifice. For additional information, refer to EVAPORATOR CORE ORIFICE - HYBRID .
Install a new passenger zone valve. For additional information, refer to PASSENGER ZONE VALVE .
Install a new battery zone valve. For additional information, refer to REMOVAL AND INSTALLATION .
Install a new thermostatic expansion valve and filter. For additional information, refer to REMOVAL AND INSTALLATION .
Install a new suction accumulator. For additional information, refer to SUCTION ACCUMULATOR .
Install a new auxiliary thermostatic expansion valve (TXV) filter. The auxiliary TXV filter is located in the auxiliary evaporator inlet line at the auxiliary TXV inlet connection.

NOTE:

Installation of a new suction accumulator is not required when repairing the air conditioning system, except when there is physical evidence of contamination from a failed A/C compressor or damage to the suction accumulator.
If installing a new A/C compressor, the A/C clutch disc and hub, A/C compressor pulley and A/C clutch field coil must be inspected and transferred from the old unit to the new unit if suitable for reuse.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Recover the refrigerant. For additional information, refer to REFRIGERANT SYSTEM RECOVERY .
Remove the drive belt. For additional information, refer to REMOVAL AND INSTALLATION .
Remove the 5 RH lower engine splash shield bolts and 1 pin-type retainer and remove the splash shield.

Fig 2: Locating Splash Shield
Courtesy of FORD MOTOR CO.
Remove the compressor manifold and tube assembly bolt and position the A/C manifold and tube assembly aside.
- Discard the O-rings.
- To install, tighten to 21 N.m (15 lb-ft).
Disconnect the A/C compressor electrical connector.
Remove the 4 A/C compressor mounting bolts and the A/C compressor.
- To install, tighten to 25 N.m (18 lb-ft).
To install, reverse the removal procedure.
- If a new A/C compressor is to be installed, the clutch assembly must be transferred from the old unit to the new unit. For additional information, refer to CLUTCH AND CLUTCH FIELD COIL - HYBRID .
- Install new O-ring seals.
- If not filtering the A/C system, lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, refer to REFRIGERANT OIL ADDING .
Evacuate, leak test and charge the refrigerant system. For additional information, refer to AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
