Removal and Installation
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
- Lift the wiper pivot arm to the full upright position.

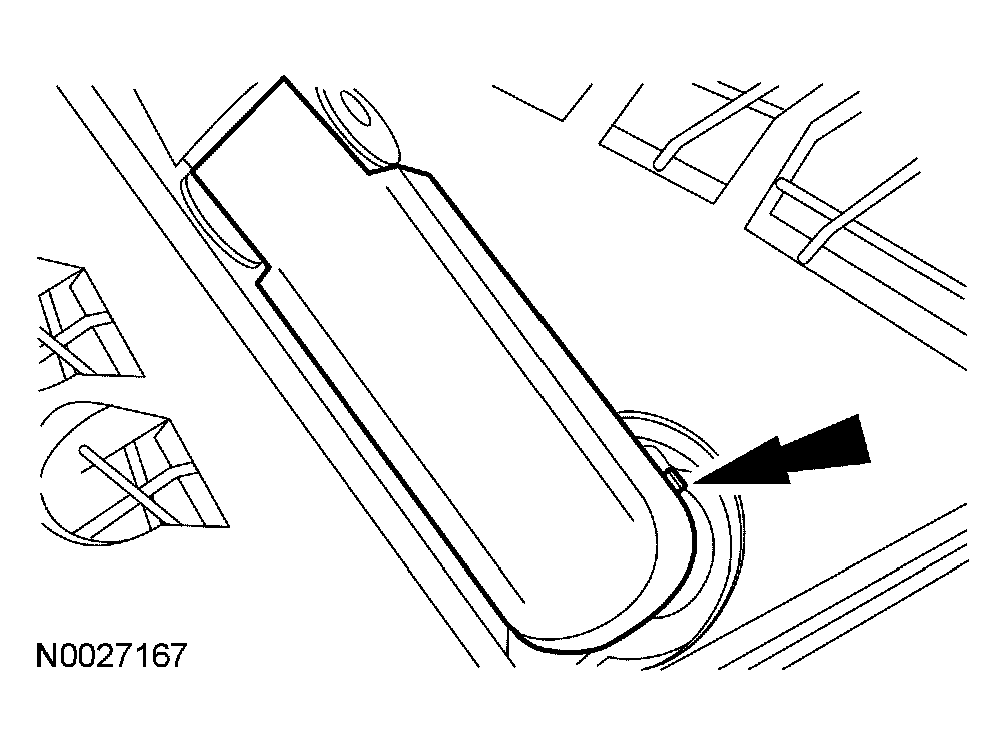

- Release the locking tab and remove the wiper pivot arm.
- To install, reverse the removal procedure.
NOTE:
During installation, it is necessary to pull the locking tab out to its full open (unlatched) position and hold while assembling the pivot arm onto the mounting arm and pivot shaft. Align the key on the pivot arm head with the keyway on the shafts. This makes sure the pivot arm is correctly aligned. If necessary, the keyway can be removed. To adjust the wiper pivot arms, refer to WIPER BLADE AND PIVOT ARM ADJUSTMENT .
