Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER .
Remove the 7 screws and the instrument cluster shield.

Fig 1: Removing 7 Screws And Instrument Cluster Shield
Courtesy of FORD MOTOR CO.

NOTE: To remove the warning indicator bulbs, rotate the bulb one quarter turn counterclockwise and lift it out from the instrument cluster.

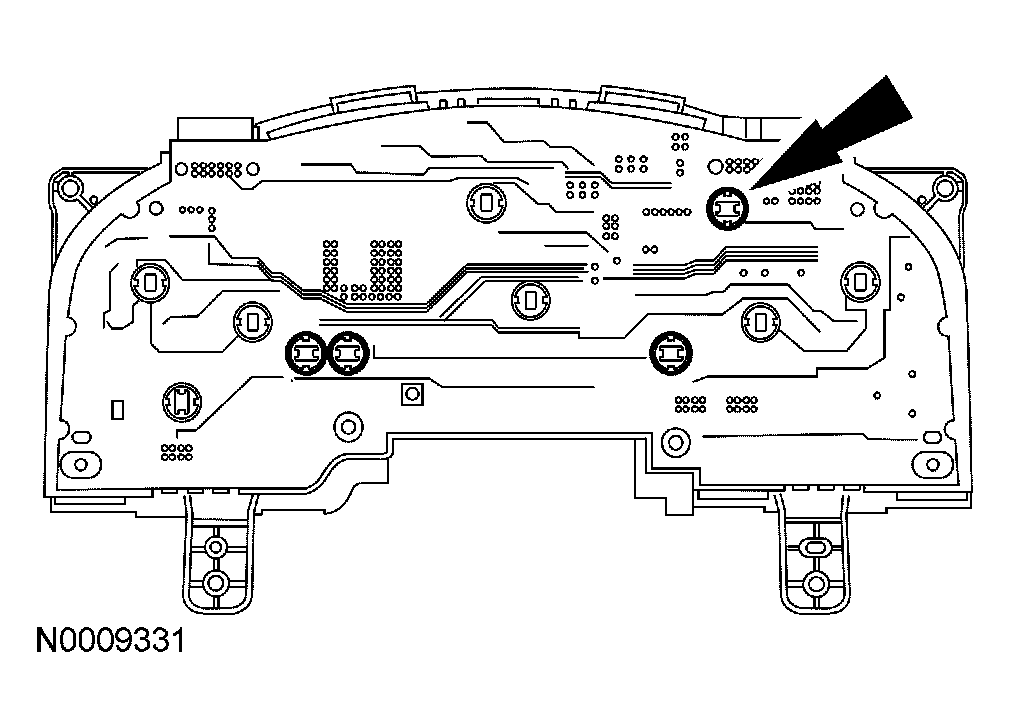

Fig 2: Removing Warning Indicator Bulb(S) In Question

Courtesy of FORD MOTOR CO.

Remove the warning indicator bulb(s) in question.
To install, reverse the removal procedure.
