Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

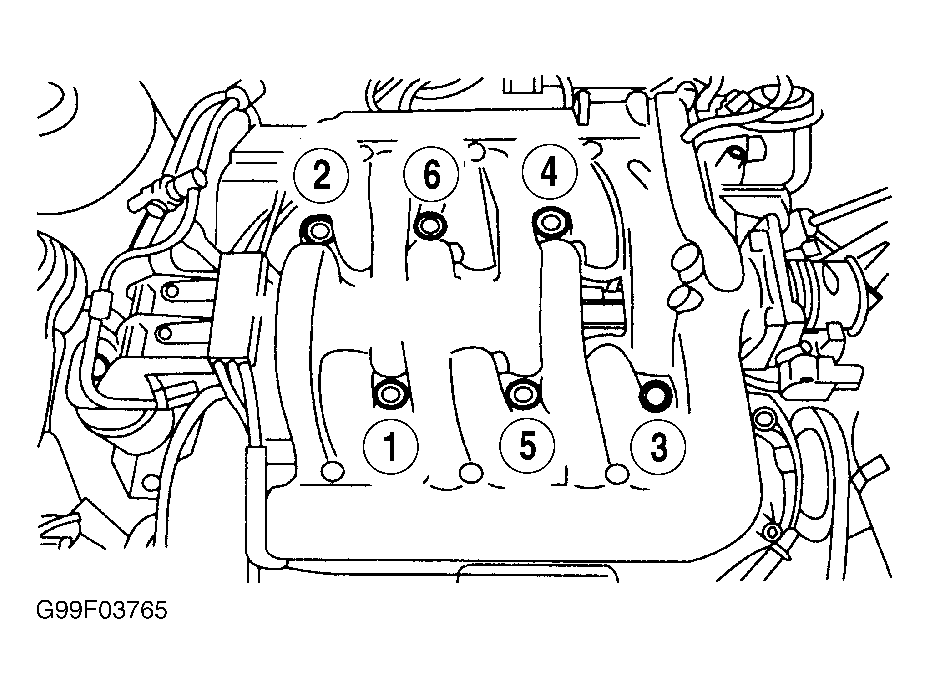

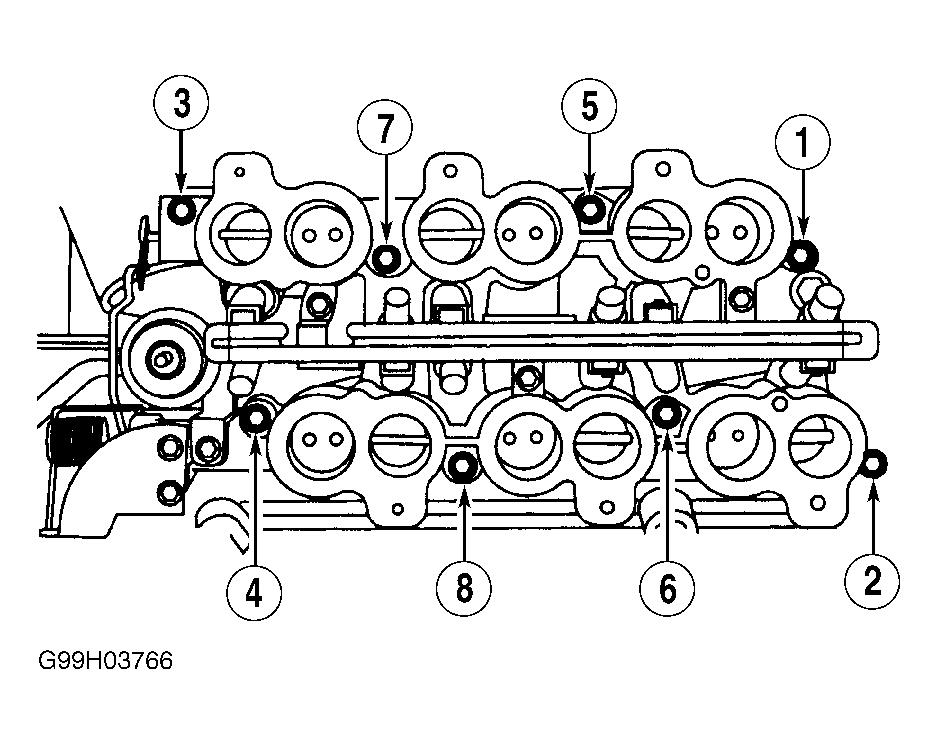

Clean gasket mating surfaces. To complete installation, reverse removal procedure. Use NEW upper and lower manifold gaskets. Tighten bolts in reverse order of loosening sequence. See Figure and Figure . Install and tighten bolts to specification. See TORQUE SPECIFICATIONS .
