Torque Specifications
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| A/C Compressor Bolt |
18 (24) |
| Axle Shaft Bracket-To-Cylinder Block Bolt |
20 (27) |
| Camshaft Rear Oil Seal Retainer Bolts |
|
| Clutch Release Cylinder Nut |
7-14 (9-19) |
| Connecting Rod Bolt |
| Step 1 |
17 (23) |
| Step 2 |
32 (43) |
| Step 3 |
Additional 90 Degrees |
| Coolant Outlet Bolt |
15-22 (20-30) |
| Crankshaft Pulley Bolt |
| Step 1 |
89 (120) |
| Step 2 |
Loosen Bolt 360 Degrees |
| Step 3 |
37 (50) |
| Step 4 |
Additional 90 Degrees |
| Crankshaft Bolts |
| Stage 1 (Bolts 1-8) |
18 (24) |
| Stage 2 (Bolts 9-16) |
30 (40) |
| Stage 3 (Bolts 1-8) |
Additional 90 Degrees |
| Stage 4 (Bolts 17-22) |
18 (24) |

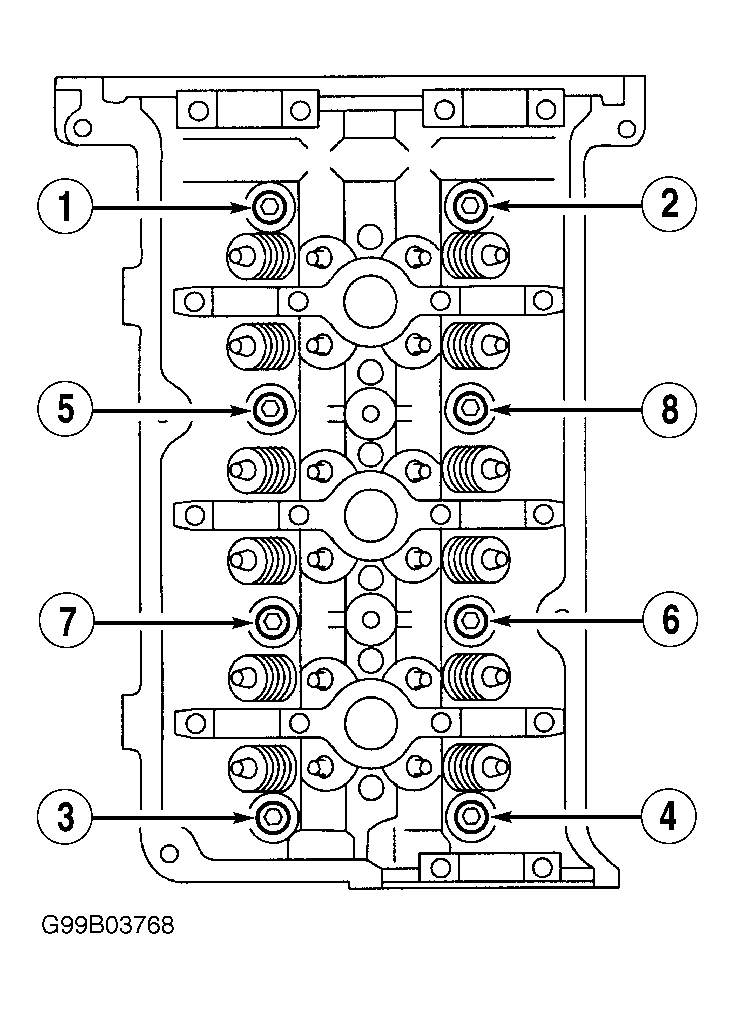

| Cylinder Head Bolt |
| Step 1 |
30 (40) |
| Step 2 |
Additional 90 Degrees |
| Step 3 |
Loosen Bolt 360 Degrees |
| Step 4 |
30 (40) |
| Step 5 |
Additional 90 Degrees |
| Step 6 |
Additional 90 Degrees |
| EGR Valve Bolt |
18 (24) |
| Engine Front Support Insulator Bolts |
61 (83) |
| Engine Rear Support Insulator Bolts |
61 (83) |
| Engine-To-Transaxle Bolts |
30 (40) |
| Exhaust Manifold Nut |
| Front |
16 (21) |
| Rear |
15 (20) |
| Exhaust Pipe-To-Exhaust Manifold Nut |
26-33 (35-45) |
| Flywheel Bolt |
59 (80) |
| Front Cover Bolts/Studs |
18 (24) |
| Front Subframe-To-Body Bolts |
96 (130) |
| Fuel Rail Bolt |
|
| Generator Bolt |
37 (50) |
| Generator Mounting Bracket Bolts |
18 (24) |
| Lower Intake Manifold Bolt |
|
| Oil Pan Bolt |
18 (24) |
| Oil Pan-To-Transaxle Bolt |
30 (40) |
| Power Steering Pump Bolts |
18 (24) |
| Power Steering Pump Bracket Bolts |
35 (48) |
| Power Steering Pump Bracket Nut |
|
| Power Steering Pump Pulley Bolts |
18 (24) |
| Shift Rod Bolt |
17 (23) |
| Spark Plug |
12 (16) |
| Stabilizer Bar Link Nut |
35 (48) |
| Steering Shaft Pinch Bolt |
18 (24) |
| Tie Rod Nut |
21 (28) |
| Timing Chain Guide Bolt |
18 (24) |
| Timing Chain Tensioner Bolt |
18 (24) |
| Torque Converter Nut |
27 (37) |
| Water Pump Bolt |
| Stage 1 |
|
| Stage 2 |
Additional 90 Degrees |
| Water Pump Drive Belt Tensioner |
|
| Wheel Lug Nut |
94 (127) |
| INCH Lbs. (N.m) |

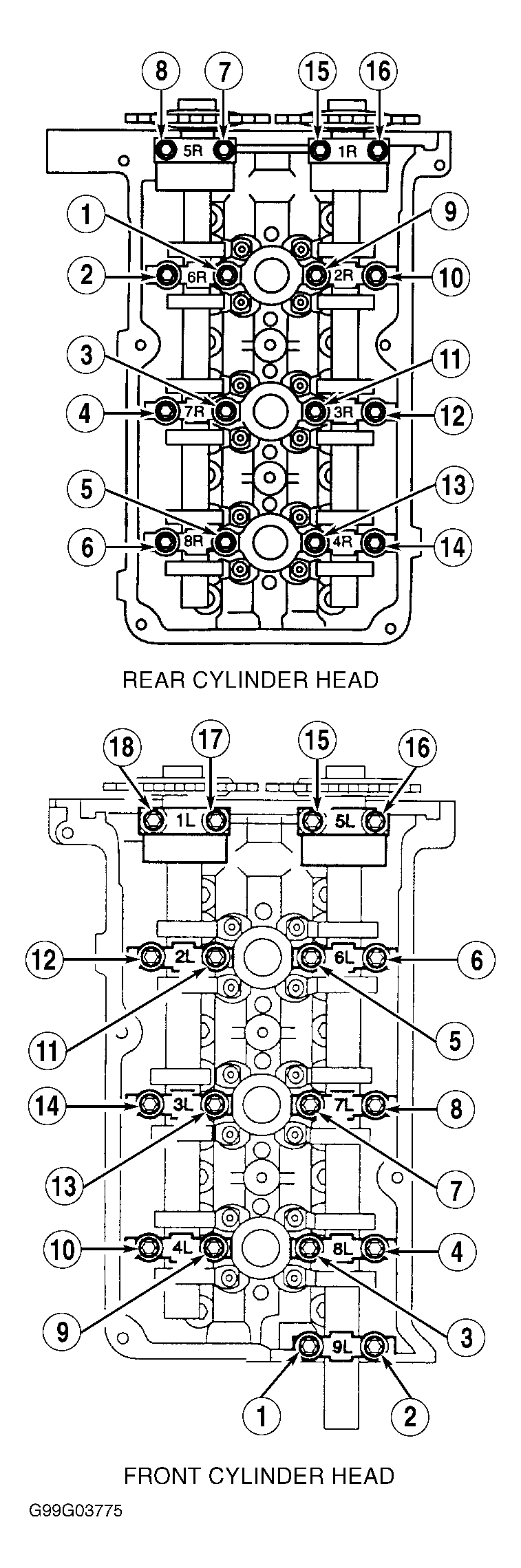

| Camshaft Bearing Cap Bolt |
89 (10) |
| Camshaft Position Sensor Bolt |
89 (10) |
| Crankshaft Position Sensor Bolt |
89 (10) |
| Oil Baffle Bolts |
3.6 (5) Then Additional 45 Degrees |
| Oil Pump Bolt |
89 (10) |
| Throttle Body Bolts & Studs |
53 (6) |
| Upper Intake Manifold |
89 (10) |

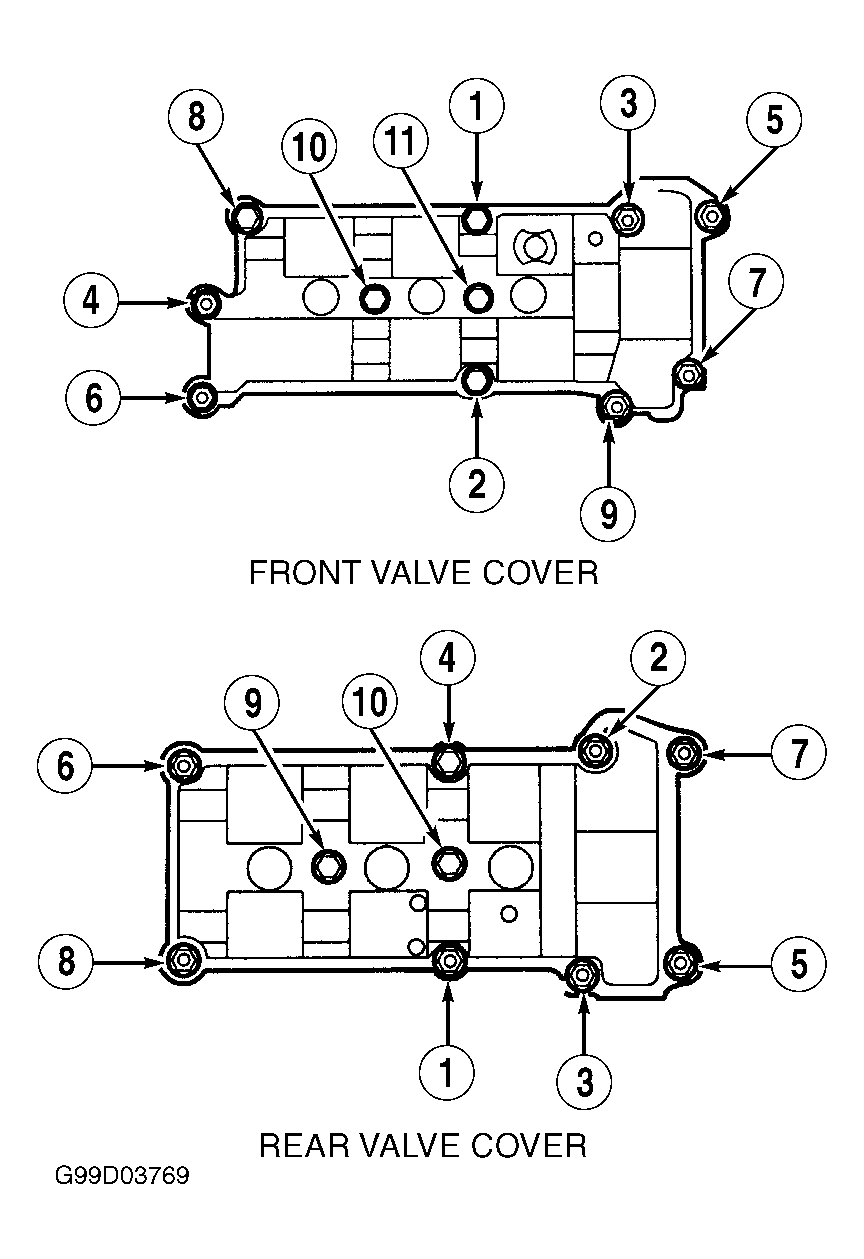

| Valve Cover Bolt |
89 (10) |
| Water Pump Pulley Bolt |
89 (10) Then Additional 90 Degrees |
