Front Cover: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Before installing front cover and NEW gasket, apply sealant at specified areas on cylinder block. See Fig 1. Install front cover bolts/studs in locations shown, and tighten 1/4 turn after front cover contacts cylinder block. Complete front cover tightening procedure following sequence shown. See Fig 2. Tighten to specification. See TORQUE SPECIFICATIONS .

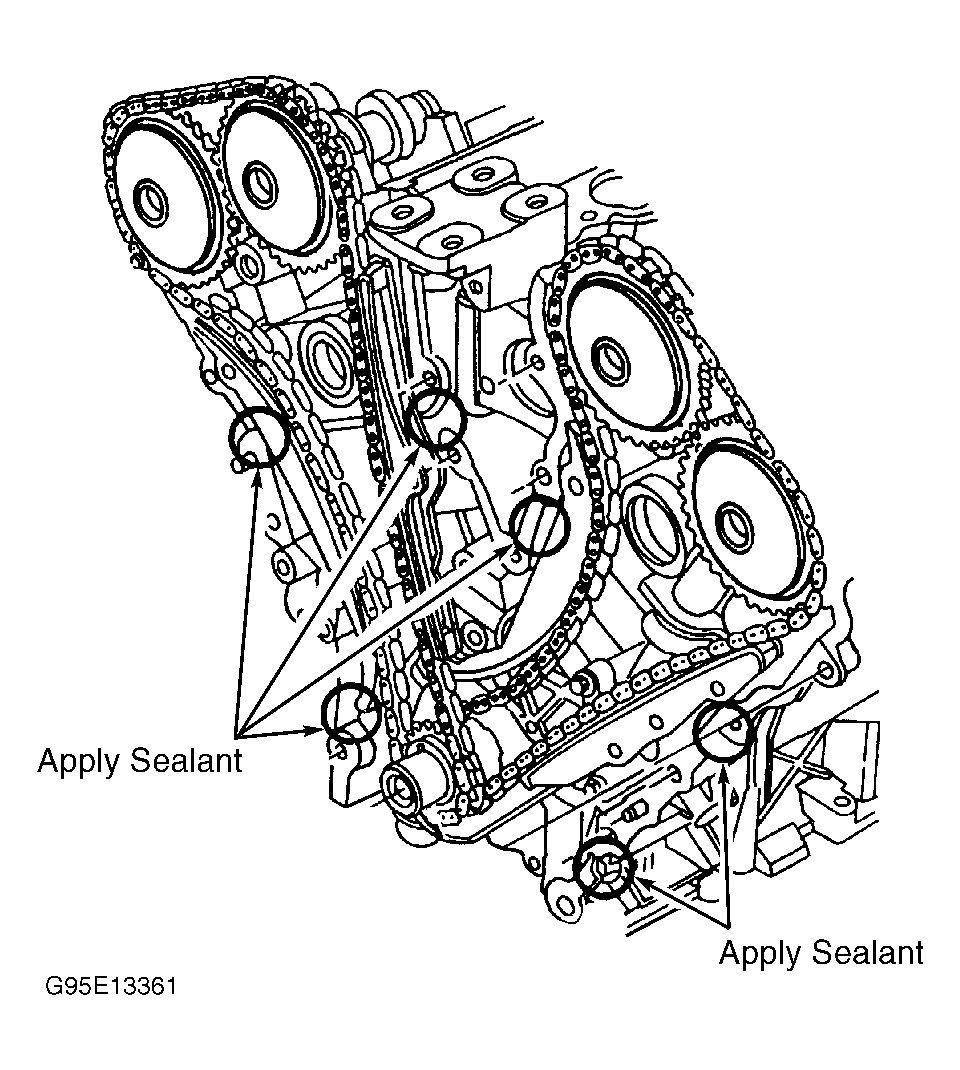

    Fig 1: Applying Sealant To Cylinder Block
    G95E13361Courtesy of FORD MOTOR CO.

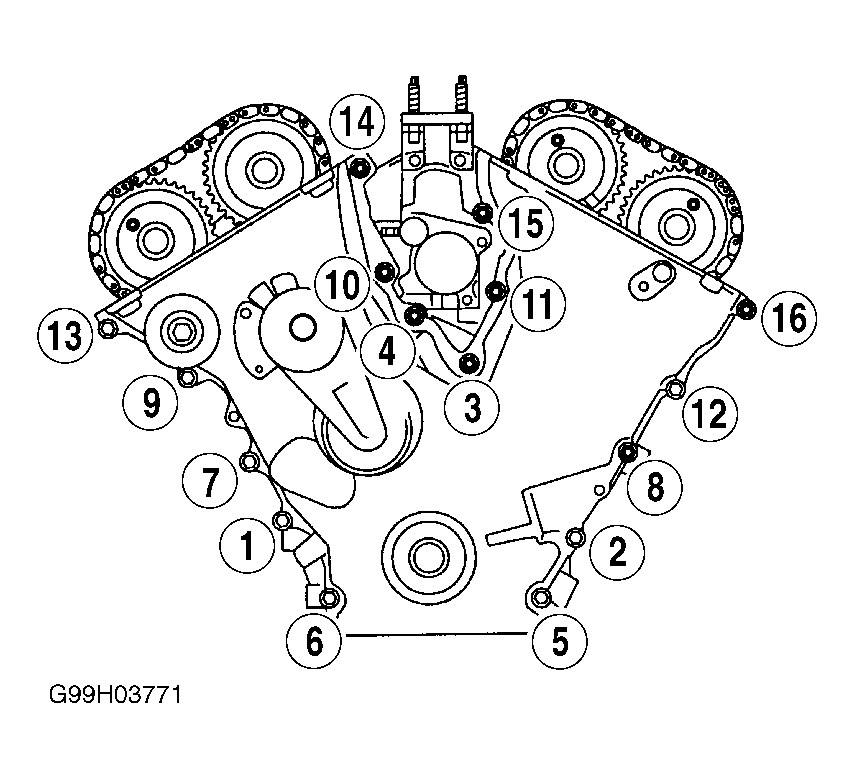

    Fig 2: Front Cover Bolt/Stud Tightening Sequence
    G99H03771Courtesy of FORD MOTOR CO.
  2. To complete installation, reverse removal procedure. Tighten remaining bolts/nuts to specification. See TORQUE SPECIFICATIONS . Fill crankcase with oil. Check all fluid levels. Start engine, and check for leaks.
