Installation (Front & Rear)
WARNING: This page is about a different variant/trim than selected.

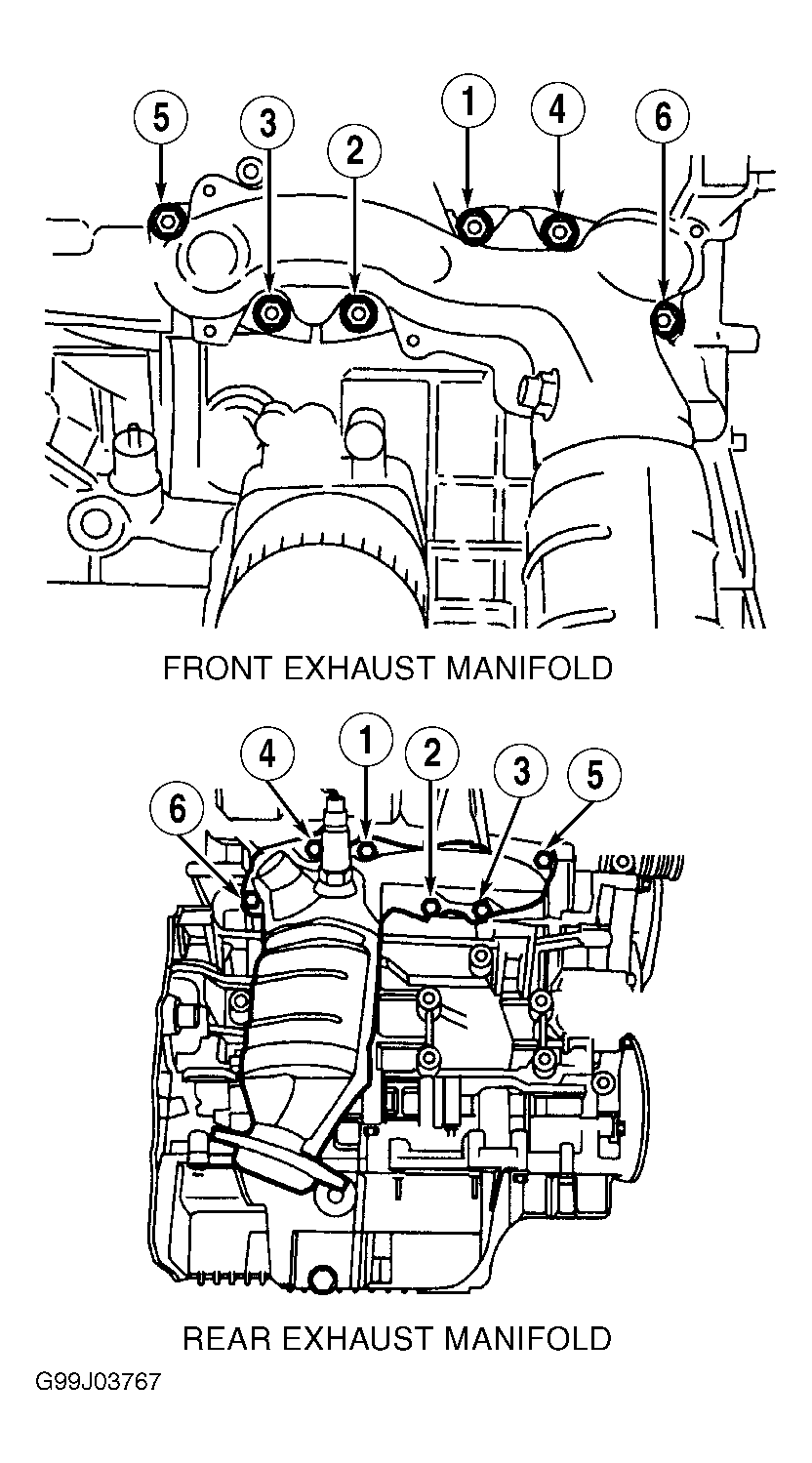

Clean gasket mating surfaces. Install NEW gasket. Position exhaust manifold on cylinder head studs. Tighten manifold nuts following sequence shown. See Fig 1. Tighten nuts to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
