Piston Rings
WARNING: This page is about a different variant/trim than selected.

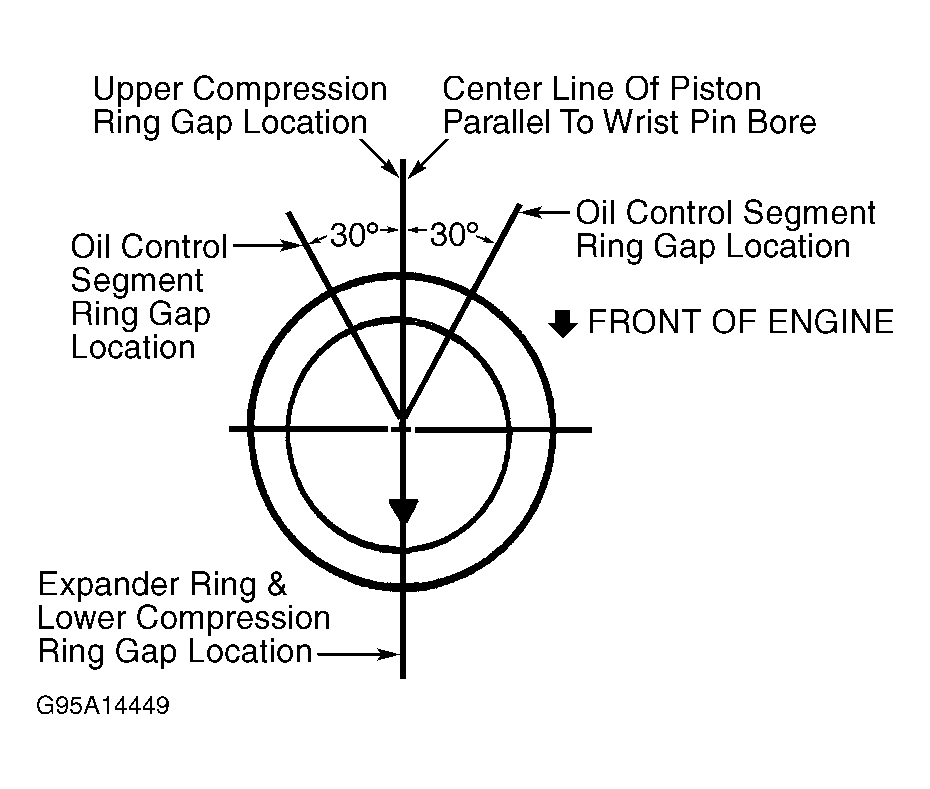

Ensure piston ring end gap and side clearance are within specification. See PISTONS, PINS & RINGS table under ENGINE SPECIFICATIONS. Position piston ring gaps in proper areas. See Fig 1.
