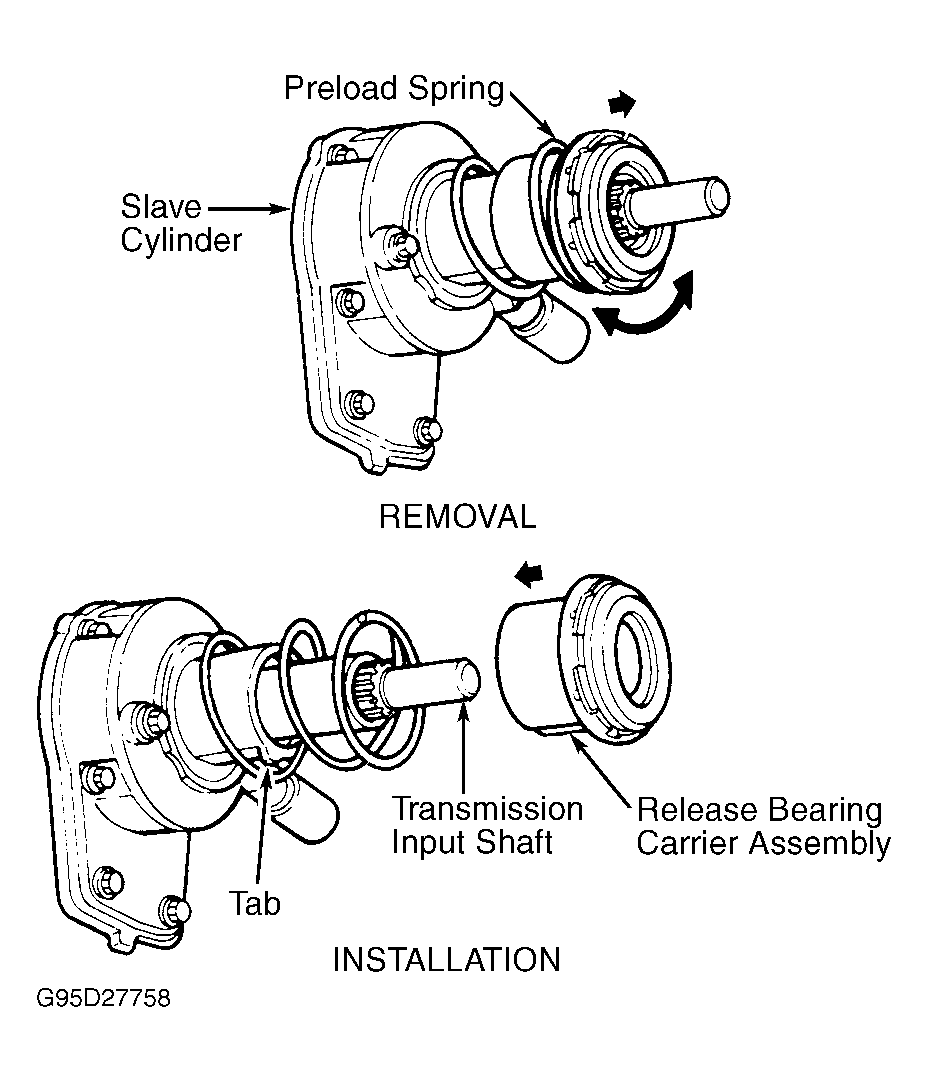

Internal (Concentric) Clutch Slave Cylinder & Release Bearing: Installation
WARNING: This page is about a different car, the 1996 Ford Ranger, 1996 Ford Pickup, 1996 Ford F-Super Duty, 1996 Ford Explorer, and 1996 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.
Prior to installation, lubricate bearing bore and bearing carrier with multipurpose grease. On clutch release hub, polish any scoring or burrs with fine grade of emery paper. To complete installation, reverse removal procedure. Bleed THE clutch hydraulic system. See HYDRAULIC SYSTEM BLEEDING . Tighten retaining bolts to specification. See appropriate TORQUE SPECIFICATIONS ("F" PICKUP) or TORQUE SPECIFICATIONS (EXPLORER & RANGER) .
