Section 129 (Engine Controls - Tests W/Codes - EEC-V (2.3L))
>>
Diagnostic Trouble Code (DTC) Reference Charts
>>
DTC Reference Chart 2 (Code P0704-P1354)
DTC Reference Chart 2 (Code P0704-P1354)
WARNING:
This page is about a different car, the 1995 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

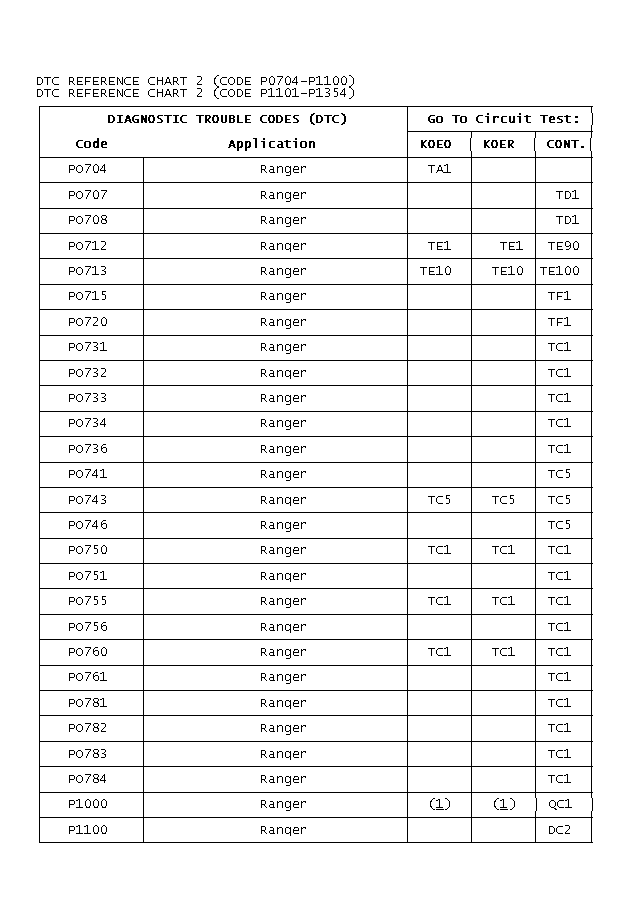

Fig 1: DTC REFERENCE CHART 2 (CODE P0704-P1100)

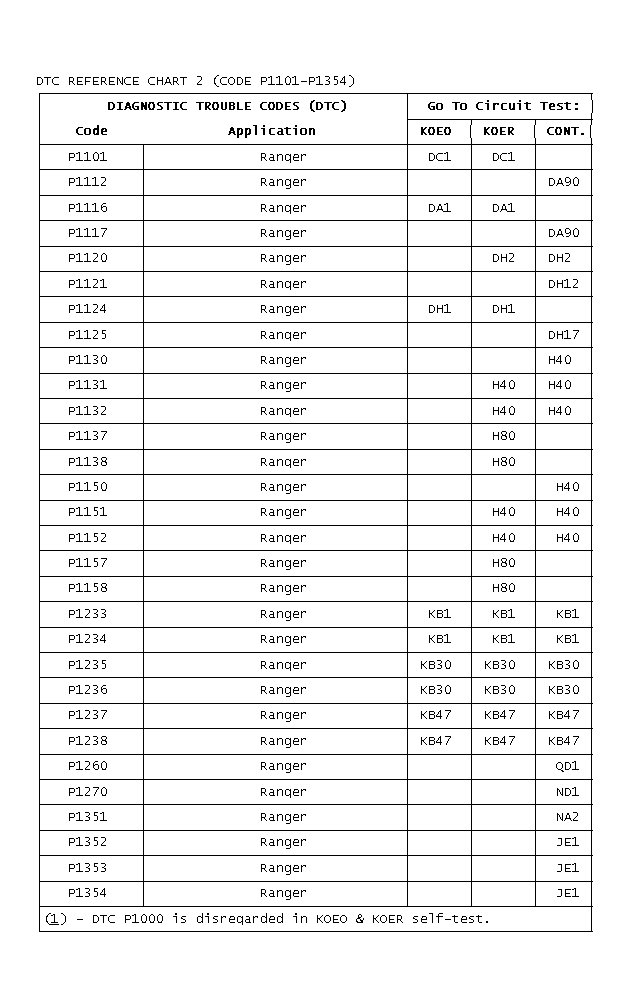

Fig 2: DTC REFERENCE CHART 2 (CODE P1101-P1354)
