Oil Pan: Installation
- To install, reverse removal procedure. Apply silicone sealant on front cover and seal retainer-to-cylinder block areas before installing gasket and oil pan.

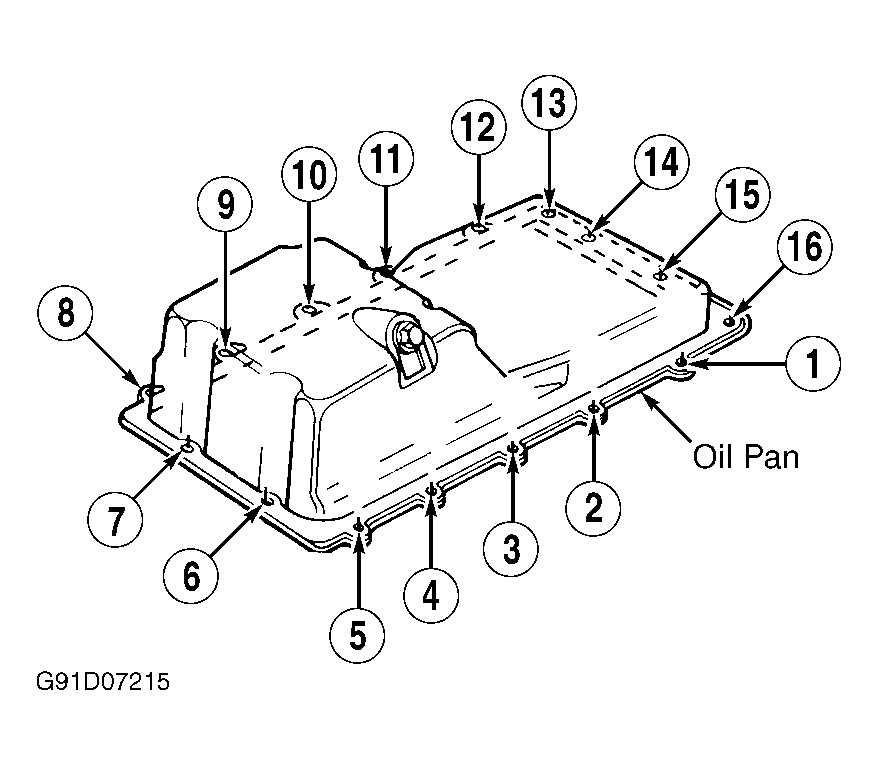

- Tighten all bolts to specification in sequence. Refer to Fig 1. See TORQUE SPECIFICATIONS table at end of article.
Courtesy of FORD MOTOR CO.
- When installing fuel lines, install new "O" rings on fuel lines. Use only specified fuel resistant "O" rings (Brown in color). Lightly coat "O" rings with clean engine oil before installing. Clean fittings and replace garter spring (if necessary).
- Adjust all control cables and fluid levels. Fill cooling system with Ford Coolant (E2FZ-19549-AA). Evacuate and recharge A/C system.
