Vehicle Riding Height

  1. Measure vehicle riding height from top of axle housing tube to axle bumper bracket on frame rail for Mark VII and Mustang models.
  2. On all other models, measure from top of axle housing to outer edge of frame rail. See Fig 1 . Adjust riding height if not within specification. See UNIVERSAL JOINT ANGLE & RIDING HEIGHT SPECIFICATIONS  table.

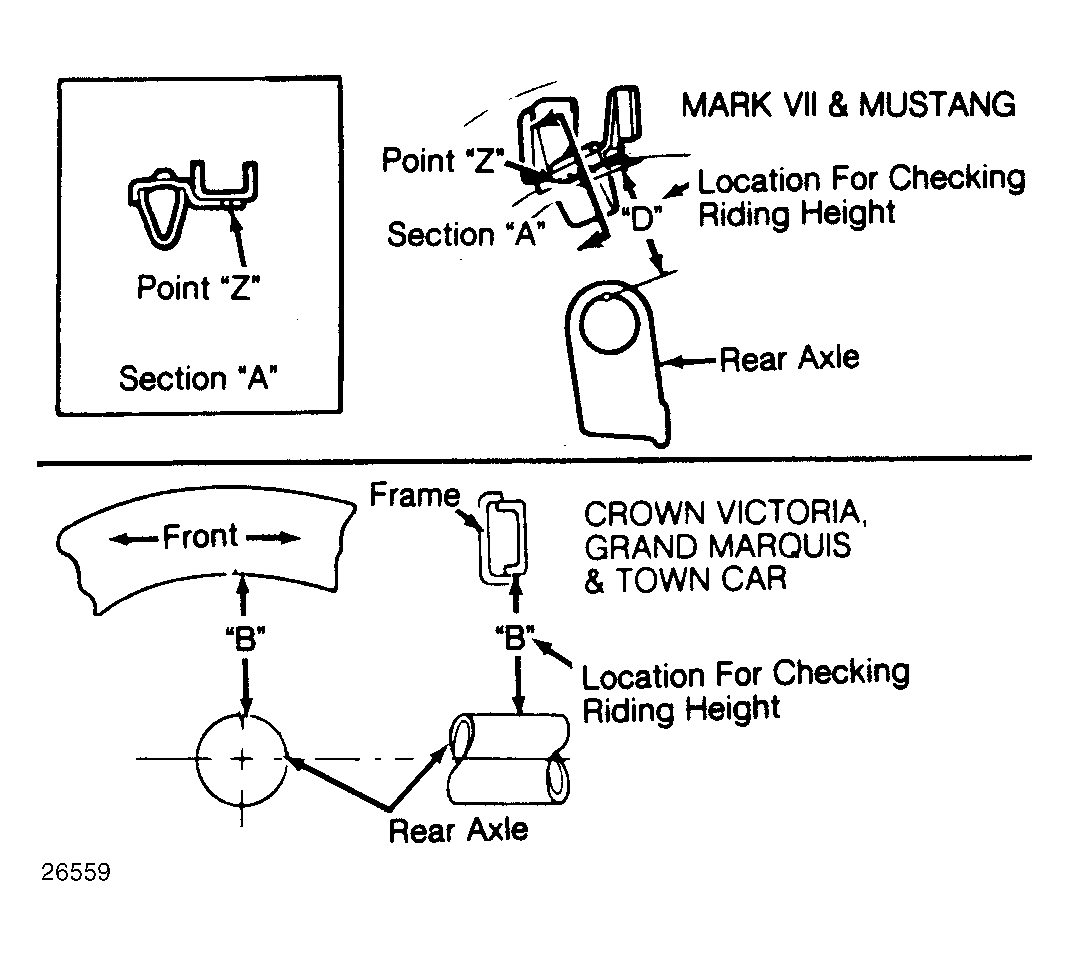

    Fig 1: Measuring Coil Spring Suspension Riding Height
    G26559Courtesy of FORD MOTOR CO.
