Rear Suspension Riding Height

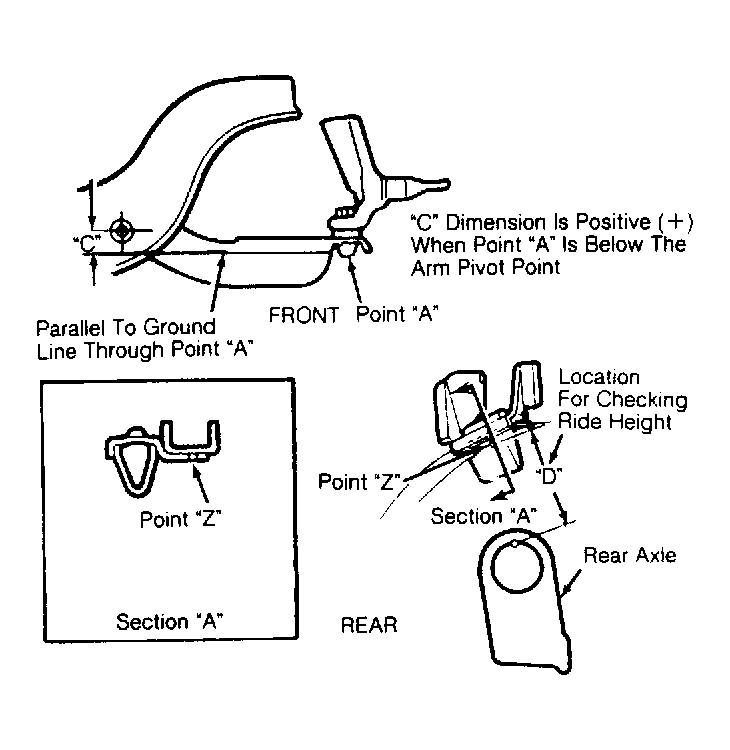

  1. Measure riding height from top of axle housing tube to axle bumper bracket on frame rail. See Figure . Riding height should be within specification. See UNIVERSAL JOINT ANGLE & RIDING HEIGHT SPECIFICATIONS  table.
  2. If adjustment is required, loosen rear height sensor bracket nut, and move bracket up or down. See Fig 1 . Moving bracket one index mark will change dimension riding height approximately 1/4" (6 mm).
    Fig 1: Adjusting Air Suspension Rear Riding Height
    G26160Courtesy of FORD MOTOR CO.
