Reinforcement, Bumper, Front: Installation

Courtesy of CHRYSLER GROUP, LLC

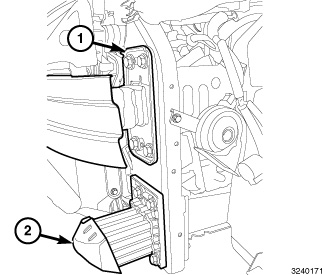

1. Position the lower bumper reinforcement (2) to the frame/front end module.
2. Install the fasteners securing the lower bumper reinforcement (2) to the frame/front end module. Tighten the fasteners to 45 N.m (33 ft. lbs.). If necessary, repeat on the opposite side.
3. Position the upper bumper reinforcement (1) to the frame/front end module.
4. Install the fasteners securing the upper bumper reinforcement (1) to the frame/front end module. Tighten the fasteners to 45 N.m (33 ft. lbs.). If necessary, repeat on the opposite side.
5. Install the front fascia, Refer to FASCIA, FRONT, INSTALLATION  .
