Panel, C-Pillar Trim: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the rear shelf panel (3). Refer to PANEL, REAR SHELF, REMOVAL .
Remove the cargo floor cover. Refer to COVER, CARGO FLOOR, REMOVAL .
Tilt the rear seats fully forward.

Courtesy of CHRYSLER GROUP, LLC

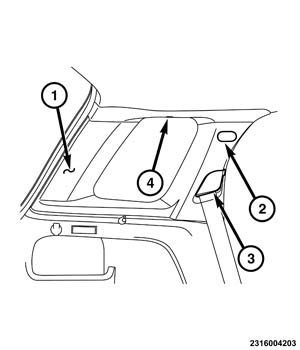

Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the seat belt cover (3) from the C-pillar trim (1).
Remove the push pin retainer (4) from the top of the C-pillar trim (1).
With the use of a small flat bladed or pick tool, remove the fastener cover (2).

Courtesy of CHRYSLER GROUP, LLC

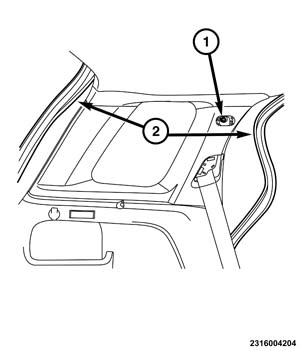

Remove the fastener (1).
Partially remove the weatherstrip seals (2) from the rear door and liftgate opening along the C-pillar trim perimeter.

Courtesy of CHRYSLER GROUP, LLC

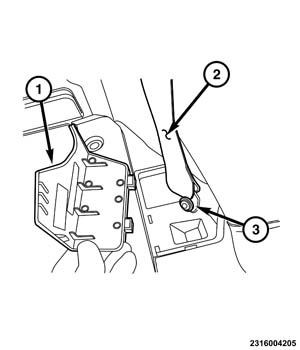

Remove the seat belt anchor cover (1).
Remove the seat belt fastener (3).
With the use of Trim Stick (special tool #C-4755, Trim Stick) or equivalent, release the C-pillar trim retaining clips.
Route the seat belt (2) through the opening on the C-pillar trim.
Remove the C-pillar trim from the vehicle.
