Panel, Rear Shelf: Removal

GC0158802Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear shelf (2) support ends (1) from the studs on the liftgate.

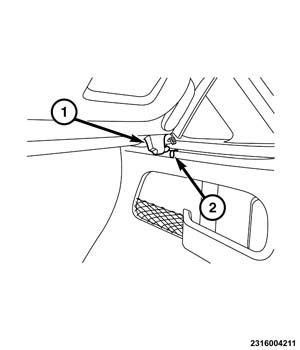

    GC0158668Courtesy of CHRYSLER GROUP, LLC
  2. Lift the rear shelf retainer (1) out of the quarter trim panel groove (2).
  3. Repeat on the opposite side.
  4. Remove the rear shelf from the vehicle.
